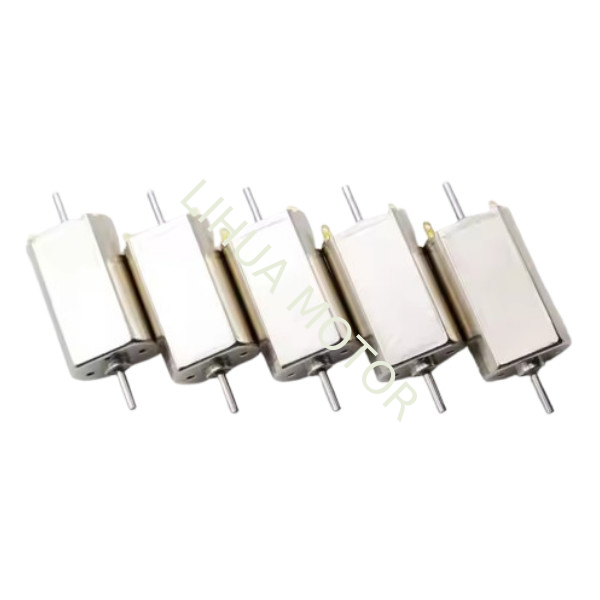

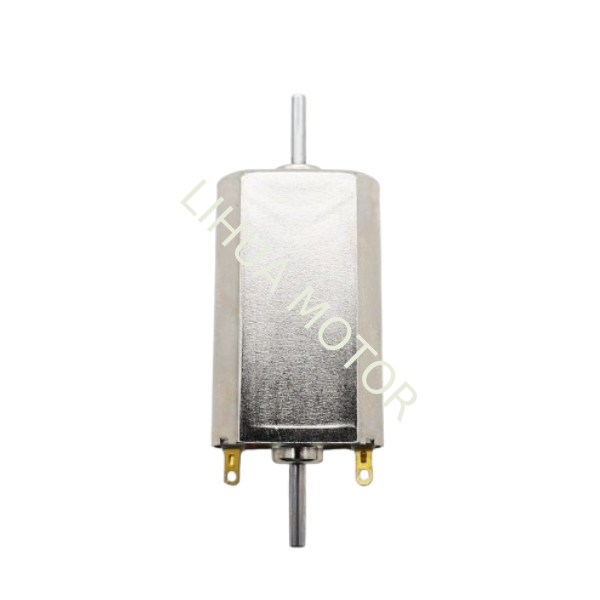

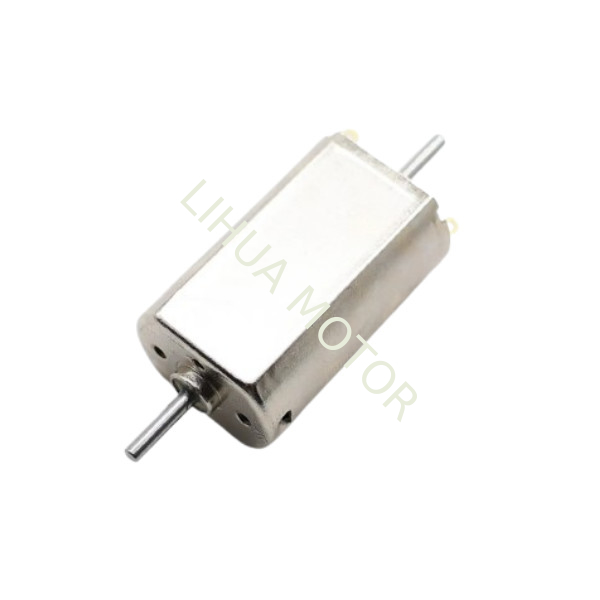

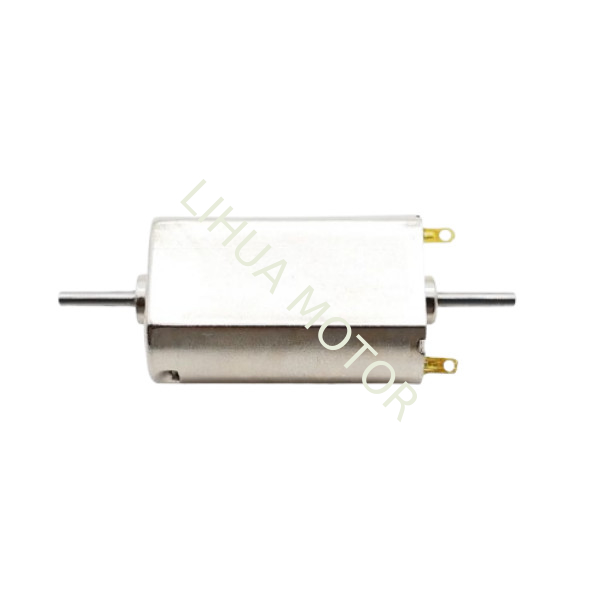

20mm 180 Double Shaft Motor 12v DC Mini Electric Brush DC Micro Motor

Highlight

180 Double Shaft Motor
,
Double Shaft Motor 12v
,
Double Shaft 12v Dc Motor
Type Name

RF/FF-180 Motor
No-Load Speed

/9000rpm/9800rpm/
Volt

6V 9V 12V Or Custom
Shaft Type

Double Shaft /Single Shaft
Motor Type

DC Brushed Motor
Shaft Diameter

2mm
Casing Size

20mm*15mm*32mm(L*W*H)
Commutator

Carbon Brush/Metal Brush
Shaft Length

L±0.5mm
Casing Holes Dim

M2.0*0.4
Rated Current

Can Customized
Rated Speed

2500rpm
Use

Electric Clippers/toothbrush/shaver/model Toys
Insulation Class

A
Weight

27g
Operating Temperature

-20℃ To 80℃
HS Code

8501109990
Place of Origin

Dongguan,China
Certification

ISO9001 RoHs, Reach,SGS
Model Number

FF-180 dual Motor
Minimum Order Quantity

3000PCS
Price

Negotiation
Packaging Details

Foam Box
Delivery Time

30days-45days
Payment Terms

L/C,Western Union,MoneyGram,D/A,D/P,T/T
Supply Ability

10000PCS/Day

20mm 180 Double Shaft Motor 12v DC Mini Electric Brush DC Micro Motor

Name: 20mm 180 Double Shaft Motor 12v DC Mini Electric Brush DC Micro Motor
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: FF-180 dual Motor
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

20mm 180 Double Shaft Motor 12v DC

This 180 DC 12V high torque double shaft flat small mini electric brush DC micro motor is specially designed for high-performance applications, offering excellent power output and efficiency. Its 12V voltage and high torque characteristics make it ideal for various small devices that require strong driving force. The double shaft design provides more installation options, making it suitable for different mechanical structures and application needs. The compact flat shape allows for easy integration in devices with limited space, making it perfect for robots, toys, power tools, window controls, automation equipment, and more.

Product Features:

High Torque Output: Delivers powerful performance to meet high load demands.
Double Shaft Design: Offers flexible installation options to suit different applications.
12V DC Voltage: Compatible with common voltage standards, suitable for various power systems.
Compact Design: Small size for easy integration in space-constrained devices.
Efficient and Durable: High-quality materials and precision craftsmanship ensure long-term stable operation.

This motor provides outstanding performance and reliability for your projects, making it the ideal power solution for precision machinery.

20mm 180 Double Shaft Motor 12V DC Parameter Datasheet

el	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque		Output	Torque		Current
	Operating Range	Nominal	r/min	A	r/min	A	mNm	g-cm	w	mNm	g-cm	A
FF-180PH-2852	DC 1.0-3.0V	DC 2.4 V	8100	0-15	6850	0.82	1.82	18.6	1.3	11.8	120	4.5
FF-180SH-2466	DC2.0-4.0V	DC3.0V	7600	0.106	6431	0.574	1.7	17.3	1.14	10.8	111	3.1
FF-180PH-4022	DC 1.0-1.5V	DC 1.2V	9400	0-4	7830	1.99	1.76	17.9	1.44	10.5	107	9.9
FF-180SH-10320	DC 6.0-12.0V	DC 12V	6500	0.028	5280	0.12	1.51	15.4	0.84	8.04	82	0.52
FF-180SH-2657	DC 1.0-3.0V	DC 2.4 V	7700	0.13	6500	0.7	1.56	15.9	1.06	10	102	3.8
FF-180SH-14210	DC 3.7-7.2V	DC 4.5V	3700	0.025	3090	0.13	1.02	10.4	0.33	6.17	63	0.63
FF-180SH-4026	DC 1.0-1.5V	DC 1.2V	8300	0.3	6990	1.6	1.64	16.7	1.2	10.4	106	8.55
FF-180PA-3036	DC1.0-2.0V	DC 1.2V	5600	0.22	4100	1.1	1.86	18.9	0.8	6.86	70	3.0
FF-180PA- 2950	DC2.0-3.0V	DC2.4V	8000	0.16	7400	0.49	0.98	9.6	0.76	11.76	120	4.5
FF-180SH-10440	DC20.0-26.0V	DC24.0V	10200	0.025	8557	0.139	2.53	25.8	2.23	16.5	168	0.76
Note: 1.0g-cm=10.2mNm* lt's only typical technical data for reference, special requirement can be customized.

DELIVERING:

To ensure your 180 motor reaches its destination optimally, we look forward to receiving your feedback. We will tailor the transportation solution based on your specific requirements.

Shipping Way	Delivery Time	^*The actual transportation and arrival time is subject to actual conditions
DHL,UPS,FedEx	5-7 Days
Air	3-4 Days
Sea	20-25 Days
Train	15-30 Days

Lihua Motor’s advantages are as follows:

High Quality Guarantee: With over 20 years of experience in the micro motor industry, our mature manufacturing process ensures high-quality products. Most of our motors are CE, RoHS certified, meeting the stringent requirements of global markets.
Extensive International Experience: As of 2023, Lihua Motor has exported products to over 30 countries and regions, including the US, Germany, UK, Japan, Brazil, Russia, and more, building a broad customer base and extensive international market experience.
Competitive Pricing: Leveraging China's low-cost labor advantages, Lihua Motor is able to offer highly competitive product prices, helping customers achieve cost efficiency while maintaining high product quality.
Excellent Service: Lihua Motor’s sales team is professional and friendly. We promise to respond to customer inquiries within 24 hours (excluding holidays), ensuring that customers can always get support and resolve issues without any worries.
Small Order Acceptance: We accept small batch orders, providing customers with flexibility in purchasing, helping to reduce inventory pressure while meeting different order volumes.
On-Time Delivery: The delivery lead time for standard motors is 7-15 working days, and for customized motors, it is usually less than 20 working days, ensuring that customers receive their products on time for timely use.
Customization Service: Our experienced R&D team can provide customized motor solutions based on customer requirements, ensuring that products fully meet the unique needs of our clients.

With outstanding product quality, extensive experience, competitive pricing, professional service, flexible delivery, and customization capabilities, Lihua Motor is your ideal partner in the micro motor industry.

Certifications

Lihua Motor produced and designed motors for 20+years,180 motor is our classical motor we have.With comprehensive production qualifications and certifications from internationally recognized authorities, including CE, REACH, ROHS, SGS, CCC, and UL. These certifications demonstrate the company’s commitment to high standards of safety, environmental protection, and quality assurance, ensuring that all products meet the necessary regulations for global markets.
