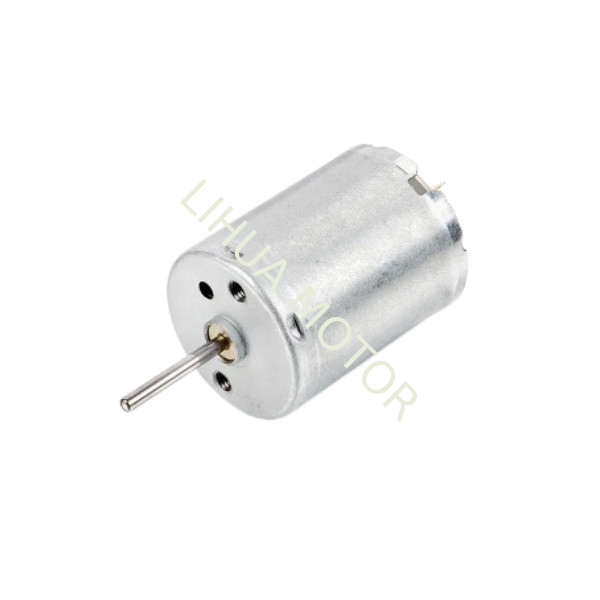

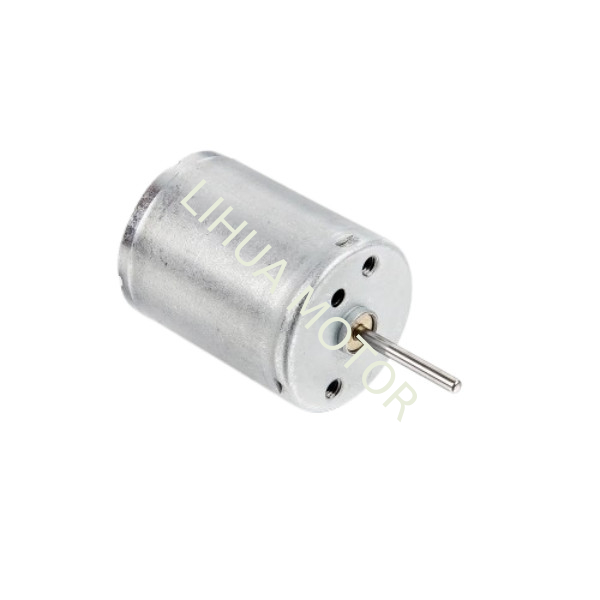

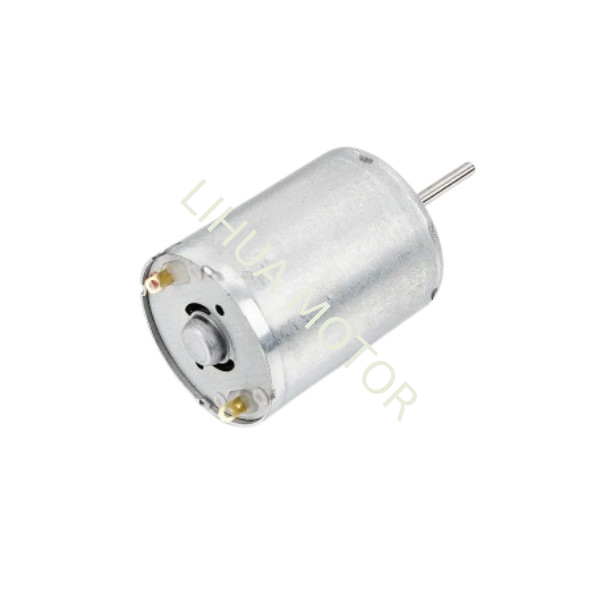

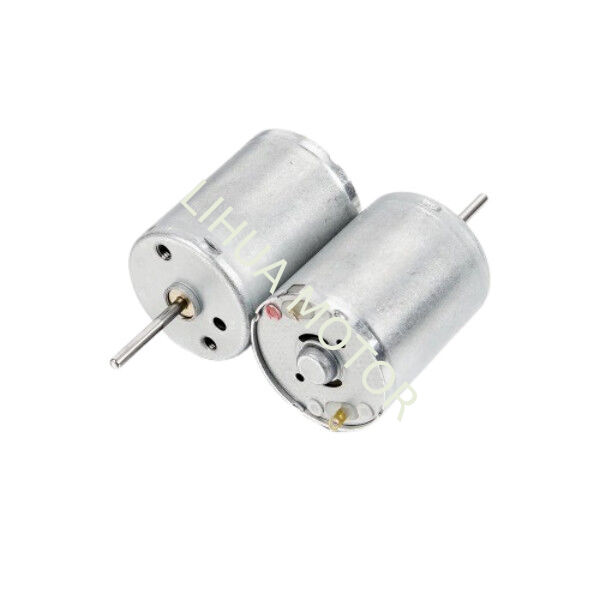

RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner

Highlight

RF-370CA-12560
,
Brushed DC Electric Motor 12V
,
Brushed DC Electric Motor 7000 Rpm
Name

Brushed DC Electric Motor
Diameter

24mm*30.8mm
Motor Type

RF-370CA-12560
Nominal Volt

24V
Speed

7000±3％rpm Or As You Need
Current

≤35mA
Motor Shaft Diameter

2mm
Shaft Length

6.0±0.2mm
Motor Applications

Mini Air Pump/ Mini Water Pump/Massager/Auto Acutator
Place of Origin

Dongguan,Chia
Brand Name

Lihua Motor/ HCS Motors
Certification

ISO9001/CE/RoHs/Reach
Model Number

RF-370CA-12560
Document

RF-370-12560 Model.pdf
Minimum Order Quantity

3000PCS
Packaging Details

Carton
Delivery Time

35-45Days
Payment Terms

L/C,T/T
Supply Ability

30000PCS/Day

RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner

Name: RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: RF-370CA-12560
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

RF-370CA-12560 12V-24V 7000rpm 24mm Mini 370 Motor for Auto Actuator Cleaner

RF-370CA-12560 Micro Motor Features:

1.Model: RF-370CA-12560

2.Motor diameter: 24.4mm Max

3.Motor length: 30.8mm

4.Output shaft diameter: 2mm

5.Output shaft length:10.5±0.2mm or as your request

6.Weight: 50g

7. Test data:

Voltage: DC6V Speed: 1800RPM Current: 0.01A

Voltage: DC9V Speed: 2700RPM Current: 0.01A

Voltage: DC12V Speed: 3600RPM Current: 0.01A

Voltage: DC18V Speed: 5400RPM Current: 0.02A

Voltage: DC24V Speed: 7200RPM Current: 0.06A

RF-370CA Brushed dc Electric Motor Technical Parameters:

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
	Range	Rated	R/min	A	m.Nm	R/min	A	W	g.cm	A
RF-370CA-22170	3-6V	6.0V	6000	0.041	2.37	5263	0.273	1.18	186	1.82
RF-370CA-12560	8-12V	12.0V	3700	0.012	1.96	3030	0.066	0.60	130	0.37
RF-370CA-15370	8-12V	12.0V	5600	0.020	2.14	4876	0.123	1.03	176	0.85
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm

Notes:
1.Motor Body Length:30.6mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:24.4mm Max
5.Fixed Aperture:2.5mm
6.Step Height: about 1.5mm
7.Step diameter: about 6.4mm
8.Distance between two fixed aperture:17±0.05mm

RF-370 Product Standard Specification

Storage Test under low temperature:

Motor exposed to -40℃ for 72 hours and then to normal temperature /humidity for 24 hours before measurement.

Storage Test under high temperature:

Motor exposed to +85℃ for 72 hours and then to normal temperature/humidity for 24 hours before measurement.

Storage Test under high temperature /humidity:

Motor exposed to +40℃/90% ~ 95% RH for 72 hours then to normal temperature/humidity for 24 hours before measurement.

Still can't find ideal motors?

Obtain a quote in 12 Hours Get in touch now! Any enquiries regarding the Micro DC Motor, specifications, data sheet, quote, etc.

If you would like the RK-370 small motors to be connected with a bespoke lead wire. For example, different lead wire and strip lengths with a connector . You can use the footer form to get in touch with us and explain your needs. Please do not hesitate to contact us using the footer form; any issues will be treated carefully and handled professionally.
