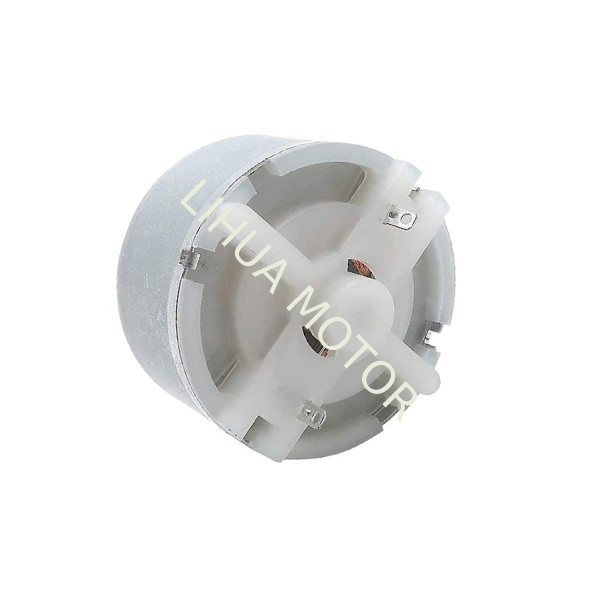

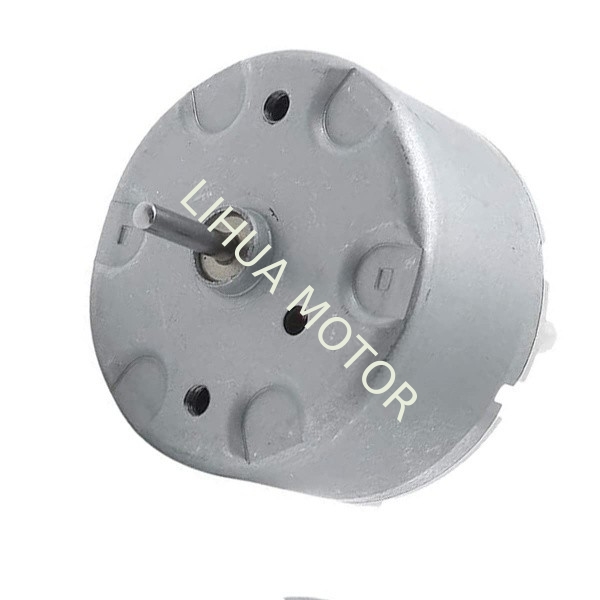

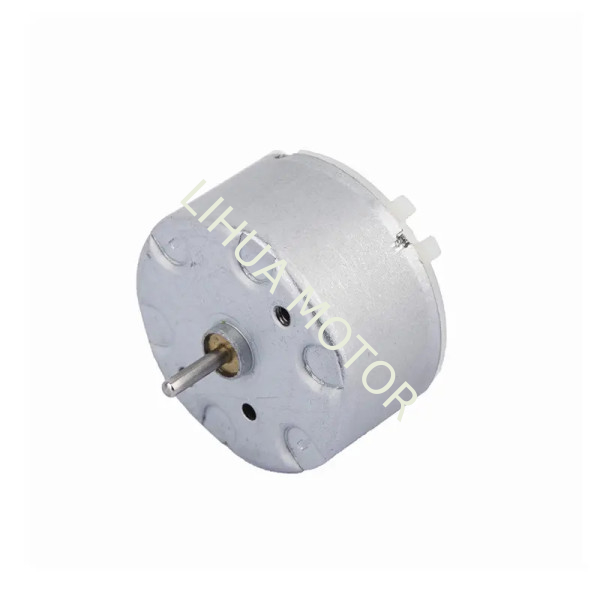

RF-500TB 2800rpm 32mm High Torque Hobby Motor 1.5V 3V 6V For Spray Machine

RF-500TB 1.5V 3V 6V 2800rpm 32mm Diameter Hobby Torque Spray Machine Small Motor

RF-500TB-18280 Micro Motor Features:

1.Model: RF-500TB-18280

2.Motor diameter: 32mm

3.Motor length: 19.5mm

4.Output shaft diameter: 2mm

5.Output shaft length:10.5±0.2mm or as your request

6.Weight: 50g

7. Test data:

    Voltage: DC3V      Speed: 2700RPM    Current: 0.03A

    Voltage: DC9V      Speed: 2700RPM    Current: 0.01A

    Voltage: DC12V    Speed: 3600RPM    Current: 0.01A

    Voltage: DC18V    Speed: 5400RPM    Current: 0.02A

    Voltage: DC24V    Speed: 7200RPM    Current: 0.06A

Characteristic:

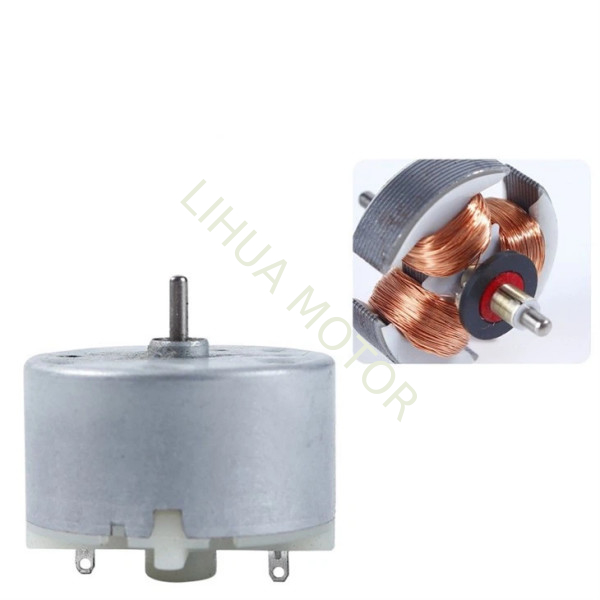

The structure consists of a stator and a rotor. Used in many electronic devices: CD players, DVD players, VCRs, etc.

1. 2 threaded mounting holes. With welding eyes, easy to connect.

2. Low voltage and low current requirements make it an ideal motor for solar experiments.

3. Operate in any direction, just reverse the power polarity (CCW/CW)

Tip: Light shooting and different displays may cause the color of the item in the picture to be slightly different from the real item.

• 【Material】: metal, using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
• 【Specifications】:RF-500TB-18280 Working range: 1.5-7.0, Nominal value: 3.0V Speed:2230RPM, No-load speed:2700RPM; Load current: 0.16A, No-load current: 0.03A ,shaft size: 8 x 2mm / 0.31" x 0.078" (length * width) Motor size: 32 x 19mm / 1.25'' x 0.75" (D * H).
• 【Function】Using direct current to convert it into mechanical energy, Operate in any direction, just reverse the power polarity.
• 【Widely Applicable】: Smart trash Can / Waste bin / Stirring cup / Household appliance / Portable Electric Sprayer / phlegm suction machine

RF-500TB Brushed DC Electric Motor Technical Parameters:
