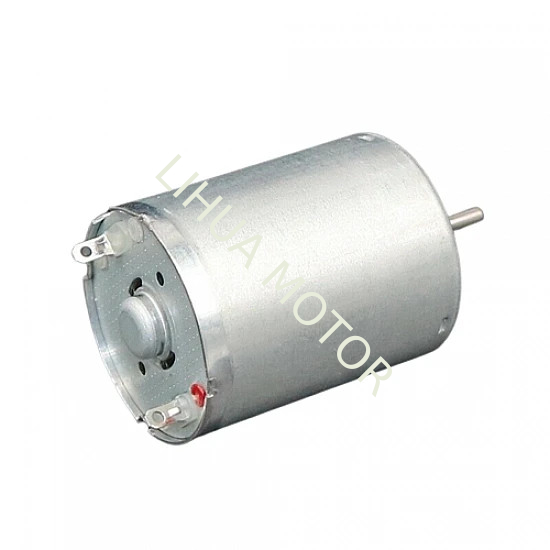

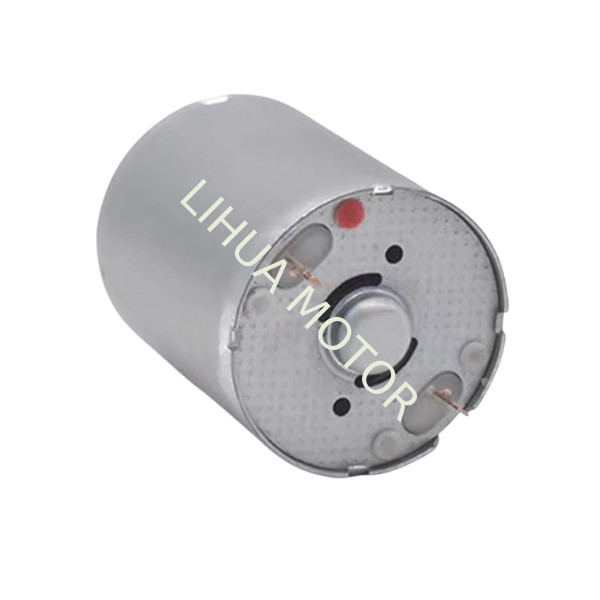

RF-370CA-22170 Motor 3V 6V Brushed Electric Motor 3000rpm-6000rpm

Model

Voltage

No load

At maximum efficiency

Stall

range

rated

speed

current

speed

current

torque

p

eff.

torque

current

V

R/min

A

R/min

A

gf-cm

W

%

gf-cm

A

RF-370CA-12560

4.0-12.0

12

3,700

0.018

3,090

0.091

20.7

0.66

60.1

125

0.46

RF-370CA-15370

3.0-12.0

12

5,600

0.026

4,840

0.17

25.3

1.26

61.6

187

1.06

RF-370CA-12560

4.0-12.0

8

2,400

0.015

1,970

0.069

16

0.32

58.6

90

0.32

RF-370CB-81100

8.0-16.0

12

1,850

0.005

1,510

0.022

10.1

0.16

59.3

55

0.1

RF-370CH-22170

3.0-8.0

6

6,100

0.06

5,250

0.386

25.77

1.39

60.0

125

2.4

RF-370CH-17315

3.0-8.0

6

3,250

0.035

2,688

0.167

19.88

0.55

54.8

185

0.76

RF-370CH-15370

12.0-24.0

12

5,400

0.028

4,700

0.147

22.7

1.10

62.1

115

0.92

RF-370CH-11670

12.0-24.0

12

3,630

0.016

3,000

0.08

19.1

0.59

61.3

175

0.38

• Color Variation: Due to lighting and screen differences, the actual product color may slightly differ from the images.
• Size Tolerance: Manual measurement may result in a 1–3cm variance in dimensions.
• All technical paramter can be customized as your need.
• Note:1mNm= 1Ncm = 10.2gcm

1. Rotor Production Line
Our rotor manufacturing utilizes cutting-edge automated processes:

Precision stamping technology ensures micron-level dimensional accuracy

Robotic welding systems guarantee consistent joint integrity

Specialized coating application enhances magnetic performance and corrosion resistance

Automated cleaning stations remove particulate contaminants to <5μm standards
This fully automated line achieves 99.2% dimensional consistency while maintaining 450 units/hour throughput.

2. Stator Assembly System
The stator production integrates:

Computer-controlled magnetization with ±1% flux density accuracy

Vision-guided winding systems ensuring ±0.5° coil alignment

In-line electrical testing (Hi-Pot, surge, and LCR measurements)

Real-time data tracking with SPC quality control
Our system achieves <0.01% defective rate while supporting flexible winding configurations.

 3.End Cover Manufacturing
Custom end cover solutions include:

• Dual-material options:

  • Engineering plastics (UL94 V-0 rated)

  • Aluminum alloy (ADC12 die-cast)

• Integrated bearing press-fit stations (±5μm concentricity)

• Automated leak testing for sealed units

• Quick-change tooling supports 15+ cover designs

 4.Final Motor Assembly
The complete integration process features:

• Robotic component handling with 0.01mm placement accuracy

• Automated torque testing (0.1mN·m resolution)

• Dynamic balance correction (<0.5g·mm/kg)

• 100% performance validation:

  • No-load current (±2% tolerance)

  • Rated torque verification

  • Acoustic noise profiling
