Highlight
High Torque DC Motor 42mm
,42mm DC Motor
,RS-750 DC Motor
-
Motor TypeRS-750
-
Motor Outline Size42mm*59.5mm
-
Motor Diameter42mm
-
Mounting Screw Hole Diameter4mm
-
Distance Between Screw Holes29mm
-
Motor Shaft Diameter5mm
-
Magnetic Ring Length32mm
-
ApplicationsCordless Power Tools /Air Pump / Vacuum Cleaner/Circular Saw/Power Seat
-
NameHigh Torque DC Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motors
-
CertificationISO9001/CE/RoHs/Reach/IATF16949
-
Model NumberRS-750
-
Document
-
Minimum Order Quantity3000PCS
-
Packaging DetailsPlastic Carton
-
Delivery Time30-45Days
-
Payment TermsL/C,T/T
-
Supply Ability10000PCS/Day
RS-750 High Torque DC Motor 42mm DC6V 12V 24V 20000rpm 5W-90W
RS-750 42mm DC6V 12V 24V 20000rpm 5W-90W High Torque Brushed dc Electric Motor

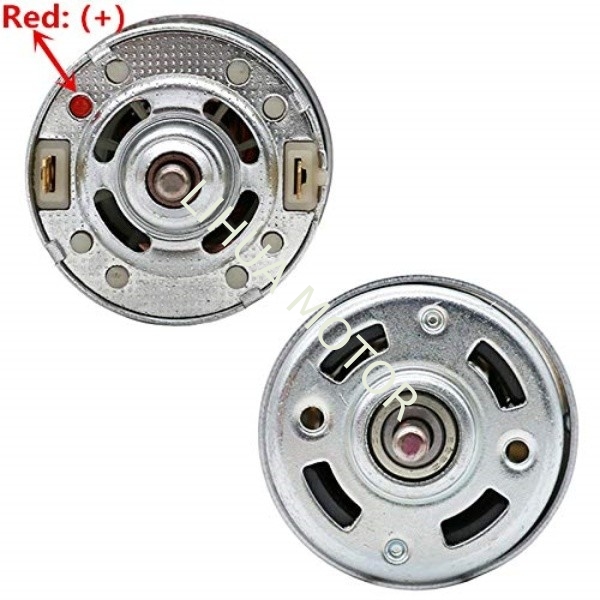

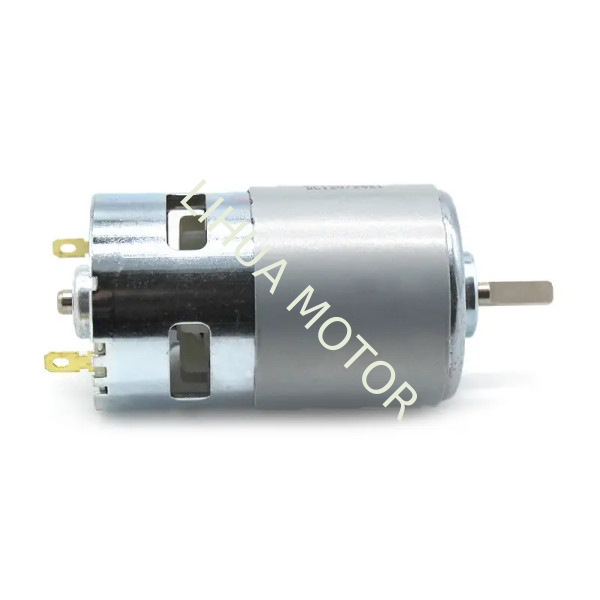

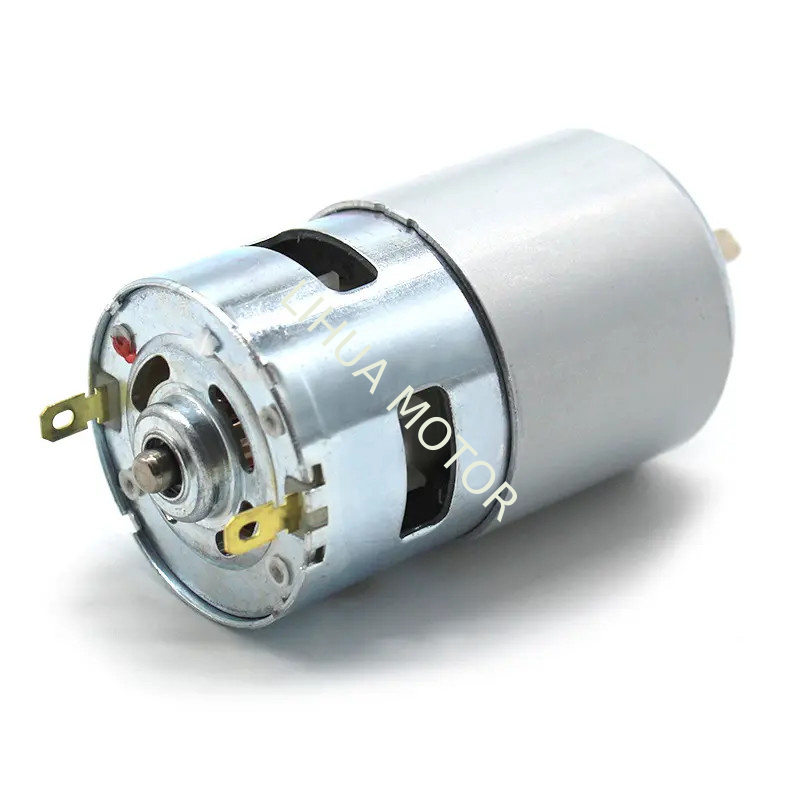

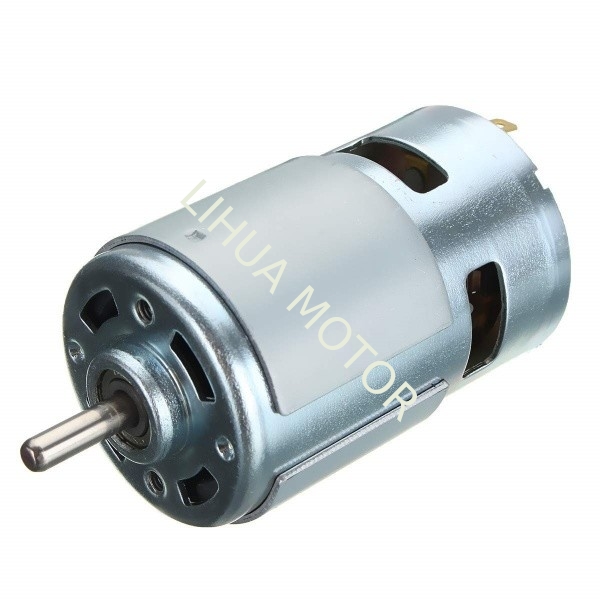

Motor type:RS-750 brushed dc motor
Motor case diameter: 42 mm
Motor case length: 59.5mm
Motor case shape: round motor housing
Brush type: carbon brush
Motor type: single brush permanent magnet dc electric motor
Driveshaft shape: D, Round, knurling, screw thread, Customization
Bearing type: bushing/ball bearing
Customizations Service:
Shaft Length Direction of Rotation
Technical Parameters Cables and Connectors
Encoder and other accessories
Typically Applications:Cordless Power Tools /Air Pump / Vacuum Cleaner/Circular Saw/Power Seat
RS-750 42mm dc Brushed Electric Motor Parameter
| Model | Voltage | No load | At Maximum Efficiency | Stall | ||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | |
| V | R/min | A | R/min | A | g-cm | W | g-cm | A | ||
| RS-750SM-8027 | 6-12v | 12v | 22500 | 2.30 | 19300 | 14.4 | 620 | 123 | 4550 | 90.0 |
| RS-750SM-8523 | 4.8-9.6V | 6V | 13200 | 1.95 | 11400 | 12.5 | 473 | 55.5 | 3500 | 80.0 |
| RS-750SM-3570 | 12-30V | 24V | 9200 | 0.32 | 7900 | 1.96 | 420 | 34 | 3000 | 12 |
| RS-750-7032 | 9-15V | 12 | 15000 | 1.79 | 12671 | 7.52 | 496 | 64.5 | 4010 | 55.6 |
|
Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement. |
||||||||||
RS-750 42mm dc Brushed Electric Motor 2D Drawing
Model Number: RS-750
|- Shell Stator Size : Φ42* L 59.5mm(Φ 2.637 inch * 2.34 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft Length:L±0.5mm (Custom Option)|-Motor Diameter:32mm
|-Fixed Aperture:M4.0*0.7mm
|-Step Height: about 4.5mm
|-Step diameter: about 15mm
|-Distance between two fixed aperture:29mm
Magnetic Ring Length:32mm
Custom RS-750 Popular Types
RS750 12V DC Motor Specifications:
- Nominal Voltage: 12V
- Suitable voltage : DC 12V-18V
- No Load RPM Range: 10500RPM-16000RPM
- No Load Current: 1.1A
- Rated Torque: 10 oz-in
- Stall Current: 31.2A
- Shaft Type: Round
- Voltage: 6V-18V
- Voltage, speed (no load), current
- 6.0 V 7900 rpm 1.0 A
- 12.0 V 16200 rpm 1.23 A
- 18.0 V 24000 rpm 1.5 A
RS-750 for Grinding /Buffering Plate
- Voltage:9-30V
- Power:30-100W
- Current:2-15A
- Speed:8000-18000R
- Torque:420-560gf.cm
Wide Range of Applications
Our high-performance DC motors are versatile and suitable for a variety of applications, including but not limited to:
-
-
Consumer electronics: USB fans, game machines, car DVD/CD players, cameras, digital cameras, and toys.
-
Home and office appliances: automatic vendor machines, massagers, automatic curtains, soap dispensers, soap containers, air-perfume spray machines, and automatic sensing bins.
-
Industrial and commercial equipment: money counters, caution lights, juice machines, aero models, information and communication devices, and cosmetic tools.
-
Our products are sold all over the world, you can rest assured.
