775 DC Motor 42mm 8000-20000rpm High Speed High Torque DC Motor Dual Shaft

775 DC Motor 42mm 8000-20000rpm High Speed High Torque DC Motors Dual Shaft

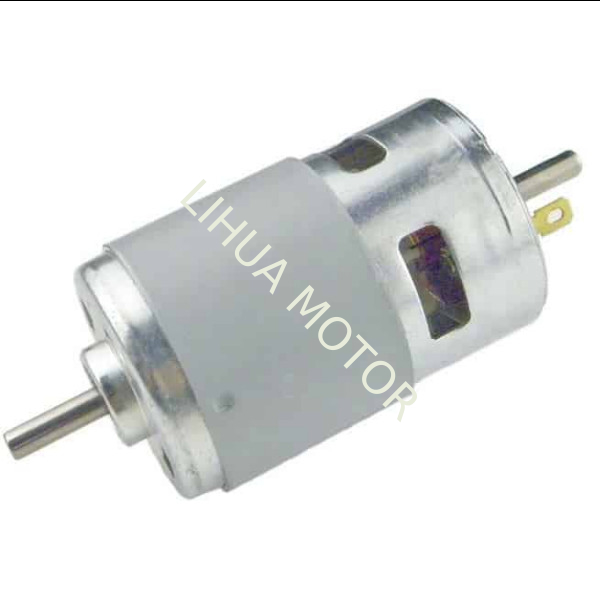

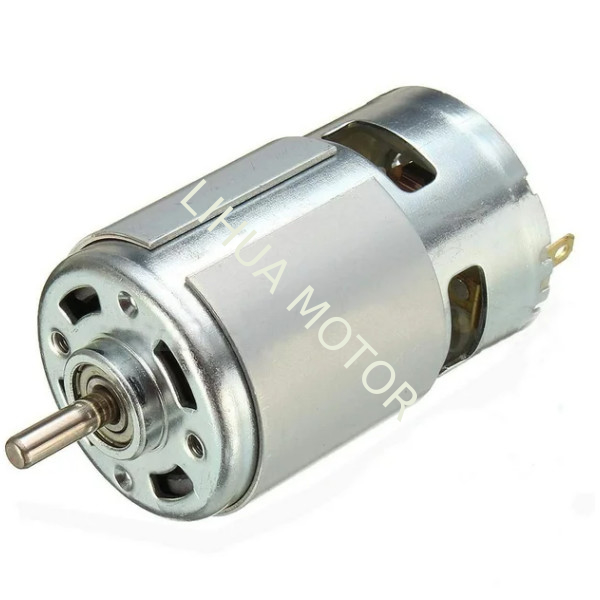

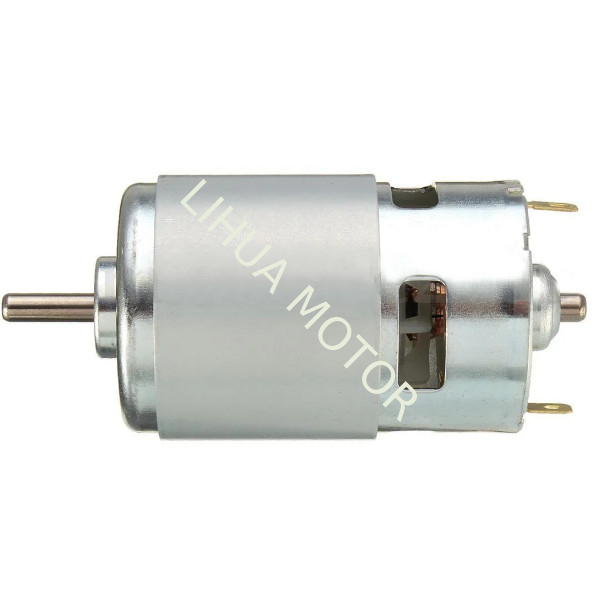

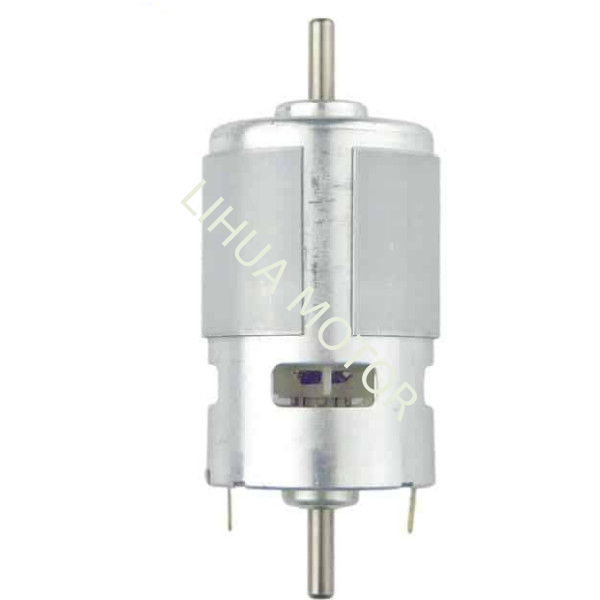

Introducing the dual shaft 775 DC Motor, a high-performance motor designed for a wide range of applications. This motor operates efficiently at DC 6V,12V or 24V, delivering exceptional torque and speed. Built with durability in mind, it features double ball bearings on both front and rear shafts, thickened copper enameled wire, and reinforced carbon steel components, ensuring long-lasting performance even under demanding conditions. Whether you need high torque or high-speed operation, this motor is an ideal choice.

Key Features:

• Model: RS-775SM Motor

• Shaft Type: Double Shaft

• Shaft Diameter: 5mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 42mm

• Motor Body Length: 66mm

• Voltage Range: DC 12V-24V

• Front Steps Diameter: 17.5 mm

• Former High Level: 4.5 mm

• Diagonal Installation Pitch: 29 mm

• Mounting Hole Size: M4

• Mounting Holes: 2 Holes

• No-load Speed Range: Rated 12V

  • 4000-8000 RPM

  • 6000-12000 RPM

  • 10000-20000 RPM

• Other 775 motor Options

    DC 12V: Current 0.14A, Speed 3500 RPM

    DC 18V: Current 0.15A, Speed 4500 RPM

    DC 24V: Current 0.16A, Speed 7000 RPM

    DC 30V: Current 0.17A, Speed 8100 RPM

    DC 36V: Current 0.20A, Speed 9000 RPM

775 Motor Applications:

This versatile motor is suitable for a variety of devices, including:

• Electric fans

• Shredders

• Sprayers

• Small cutting machines

• Small table saws

• Money counters

• Printers

Important Notes:

1. Polarity: The motor has clearly marked positive and negative terminals. The side with the red dot indicates the positive pole. Ensure correct wiring during installation to avoid damage.

2. Voltage Compatibility: The motor is designed for DC 12V-24V. Using voltages outside this range (e.g., 6V) may cause the motor to burn out. Always verify the voltage before use.

3. Manual measurements may have a tolerance of 1-2 cm. We appreciate your understanding.

Warranty & Support:

• 1-Year Warranty: Enjoy peace of mind with our 1-year warranty, including free exchanges for any manufacturing defects.

• Lifetime Technical Support: Our team is always available to provide guidance and assistance. Feel free to reach out to us with any questions or feedback about your usage experience.

This 775 Motor is designed for high-performance applications, offering reliability, efficiency, and versatility across a range of voltages. Perfect for projects requiring precision and durability!
