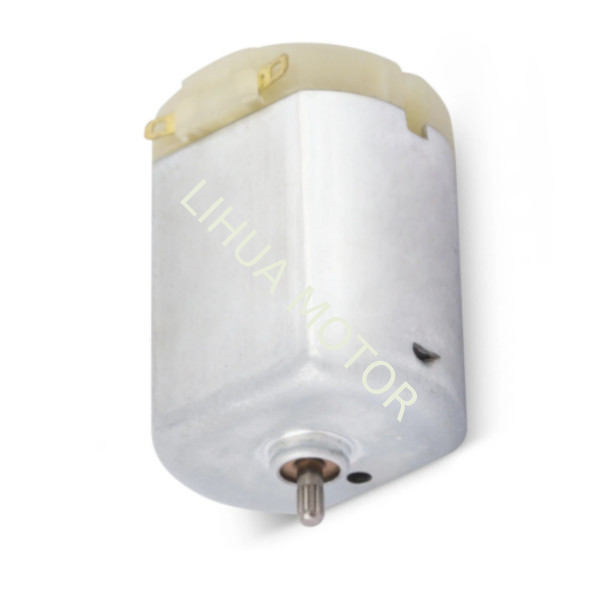

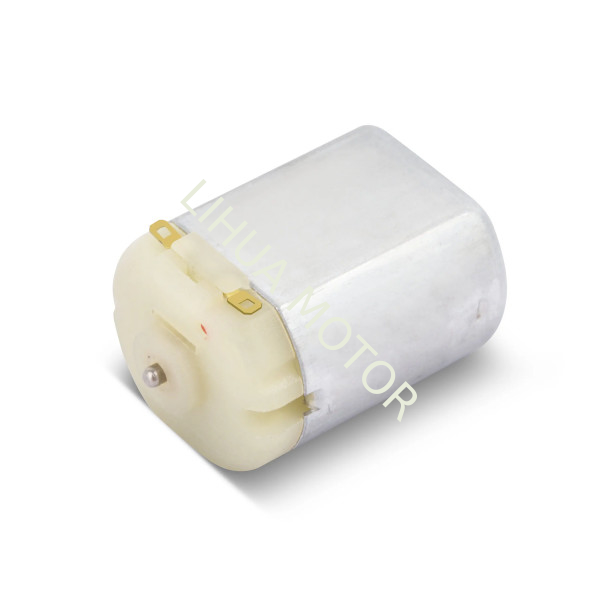

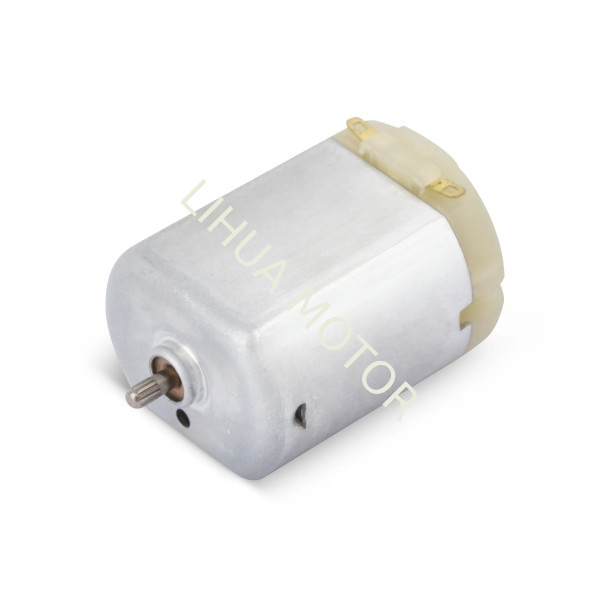

FC-280 Motor 3V 4.5V 6V 8000RPM-10000RPM Small Electric Motors For Models

FC-280-18280 Motor 3V 4.5V 6V 8000RPM-10000RPM Small Electric Motors For Models

The FC-280 Mini Motor is a versatile and efficient DC motor designed for precision applications across various industries. Available in two models, FC-280ST-18180 and FC-280SC-20150, this motor delivers high-speed performance, reliable operation, and compact design, making it ideal for space-constrained projects.

Key Features

1. High-Speed Performance:

   • FC-280ST-18180: Operates at 9,840 RPM under full load (12V).

   • FC-280SC-20150: Delivers a no-load speed of 12,500 RPM (12V).

2. Wide Voltage Range:

   • Compatible with 5V to 15V DC, offering flexibility for different power supplies.

3. Compact Design:

   • FC-280ST-18180: Dimensions of 30.5mm (L) × 24.2mm (W) × 18.3mm (H).

   • FC-280SC-20150: Dimensions of 30.55mm (H) × 24mm (D), with a 2.0mm diameter shaft and 32mm shaft length.

4. Efficient Operation:

   • FC-280ST-18180: Delivers 3.37 Watts of power output with a stall torque of 245 g-cm.

   • FC-280SC-20150: Features a copper worm gear for smooth and efficient power transmission.

5. Reversible Rotation:

   • Can operate in either direction by reversing the power supply polarity.

6. Durable Construction:

   • Built with high-quality materials, including a splined shaft and push-in style terminals, ensuring long-lasting performance.


FC-280 Mini Motor Technical Specifications

FC-280ST-18180:

• Voltage: 12V DC (operating range: 5V–15V DC).

• No-Load Current: 75 mA.

• Full Load Performance:

  • Speed: 9,840 RPM.

  • Current: 470 mA.

  • Torque: 33.4 g-cm (3.38 mN-m).

  • Power Output: 3.37 Watts.

• Stall Performance:

  • Torque: 245 g-cm (24.0 mN-m).

  • Current: 3.00 Amperes.

• Dimensions: 30.5mm (L) × 24.2mm (W) × 18.3mm (H).

• Shaft Dimensions: 9.8mm (L) × 2.0mm (D).

FC-280SC-20150:

• Voltage: 12V DC.

• No-Load Speed: 12,500 RPM.

• No-Load Current: 120 mA.

• Dimensions: 30.55mm (H) × 24mm (D).

• Shaft Dimensions: 2.0mm (D) × 32mm (L).

• Copper Worm Gear: 8.45mm (D) × 17mm (L).

• Weight: 50g.

FC-280 Mini Motor Applications

• Automotive Systems: Powers power mirrors, door locks, and other small actuators.

• Robotics: Drives joints, arms, and other moving parts in robotic systems.

• Consumer Electronics: Used in devices requiring compact and efficient motors.

• DIY Projects: Ideal for hobbyists building model cars, drones, or other creative projects.

• Industrial Tools: Provides reliable power for small-scale machinery and tools.

FC280 3V 6V 12V Micro DC Motor Dimension

FC-280-18280 Motor Applications

• Automotive Systems: Powers power mirrors, door locks, and other small actuators.

• Robotics: Drives joints, arms, and other moving parts in robotic systems.

• Consumer Electronics: Used in devices requiring compact and efficient motors.

• DIY Projects: Ideal for hobbyists building model cars, drones, or other creative projects.

• Industrial Tools: Provides reliable power for small-scale machinery and tools.

Why Choose the FC-280 Mini Motor?

• High Performance: Delivers reliable power and precise control for various applications.

• Compact Design: Fits seamlessly into space-constrained systems.

• Versatile Voltage Compatibility: Adaptable to multiple power supply configurations.

• Durable Construction: Built to withstand continuous use in demanding environments.

Ideal for Engineers & Hobbyists – Whether for automotive systems, robotics, consumer electronics, or DIY projects, the FC-280 Mini Motor offers unmatched performance and adaptability in a compact package.

Customizable options available | Bulk pricing | Global shipping.
