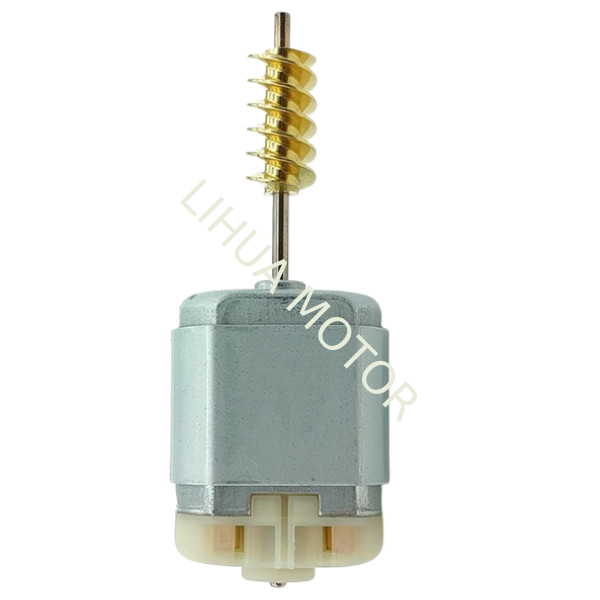

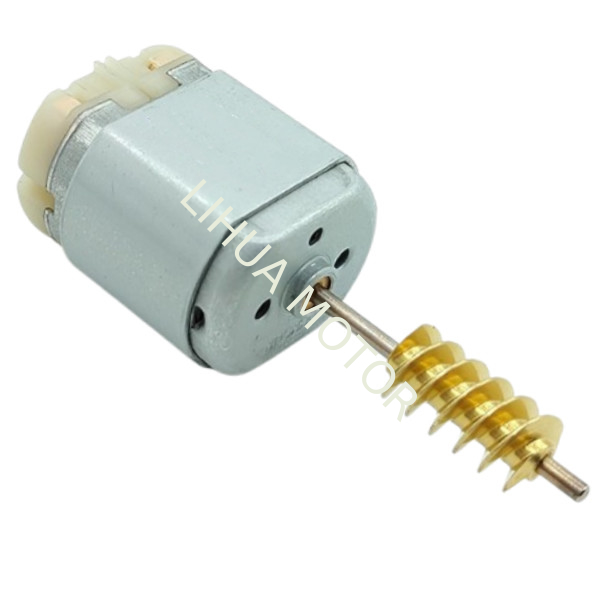

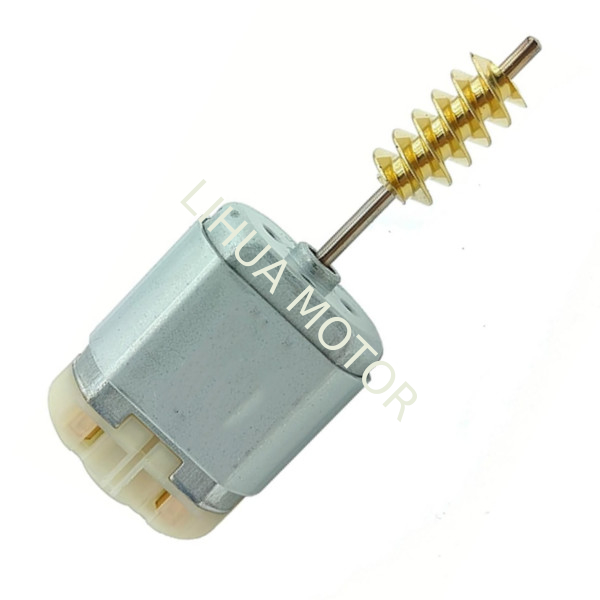

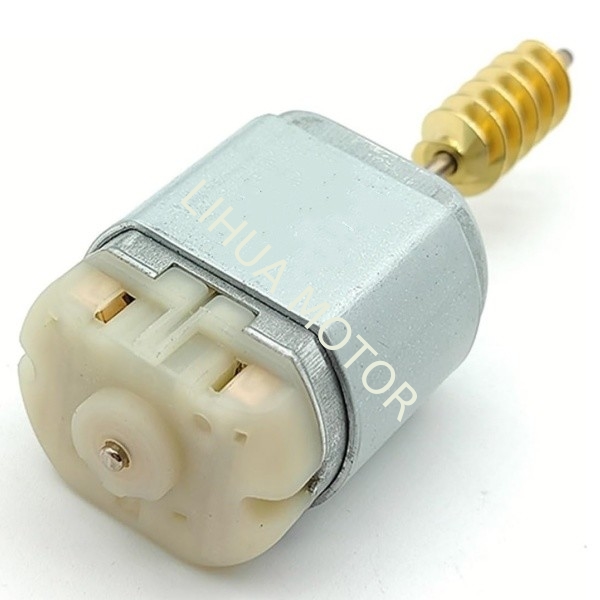

FC-280 4.5V 3V DC Mini Motor , Compact Low Noise DC Motor With Worm Gear

Products - Mini DC Motor

Highlight

Mini Motor DC 3V
,
3V DC Mini Motor
,
Compact Low Noise DC Motor
Name

DC Mini Motor With Worm Gear
Direction

CW/CCW
Rated Voltage

3V/4.5V/6V/12V Or Custom
OEM/OEM

Available
Motor Length

30.5mm(Not Including Shaft Length)
Shaft Metaril

Stainless Steel Shaft
Rotor Slot

3 Slots
Other Name

280 Miniature DC Motor
Housing Diameter

24mm(W)*18.4mm(H)
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/HCS Motors
Certification

IATF16949/ISO9001/Reach/RoHs/SGS
Model Number

FC-280
Minimum Order Quantity

2000PCS
Packaging Details

Foam Carton
Delivery Time

35-45Days
Payment Terms

L/C,T/T,D/A,D/P,Western Union
Supply Ability

10000PCS/Day

FC-280 4.5V 3V DC Mini Motor , Compact Low Noise DC Motor With Worm Gear

Name: FC-280 4.5V 3V DC Mini Motor , Compact Low Noise DC Motor With Worm Gear
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: FC-280
Price: 0.35 USD
Availability: InStock

button button

Get Price Contact Now

3V 4.5V 280 Mini Motor With Worm Gear For DIY Car Door Lock Rearview Mirror

The 3V 4.5V 280 Mini Motor with Worm Gear is a compact and versatile DC motor designed for precision applications, particularly in DIY car door locks and rearview mirror systems. With its worm gear design, this motor delivers high torque, smooth operation, and reliable performance, making it ideal for space-constrained projects.

Technical Specifications

Motor Model: FC-280.
Motor Size: 24mm (D) × 18mm (W).
Motor Height: 30.5mm.
Output Shaft Diameter: 2mm.
Output Shaft Length: L±0.5 mm (excluding step height).

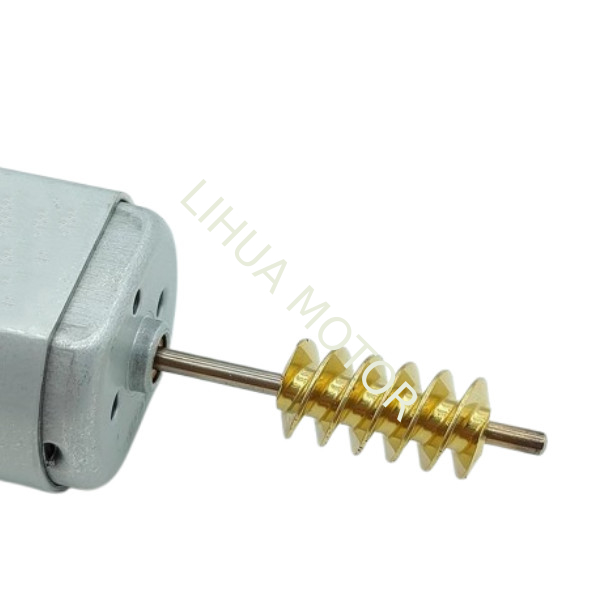

Copper Worm Gear Diameter: 5.5mm.
Copper Worm Gear Length: 10mm (Model A) or 12mm (Model B).
Copper Worm Gear Pitch: 1.3mm.
Weight: 45g.
Suitable Voltage: 3V, 4.5V, or 12V DC.

3V 4.5V 280 Mini Motor With Worm Gear Dimension

FC-280 4.5V 3V DC Mini Motor , Compact Low Noise DC Motor With Worm Gear 0

FK-280 dc Motor Data Examples

Model	Voltage		No load		At maximum efficiency					Stall
	Range	Rated	Speed	Current	Speed	Current	Torque		P.out	Torque		Current
	V		R/min	A	R/min	A	mN-m	g-cm	W	mN-m	g-cm	A
FK-280PA-20150	10.0 - 15.0	12	12,000	0.1	10,330	0.62	4.45	45.4	4.81	31.86	325	3.8
FK-280PA-18165	10.0 - 15.0	12	10,500	0.09	9,000	0.54	4.12	42	3.88	28.92	295	3.25
FK-280SA-18165	10.0 - 15.0	12	12,300	0.075	10,710	0.5	3.40	34.7	3.82	26.27	268	3.4
FK-280S-3736	1.5-3.0	2.4	11300	0.30	9562	1.58	2.38	24.3	2.54	15.59	159	8.74
FK-280S-3158	1.5-3.0	2.4	7400	0.18	6152	0.91	2.53	25.8	1.41	14.31	146	4.63
1mN.m=10.2g.cm All data in chart can be custom as your need.

FC-280 Micro Motor Key Features

High Torque Output:
- The worm gear design provides a high reduction ratio, enabling the motor to deliver high torque for demanding applications.
Compact and Space-Saving:
- Dimensions: 24mm (D) × 18mm (W) × 30.58mm (H).
- Lightweight design (45g) for easy integration into small devices.
Durable Construction:
- Made with high-quality materials, including a copper worm gear, ensuring wear resistance and long service life.
- Precision machining and heat treatment enhance durability and reduce maintenance needs.
Low Noise Operation:
- Optimized for smooth and quiet operation, making it suitable for noise-sensitive environments like car interiors and home automation systems.
Wide Voltage Compatibility:
- Operates at 3V, 4.5V, or 12V DC, offering flexibility for various power supplies.
Reversible Rotation:
- Can operate in either direction by reversing the power supply polarity.
