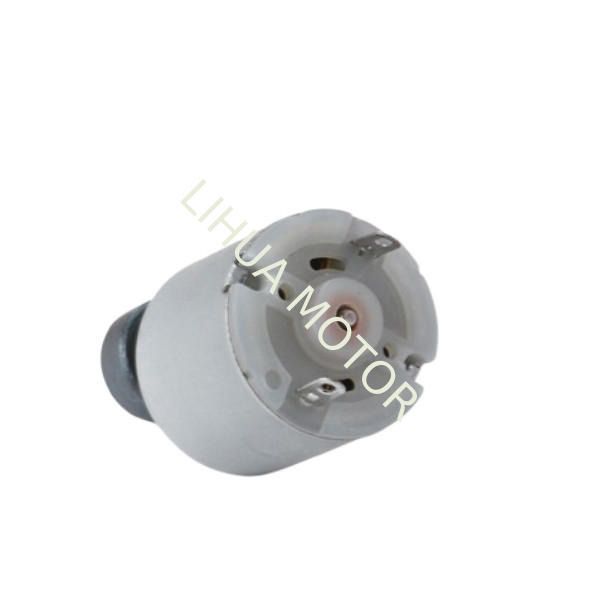

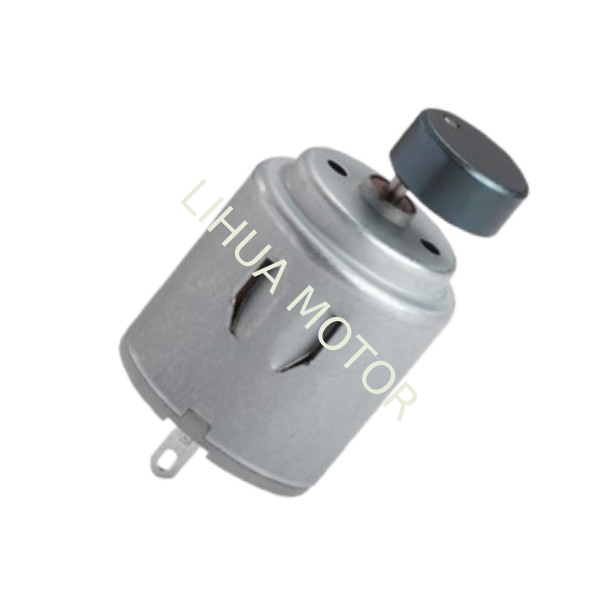

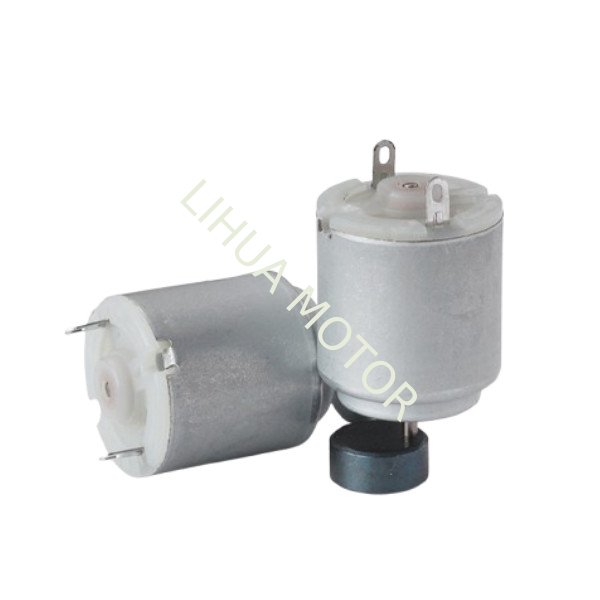

Round Shaft 260 Small Vibrating Motor 1.5V Mini DC Motor For RC Boat

1.5V Motor Round Shaft 260 Motor Small Vibrating Motor Mini DC Motor For RC Boat

The 260 DC Mini Electric Motor is a compact, high-performance motor designed for a wide rang                            e of applications, from DIY projects to industrial tools. With a rated voltage of 1.5V–6V and a speed range of 5,000–20,000 RPM, this motor delivers reliable power and efficient performance in a small package. Its durable construction, easy installation, and affordable price make it a popular choice for hobbyists, engineers, and manufacturers alike.

Key Features

1. Compact and Lightweight:

   • Dimensions: 24.2mm (D) × 26.9mm (L).

   • Weight: 28g, making it easy to integrate into space-constrained projects.

2. High-Speed Performance:

   • Delivers speeds up to 20,000 RPM at 6V, ensuring smooth and efficient operation.

3. Durable Construction:

   • Made with metal and electronic components, offering wear resistance, corrosion resistance, and long-lasting durability.

4. Easy Installation:

   • Can add with 4-inch (10cm) black and red wire leads pre-soldered for easy connection to circuits.

   • Features a 2mm round shaft (6mm length) for secure coupling with gears and attachments.

5. Wide Voltage Range:

   • Operates efficiently at 1.5V–6V DC, making it compatible with AA batteries, solar cells, or other low-voltage power sources.

6. Low Noise Operation:

   • Engineered for quiet performance, making it suitable for noise-sensitive environments.

Technical Specifications

• Motor Type: 260 DC Motor

• Rated Voltage: 1.5V–6V DC.

• Optimum Voltage: 3V–6V DC.

• Speed:

  • 5,000 RPM at 1.5V.

  • 10,000 RPM at 6V.

• Shaft Diameter: 2.0mm.

• Shaft Length: 6mm.(Or can custom shaft length as you need)

• Motor Body Diameter: 24mm.

• Motor Body Length: 26.9mm.

• Mounting Hole Pitch: About 11.5mm.

• Mounting Hole Diameter: 2.3mm.

• Idling Current: 0.11A.

• Stall Current: 1.8A.

• Weight: 28g.

24mm RC-260SA Round Brushed DC Electric Motor Dimension

Notes:

Custom Service
1.Motor Direction of rotation can be design (CCW/CW)

2.Out shaft Length (L) can custom

3.Length / Materials of motor cables can be customized

4.Voltage ,Current, speed,torque ,power

5.Above RC-260 motor sheet is just reference,model name also can be change as your need.

24mm RC260 High Speed Small DC motor Datasheet

• Rated Voltage: 1.0–24V (Can be custom)
• RC-260SA Motor Size: 26.9×24.4mm(L*D)
• Motor Leads/Wires Length: Can be design as your need
• Brush Series:Long-life carbon brushed motor

Why Choose the 260 DC Mini Electric Motor?

• Affordable and Reliable: Offers high performance at an affordable price.

• Versatile: Suitable for a wide range of applications, from toys to industrial tools.

• Easy to Use: Pre-soldered wires and compact design simplify installation.

• Durable Construction: Built to withstand continuous use in demanding environments.

Ideal for Hobbyists & Engineers – Whether for DIY projects, toys, automotive systems, or educational kits, the 260 DC Mini Electric Motor delivers unmatched performance and adaptability in a compact package.
