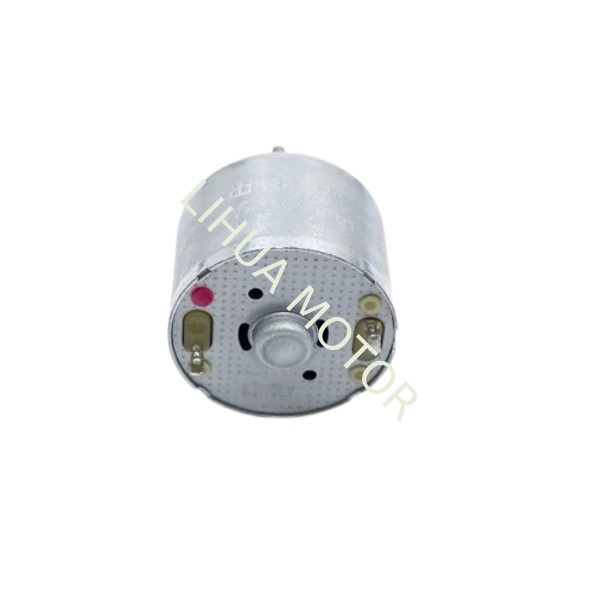

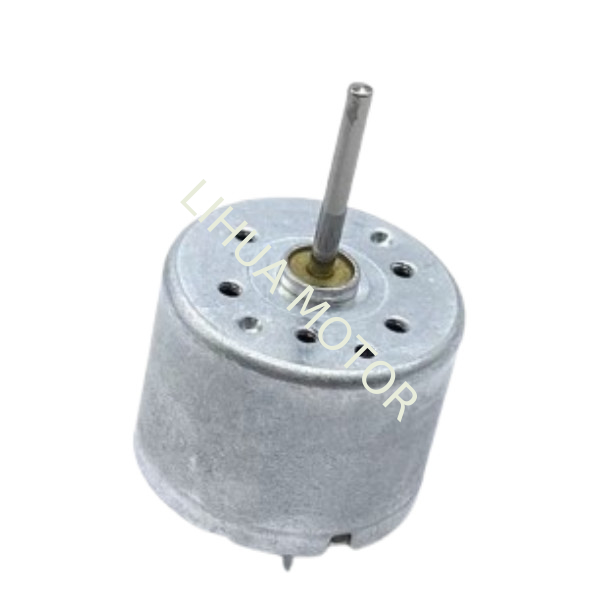

3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
-
Highlight
3V Brushed DC Electric Motor
,12 Volt Dc Motor 6000 Rpm
,320 Motor Long Shaft
-
Motor TypeRF-320CH-13340
-
Shaft Diameter2mm
-
Motor Body Size24.4mm*18mm
-
Rated Voltage6V
-
Shaft TypeRound/D Shaft/Knurling/Screw Thread
-
Operating Temperature-20°C To 80°C
-
Noise Level＜55dB
-
No-load Speed3000RPM/6000RPM/10000RPM/Or As You Request
-
ApplicationsVCD Engine Part,Electric Valve, Hand Charger And Mini Aerosol Dispenser Devices
-
Weight25g
-
NameBrushed DC Electric Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motors
-
CertificationISO9001/Reach/RoHs/SGS/CE
-
Model NumberRF-320
-
Document
-
Minimum Order Quantity3000pcs
-
Packaging DetailsFoam Inner /Carbon Outer
-
Delivery Time30-45Days
-
Payment TermsT/T
-
Supply Ability12000pcs/Day
3V 6V 12V Brushed DC Electric Motor 6000Rpm 320 Motor Long Shaft For Micro Pump Motor
6V RF-320CH-13340 mini motor can be used as a variety of small electrical appliances, vibrators, scientific research experiments, car modelling aeromodelling small production, extremely versatile and flexible use.The motor has a compact structure, large power, high speed, and very stable performance.Can be between 1.5v-24v normal operation.
-
- Rated Voltage:6V /12V /24V
- Direction Of Rotation:CW/CCW
- Speed:6000rpm or custom
- Motor diameter: 24.4mm Max
- Motor Height:18mm
- Output shaft diameter: 1.5mm / 2.0mm
- Motor Step Height:1.4mm
- Motor Step Diameter:6.4mm
- Output power:0.05w-3.5w
- Brush Type: Metal brushes
Customization Service:Voltage, speed,torque and current can be custom.
RF-320 Small DC Motor Datasheet
The following specifications can be changed as customers' requirement.
| Model | Voltage | No Load | RATED LOAD | Stall | ||||||
| Operating range | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |
| VDC | RPM | A | RPM | A | g.cm | W | g.cm | A | ||
| RF-320CH-12400 | 1.0-5.0 | 3 | 2700 | 0.019 | 2160 | 0.075 | 3.20 | 0.072 | 15 | 0.22 |
| RF-320CH-12400 | 4.9 - 9.0 | 6 | 14000 | 0.28 | 11910 | 1.6 | 45.5 | 5.56 | 305 | 9.1 |
| RF-320CH-14310 | 4.5 - 12.0 | 9 | 11300 | 0.14 | 9540 | 0.76 | 41.3 | 4.04 | 265 | 4.1 |
|
All technical paramter can be customized as your need. Note:1mNm= 1mN.m = 10.2gcm |
||||||||||
Custom 3V 6V 12V 24V rF-320 motor Solutions
|
|
|
1.Dual Shaft Micro RF-320-14310 Motor
This dual-shaft micro RF-320-14310 motor supports multiple voltages of 3.7V, 5V, 6V, and 7.4V, with a high speed of up to 17000 RPM and a compact size of only 24mm. It is suitable for applications requiring high speed and small size. The dual-shaft design facilitates connection to various transmission devices, making it widely used in model making, precision instruments, and small automation equipment, providing efficient and stable power output.
2.RF-320 Model Motor for Solar Toys and Hand Generators
This RF-320 motor is specifically designed for solar toys and hand-crank generators, featuring low-voltage startup and high efficiency. Its compact structure and reliable performance make it an ideal choice for DIY enthusiasts and educational experiments. It helps users understand the basics of energy conversion and mechanical transmission while inspiring creativity.
3.RF-320 Motor with Pump for Aerosol Dispenser
This RF-320 motor is designed for aerosol dispensers and is used in conjunction with pump mechanisms to provide stable power output, ensuring precise spraying of liquids or gases. Its high efficiency and durability make it a core component of aerosol products such as cosmetics, cleaners, and medical sprays, meeting the needs of both industrial production and daily use.
