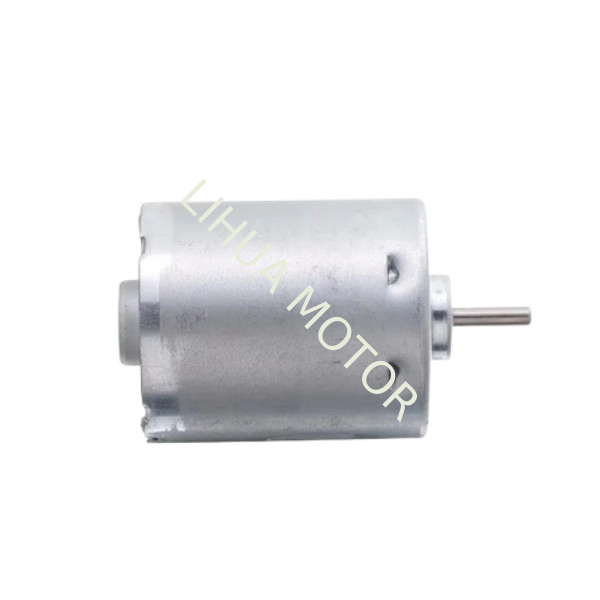

360 1000Rpm 24V Small Electric Motor Carbon Brushes For Electric Power Tools
-
Highlight
24V Small Electric Motor
,1000Rpm Small Electric Motor
,RS-360 Small Electric Motor
-
TypeRS-360 Carbon Brush Metal Cover
-
Custom ServiceDirection Of Rotation/Voltage/Torque/Current/Speed /Output Shaft Length Can Customized
-
Dimensions32.3 Mm Long X 27.7 Mm Diameter (not Including Shaft Long)
-
Mounting Hole SizeM2.6*0.45
-
Output Shaft Diameter2.3mm
-
Screw Hole Distance16mm
-
UsageAutomatic Paper Towel Machine / Automotive Parts Bidet / Electric Hair Cutter Grinder For Coffee Beans / Home Appliances / Industrial Tools /Peristaltic Pump Sweeping Robot / Toilet Deodorizing Fan
-
Warranty48-Month
-
Place of OriginDongguan China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001 Reach,RoHs,SGS,CE
-
Model NumberRS-360 Motor
-
Document
-
Minimum Order Quantity3000PCS
-
PriceNegotiation
-
Packaging DetailsPlastic/Foam Box
-
Delivery Time40-45days
-
Payment Terms,L/C,Western Union,MoneyGram,D/P,T/T,D/A
-
Supply Ability8000PCS/Day
360 1000Rpm 24V Small Electric Motor Carbon Brushes For Electric Power Tools
360 6800Rpm 24V Mini Small Electric Motor Carbon Brushes For Electric Power Tools
|
Carbon Brush 360 Micro Motor Technical Parameter |- Model Number: RS-360 Grinder for coffee beans / Home Appliances / Industrial Tools /Peristaltic pump Sweeping robot / Toilet deodorizing fan
|
 |
360 Mini Small Electric Motor Carbon Brushes Motor Types
|- Motor Type:RS-360SMT-11500
|-Direction of Rotation:CCW
|- Rated Volt:24V
|- No-load Speed:6800±5％RPM
|- No-load Current≤65mA
|- Load Torque:60g-cm
|- Load Speed:5550±8％RPM
|- Load Current≤300mA
|- Outshaft Length:8.2±0.2mm
|- Motor Type:RS-360SMT-11510
|- Rated Volt:24V
|- No-load Speed:6100±5％RPM
|- No-load Current≤70mA
|- Load Torque:60g-cm
|- Load Speed:4900±8％RPM
|- Load Current≤320mA
|- Outshaft Length:8.2±0.2mm
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |||
| V | R/min | A | R/min | A | mN-m | gf-cm | W | % | mN-m | gf-cm | A | ||
| RS-360SH-10500 | 12.0 - 25.0 | 24 | 7,000 | 0.05 | 5,600 | 0.2 | 4.50 | 45.9 | 2.64 | 55.0 | 22.45 | 229 | 0.8 |
| RS-360SH-2885 | 3.0 - 9.0 | 7.2 | 12,500 | 0.36 | 10,380 | 1.76 | 6.99 | 71.3 | 7.60 | 60.0 | 41.18 | 420 | 8.6 |
| RS-360SH-4528 | 1.5 - 6.0 | 2.4 | 11,000 | 1.1 | 7,983 | 2.91 | 4.97 | 50.69 | 4.15 | 59.5 | 18.12 | 185 | 7.7 |
| RS-360SH-3548 | 2.4 - 9.0 | 9 | 25,000 | 0.8 | 20,621 | 3.77 | 8.40 | 85.63 | 18.13 | 53.4 | 47.93 | 489 | 17.74 |
|
|||||||||||||
