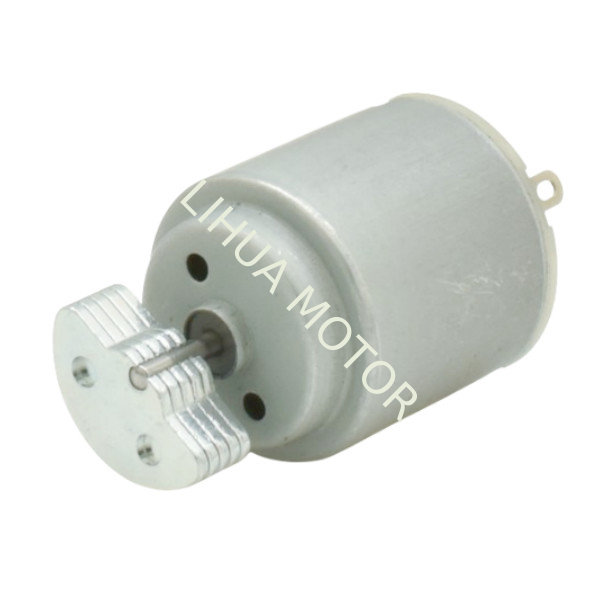

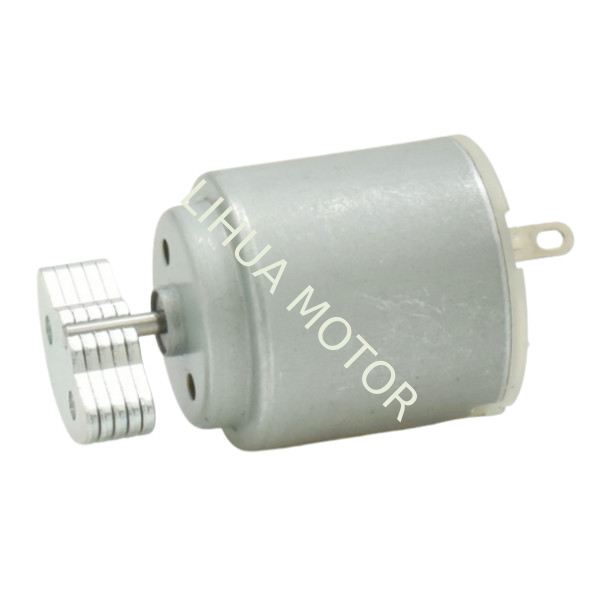

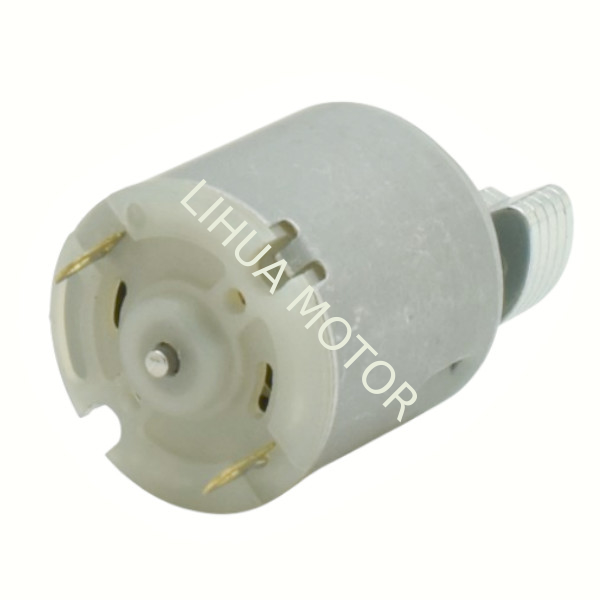

260 Brushed Motor Tiny Vibration Motor 24mm 10000 Rpm High Rpm DC Motor For Massager
-
Highlight
260 Brushed Motor
,Tiny Vibration Motor 24mm
,10000 Rpm High Rpm DC Motor
-
Model TypeRC-260SA-18130
-
Motor Shaft Diameter2mm
-
CommutatorCarbon Brushed
-
Rated Voltage3V / Can Be Custom
-
No-load Speed6900rpm
-
Stall Torque48g.cm
-
Customized ServiceVoltage, Speed, Current, Torque, Shaft Type, Wires And Connectors
-
ApplicationsDIY Toy/Hair Clipper/Massager/Electric Clocks
-
NameSmall Vibration Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001, CE ,RoHs, Reach ,SGS
-
Model NumberRC-260SA/RC-260RA
-
Document
-
Minimum Order Quantity2000PCS
-
PriceNegotiation
-
Packaging DetailsFoam Box
-
Delivery Time30days-45days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union,MoneyGram
-
Supply Ability12000PCS/Day
260 Brushed Motor Tiny Vibration Motor 24mm 10000 Rpm High Rpm DC Motor For Massager
24mm 10000 Rpm 260 Brushed Motor Tiny Vibration Motor High Rpm DC Motor For Massager
Technical Specifications
Motor Type: RC-260 Brushed Motor
Rated Voltage: 1.5V–6V DC.
Shaft Diameter: 2.0mm.
Shaft Length: 8±0.5mm.(Or can custom shaft length as you need)
Motor Body Length: 26.9mm. (Without terminal and shaft length)
Mounting Hole Pitch: About 11.5mm.
Mounting Hole Diameter: 2.3mm.
Motor Step Height:2mm
Motor Front Step Diameter:6.15mm
Motro End Cover Diameter:8.5mm
Motor Terminal Distance:18.5mm
Weight: 28g.
24mm 10000 Rpm 260 Brushed Motor Tiny Vibration Motor Dimension
Notes:
Custom Service
1.Motor Direction of rotation can be design (CCW/CW)
2.Out shaft Length (L) can custom
3.Length / Materials of motor cables can be customized
4.Voltage ,Current, speed,torque ,power
5.Above RC-260 motor sheet is just reference,model name also can be change as your need.
24mm RC260 High Speed Small DC motor Datasheet
- Rated Voltage: 1.0–12V (Can be custom)
- RC-260SA Motor Size: 26.9×24.4mm(L*D)
- Motor Leads/Wires Length: Can be design as your need
- Brush Series:Long-life carbon brushed motor
| Model | Voltage | No Load | RATED LOAD | Stall | |||||
| Operating range | Rated | Speed | Current | Speed | Current | Torque | Torque | Current | |
| V/DC | RPM | A | RPM | A | g.cm | g.cm | A | ||
| RC-260SA-2670 | 1.5V-3.0V | 3.0V | 12300 | 0.20 | 10100 | 0.97 | 15 | 90 | 4.73 |
| RC-260SA-18130 | 1.5V-4.5V | 3.0V | 6900 | 0.09 | 5000 | 0.37 | 9.5 | 48 | 1.4 |
| RC-260RA-08560 | 9V-15V | 12V | 6200 | 0.03 | 4650 | 0.09 | 10.0 | 40 | 0.27 |
| RC-260SA-12300 | 6V-15V | 9V | 6550 | 0.06 | 5110 | 0.22 | 19.7 | 90 | 0.79 |
| RC-260RA-2295 | 3-4.5V | 3V | 9400 | 0.15 | 7610 | 0.64 | 13.3 | 70 | 2.7 |
|
|
|||||||||
RC260 carbon brush vibration motor for massage pillow
With economy development,people pay more attention on personal health.Electric machines are become common in daily life.So the requirments for mini motor used in massage pillow,
vibrator massager,automated beauty instrument , massage cushion.
Massage pillow Motor Specifications:
Rated Voltage: 3V
Rated Power: 0.2W - 4.3W
No-Load Speed: 105,000 RPM
Rated Torque: 12.45 N·cm
Features of Lihua Motor's RC260 for Massage Pillow Applications:
Compact and Efficient Design: The RC260 motor is designed to be small and lightweight, making it perfect for compact massage pillows. Despite its size, it delivers high-speed vibrations at up to 105,000 RPM, ensuring a powerful massage experience with minimal space requirements.
Precise Vibration Control: With a rated power range of 0.2W to 4.3W, the motor provides flexible vibration intensity, allowing manufacturers to tailor the motor's performance to specific massage pillow designs. Whether for gentle relaxation or a more intense therapeutic massage, the RC260 can be calibrated to meet varying consumer needs.
Note:Due to different massager performance,we accepet OEM /ODM service for you.Above solution 260 vibrating motor is one of our customers requirment.
