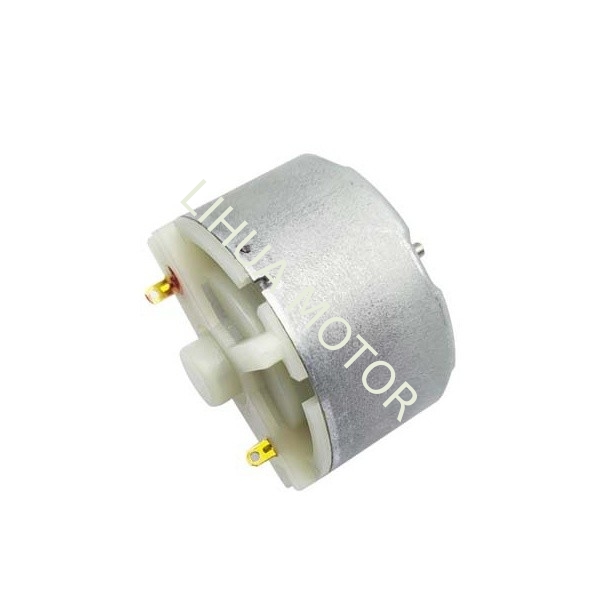

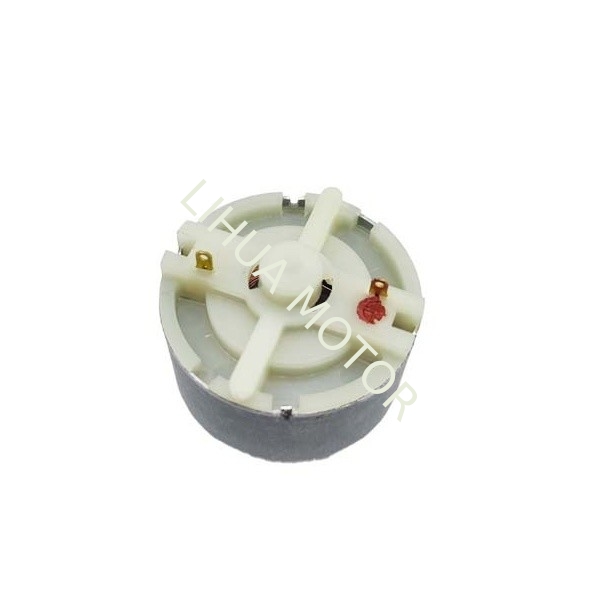

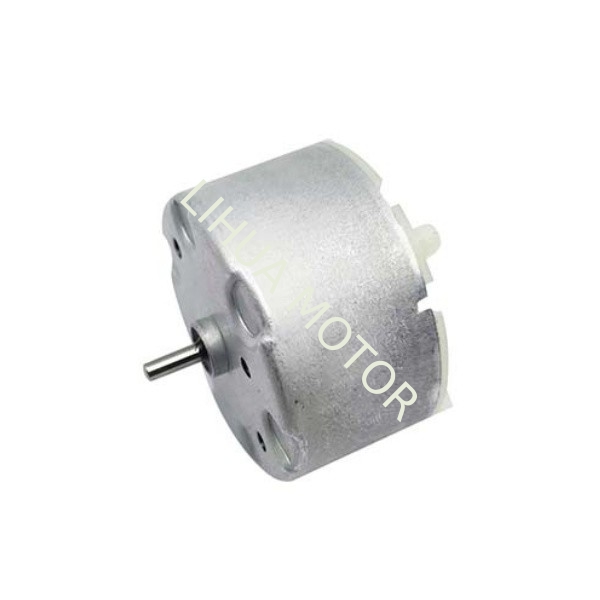

32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
-
Highlight
32mm Brushed DC Electric Motor
,Brushed DC Electric Motor 3V
,1100 Rpm Electric Motor
-
NameBrushed DC Electric Motor
-
Motor TypeRF-500TB-10660
-
DirectionClockwise/counter-clockwise Rotation (CW&CCW)
-
Working Range3V
-
Shell Stator SizeΦ32* L 19.5 Mm(Φ 1.26 Inch * 0.77 Inch)
-
Out Shaft DiameterΦ2.0mm(0.079 Inch)
-
Shaft LengthFree Customization
-
No-load Speed1100Rpm
-
Motor ApplicationsApplication: Smart Trash Can / Waste Bin / Stirring Cup / Household Appliance / Portable Electric Sprayer / Phlegm Suction Machine
-
Place of OriginDongguan,Chia
-
Brand NameLihua Motor/ HCS Motors
-
CertificationISO9001/CE/RoHs/Reach/IATF16949
-
Model NumberRK-500TB-10660
-
Document
-
Minimum Order Quantity3000PCS
-
PriceNegotiation
-
Packaging DetailsCarton
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union,MoneyGram
-
Supply Ability15000PCS/Day
32mm 1100Rpm Brushed DC Electric Motor 3V For Automatic Watch Shaking
RF-500TB-10660 DC3V 1100Rpm 32mm DC Brushed Motor For Automatic Watch Shaking
Technical Specifications
Motor Type:RF-500TB-10660
Voltage:1V-5V DC
Rated Volt:3V
Speed: 1100±110 RPM
Diameter: 32mm
Stall Torque:13.0 g-cm (min.)
Shaft Diameter: 10.5±0.3mm
Shaft Length:9mm (customizable)
Current (No Load): ≤15mA
Torque: 40mN·mNoise Level <45dB: Ideal for household and office environments.
Wide Temperature Range: Operates efficiently in -20°C to 70°C environments.
Extended Lifespan: Engineered for 5,000+ hours of continuous operation.
Weight: 40
RF-500TB DC Brushed Motor Paramter Reference
|
Model
|
Voltage |
No Load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Current |
Speed |
Current |
Speed |
Torque |
Output |
Current |
Torque |
|
|
A |
RPM |
A |
RPM |
g·cm |
W |
A |
g·cm |
||
|
RF-500TB-19250 |
3 |
0.031 |
3100 |
0.17 |
2617 |
12.55 |
0.34 |
0.92 |
80.52 |
|
RF-500TB-18280 |
6 |
0.033 |
5640 |
0.22 |
4917 |
14.75 |
0.74 |
1.49 |
115.06 |
|
RF-500TB-19220Y |
2.7 |
0.036 |
3011 |
0.18 |
2513 |
11.73 |
0.3 |
0.91 |
70.85 |
|
RF-500TB-20215 |
3 |
0.04 |
3550 |
0.2 |
2965 |
12.46 |
0.38 |
1.01 |
75.61 |
|
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm |
|||||||||
RF-500TB-10660 DC3V 1100Rpm 32mm DC Brushed Motor Dimension
Notes:
1.Motor Body Length:17.5mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:32mm
5.Fixed Aperture:M2.5*0.45mm
6.Step Height: about 1.9mm
7.Step diameter: about 6.2mm
8.Distance between two fixed aperture:22±0.1mm
RF-500TB Motor – Versatile Applications in Modern Devices
The RF-500TB motor is a compact and high-performance motor designed for a wide range of applications. Below are examples of its use in aroma diffusers, robot vacuum cleaners, warning lights, and milk frothers:
RF-500TB Motor Applications in Common Devices
|
Product |
Application Scenario |
Function |
Typical Motor Parameters |
Additional Notes |
|
Aroma Diffuser |
Drives fan or ultrasonic atomizer |
Helps disperse fragrance mist evenly |
Rated Voltage: 3V–6V Speed: 3000–7000 RPM |
Low noise operation, suitable for quiet environments; stable airflow output. |
|
Robot Vacuum Cleaner |
① Drives side brush ② Main brush roller ③ Vacuum fan |
Provides power for sweeping, brushing, and suction |
High-speed version: ~8000–10000 RPM; Can be used with gear reduction system |
RF-500TB often used for side brush or fan impeller; for main brush, often paired with gearbox. |
|
Warning Light (Rotating Beacon) |
Drives the rotating dome or platform |
Creates rotating flashing light effect |
3V–12V, Moderate speed (~3000–5000 RPM), continuous duty motor |
Low noise, continuous running capability; torque sufficient to rotate light assembly. |
|
Milk Frother |
Spins the frothing whisk or stirrer head |
Creates rich milk foam |
High-speed version: 7000–12000 RPM (with light torque) |
RF-500 series commonly used in handheld or small frothers; good balance between speed and size. |
