5V Small Brushless DC Motor Low Speed 12 Slots Mini Drone Motors 23mm

 5V Small Brushless DC Motor Low Speed 12 Slots Drone Motor 23mm Mini Brushless

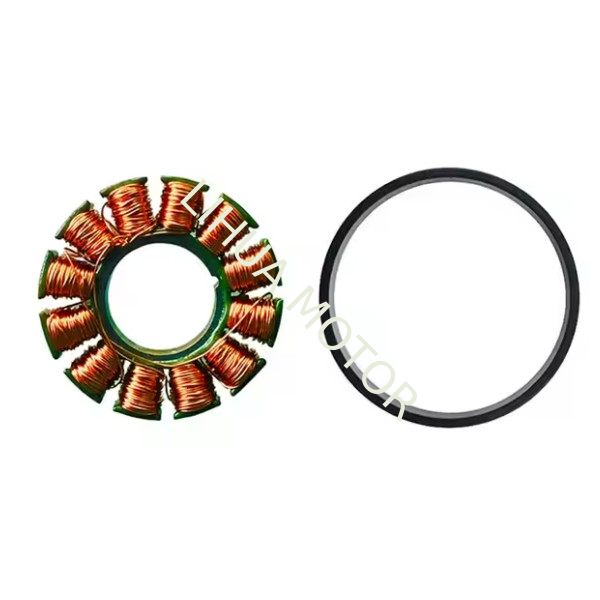

| - Model Number: 12174 Brushless Stator Motor
| -  Stator Size : Φ 22.5 mm
| - Rated Voltage: DC 5V

| -No-load Speed:820±82%rpm

| -No-load Current≤24mA
| -  Stator resistance value R:38.13-43.87Ω
| - Polar difference △≤1.0Ω
| - Stator inductance value:8.84-10.16mH

| -Stator Slots:12 slots
| - Commutation: Brushless-PWM drive
|-  PWM pulse wide speed range
|-  Clockwise/counter-clockwise rotation (CW/CCW)
|-  Low EMC |-  Low noise
|-  Long lifespan: up to 20000hours

|-  Customization Options:Volt,Speed,Torque,Resistance Value,Slots

Brushless DC Electric Motor 12 Slots Parameter Datasheet Dimension &2D Drawing

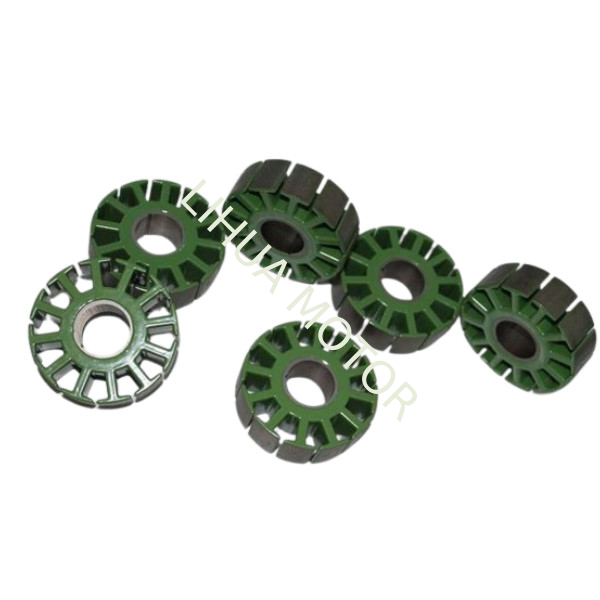

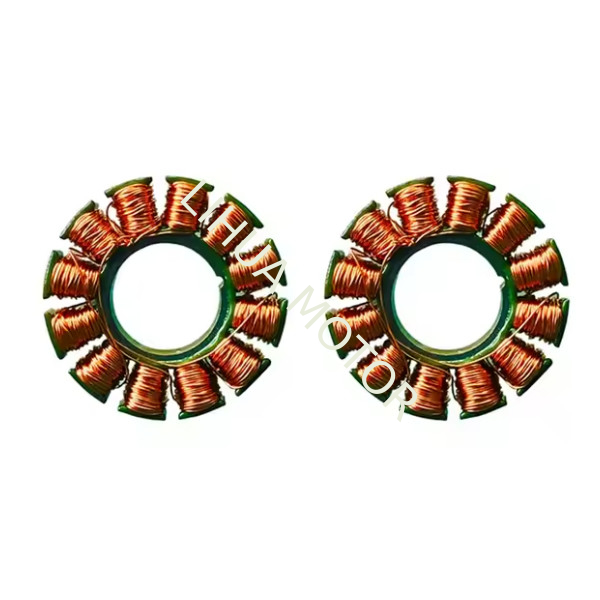

Brushless Drone Motor Stator Winding Services

We specialize in providing high-quality stator winding services for drone and UAC motors, catering to both prototype development and mass production needs. Our services include:

• Manual Stator Winding: For prototype samples, we offer precise manual winding of copper wire coils, ensuring meticulous attention to detail and customization.

• Automatic Stator Winding: For large-scale production, we utilize advanced automated winding technology to ensure consistency, efficiency, and high output.

Customization Options:

• Number of Turns: Tailored to meet specific performance requirements.

• Wire Size: Customized to optimize motor efficiency and power output.

F&Q

Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.

Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?
A: Now we have more than 2,000 mini brushed motor. We have a strong advantage of OEM, just give us the actual mini micro motor or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 12 hours after we get your inquiry.

Q: What’s your MOQ?
A: Our all mini motors are produced according to our order, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
