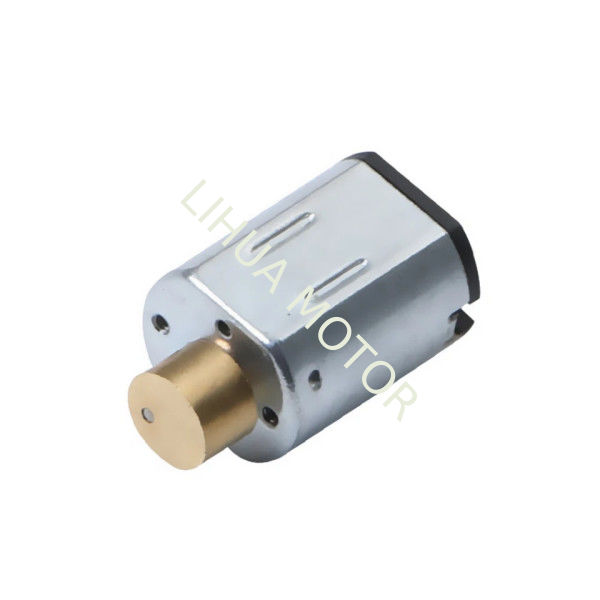

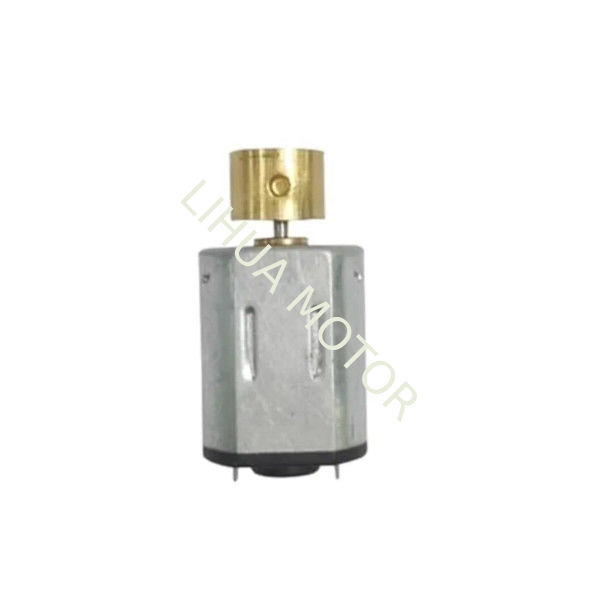

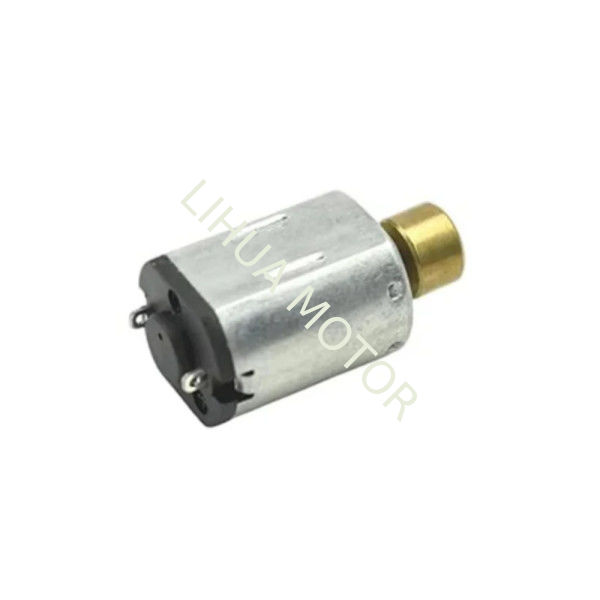

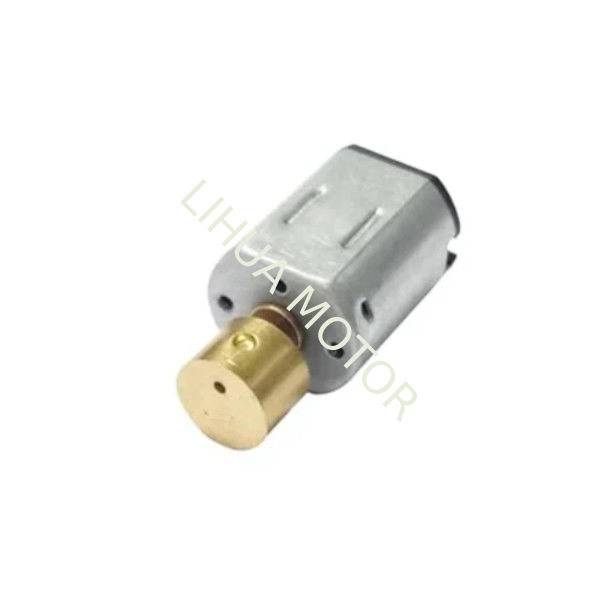

N20 Mini Motor Eccentric Rotating Mass Vibration Motor Compact Powerful Tiny Motor

N20 Mini Motor Eccentric Rotating Mass Vibration Motor Compact Powerful Tiny Motor

N20 Mini Vibration Motor – Technical Overview

Model: N20 Vibration Motor
Type: Small Metal Brushed DC Motor | Permanent Magnet Design
Standard N20 Dimensions:

• Motor Diameter: 12mm±0.05mm
• Thickness: 10mm
• Body Length (excl. shaft): 15mm±0.05mm
• Total Length (incl. shaft): 15 + L mm
• Axis Diameter:1.0mm
• Screw Holes Distance:8.5mm
• Screw Holes Size:1.4*0.3mm
• Ultra-compact dimensions:12mm × 10mm × 15mm

Key Features & Performance of the N20 Vibration Motor

Compact & Powerful
As a mini brushed vibration motor, the N20 model features an ultra-compact design (12mm × 10mm × 15mm), making it ideal for integration into space-constrained applications such as bed vibration systems, handheld devices, and portable gadgets.

• High Torque Output: Capable of delivering strong, precise vibrations—even in micro-sized setups.

Wide Voltage & Speed Range

• Operating Voltage: Supports DC 1V to 12V (standard options: 3V / 6V / 12V).

• Speed: variable speed vibration motor range from 10,000 RPM (3V, 0.02A) up to 15,000 RPM (3V, 0.04A).

• Power Output: Delivers between 0.2W and 0.8W (max), depending on voltage and load conditions.

Durable & Quiet Operation

• Sealed Construction: The totally enclosed housing provides resistance to dust and moisture, ensuring longer motor life.

• Low Noise: ≤45dB Optimized for quiet performance, making it suitable for noise-sensitive environments.

Customizable Options

• Shaft dimensions, wire length, connectors, and mounting brackets can be customized.

• Voltage, speed, and mechanical configurations can be tailored to meet specific application requirements.

N20 Mini Vibaration Motor Dimensions

Applications for This Mini Brushed Motor

• Adult Wellness Devices: Compact vibration modules for personal care products.
• Therapeutic Tools: Handheld massagers, wearable therapy devices.
• Smart IoT Gadgets: Haptic feedback in fitness trackers, smartwatches, or alert systems.
• Industrial Automation: Precision sorting equipment, vibration feeders.

Why Choose Lihua Tiny Motor?

• Space-Saving Design: Perfect for motors mini applications where size constraints are critical.
• Energy Efficiency: Optimized power consumption extends battery life in portable devices.
• Plug-and-Play Integration: Pre-soldered terminals or wires for quick installation.
• Certifications: RoHS & REACH compliant.
• Custom OEM/ODM Support: Modify voltage, RPM, or housing materials to meet your specs.
• Ideal for: Engineers seeking a reliable small brushed motor that balances power, size, and quiet operation.
