RK-520TB-22205 12V 11000RPM Mini DC Pump Motor Carbon Brush 2mm Shaft for Diaphragm Pump
-
Highlight
12V 11000RPM mini DC pump motor
,carbon brush DC motor 2mm shaft
,brushed DC motor for diaphragm pump
-
Motor ModelRK-520TB-22205
-
Motor TypePermanent Magnet DC Motor With Carbon Brush
-
Rated Voltage12V DC
-
No Load Speed11000 RPM
-
No Load Current93 MA
-
Motor Body31mm X 33mm (L X Dia)
-
Shaft Diameter2mm
-
Shaft Length9.3 +/- 0.3mm
-
Duty CycleContinuous With Pump Air Cooling
-
Pump Pressure30 - 60 KPa With Matched Diaphragm Head
-
ApplicationMini DC Diaphragm Pump, Air Pump, Vacuum Pump, Inflator
-
CustomizationShaft, Winding, Lead Wire And Connector On Request
-
Place of OriginDongguan, Guangdong, China
-
Brand NameHCS Motors
-
CertificationISO 9001, IATF 16949, RoHS, REACH
-
Model NumberRK-520TB-22205
-
Minimum Order Quantity2000 Pieces
-
PriceNegotiation
-
Packaging DetailsAnti-static bag with shockproof foam, export carton, 200 pieces per carton
-
Delivery Time35-45 days after deposit, 7 days for samples
-
Payment TermsT/T, L/C, D/A, D/P, Western Union
-
Supply Ability30000 Pieces per Day
RK-520TB-22205 12V 11000RPM Mini DC Pump Motor Carbon Brush 2mm Shaft for Diaphragm Pump
RK-520TB-22205 Mini DC Pump Motor 12V 11000RPM
High speed carbon brush motor sized for mini DC diaphragm and air pump heads with continuous duty demand.

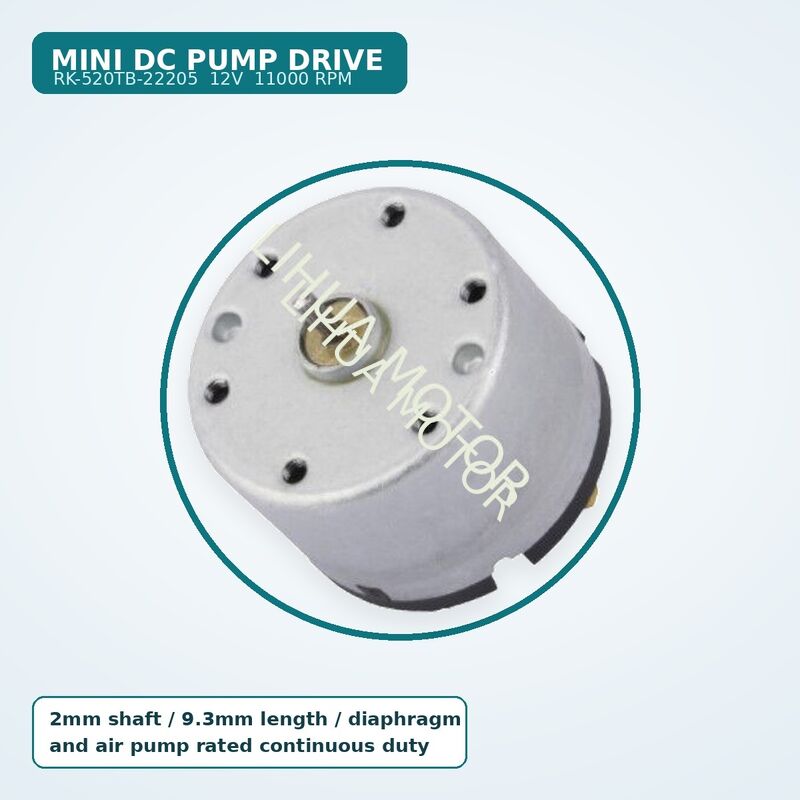

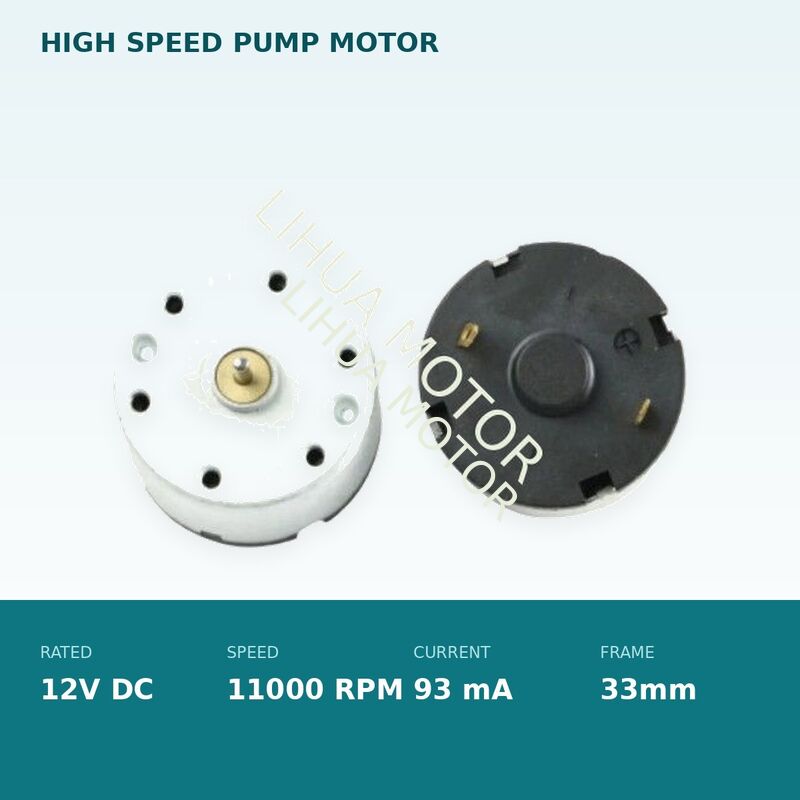

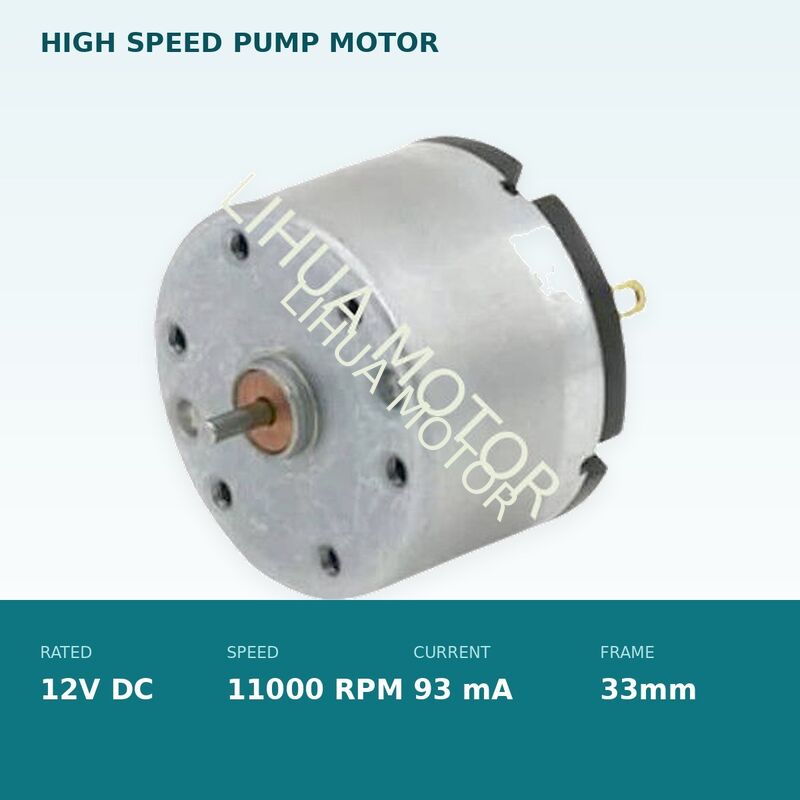

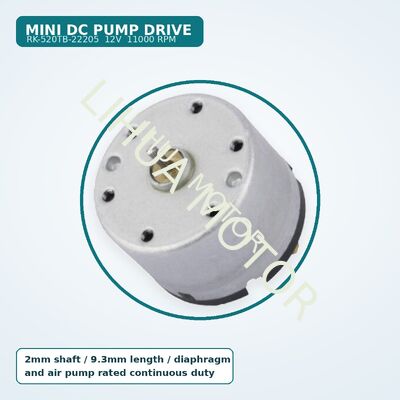

12V DC11000 RPM93 mA33mm DiaPump DriveProduct Overview
The RK-520TB-22205 is the high-speed winding of the RK-520TB platform, made for pump duty. At 12V DC it reaches 11000RPM with a no-load current of 93mA, which is the speed band mini DC diaphragm pumps need to build 30-60 kPa of pressure from a 33mm motor frame. Compared with a lower-speed winding, the higher RPM lets the pump head reach working pressure faster on start-up and hold flow better as the discharge line loads up.
Pump applications punish a motor differently from lid or actuator duty: the motor is started against a closed outlet, runs hot, and is expected to keep going for minutes at a time. The 22205 winding is paired with a carbon brush set and bearings chosen for that pattern - the brushes are seated at high speed before packing, and the shaft and bushing clearance is tightened so the 2mm shaft does not orbit under pump-side radial load.
Key Specifications
| # | # |
|---|---|
| Motor model | RK-520TB-22205 |
| Motor type | Permanent magnet DC motor, carbon brush commutation |
| Rated voltage | 12V DC |
| No-load speed | 11000 RPM |
| No-load current | 93 mA |
| Motor body | 31mm x 33mm (L x Dia) |
| Shaft diameter | 2mm |
| Shaft length | 9.3 +/- 0.3mm |
| Duty | Continuous with pump-side air cooling |
| Typical pump pressure | 30 - 60 kPa with matched diaphragm head |
Matched to Mini DC Pump Builds
- High speed winding brings a diaphragm head to working pressure within the first second of start-up.
- Carbon brush commutation keeps the drive simple - two wires, no controller, no Hall sensor.
- Bearing clearance set for radial load from the eccentric and connecting rod, not just free spinning.
- Long 9.3mm shaft supports a fan or coupling without an extra extension.
Applications
Mini DC diaphragm pumps, air pumps, vacuum pumps, pressure pumps for massage chairs and mattresses, aquarium and hydroponic air pumps, medical sampling pumps and portable inflators built around a 33mm motor frame.
Quality, Packing and Delivery
- Each motor run-in at full speed, then screened for no-load speed, current and commutation noise.
- Brush life verified at 500 hours continuous; pump-side endurance tested with the customer head where supplied.
- RoHS and REACH compliant, ISO 9001 and IATF 16949 production system.
- Anti-static bag, shockproof foam, 200 pieces per export carton.
- Samples 7 days; production 35-45 days after deposit.
