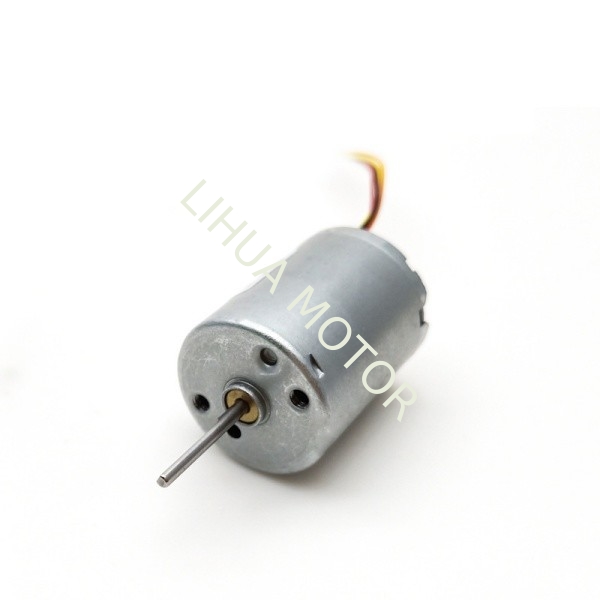

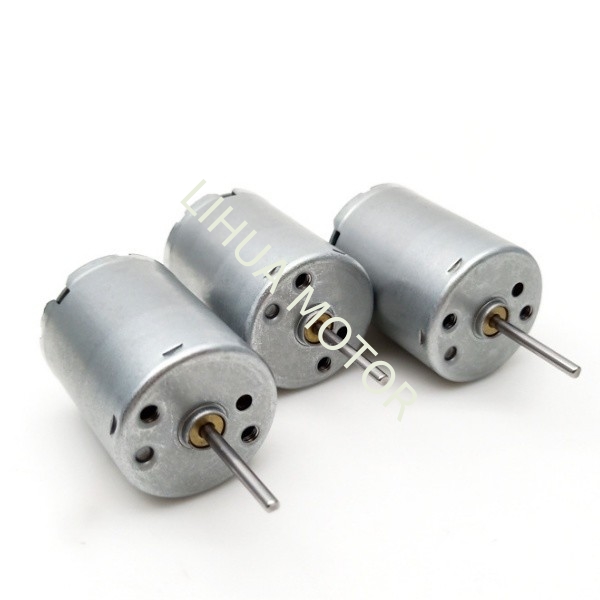

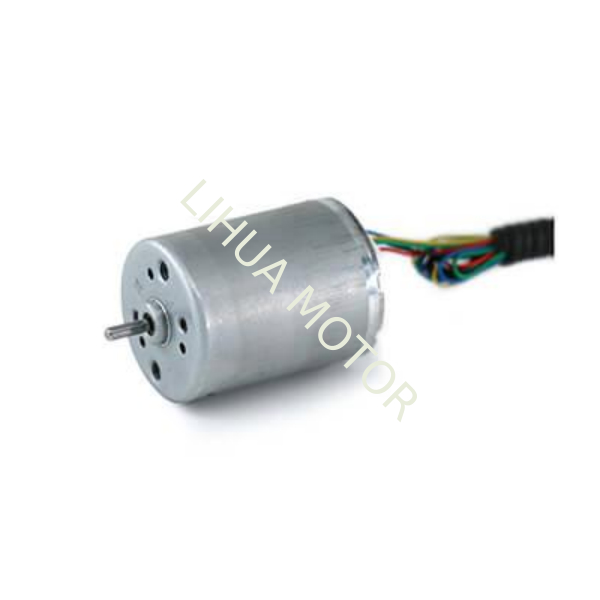

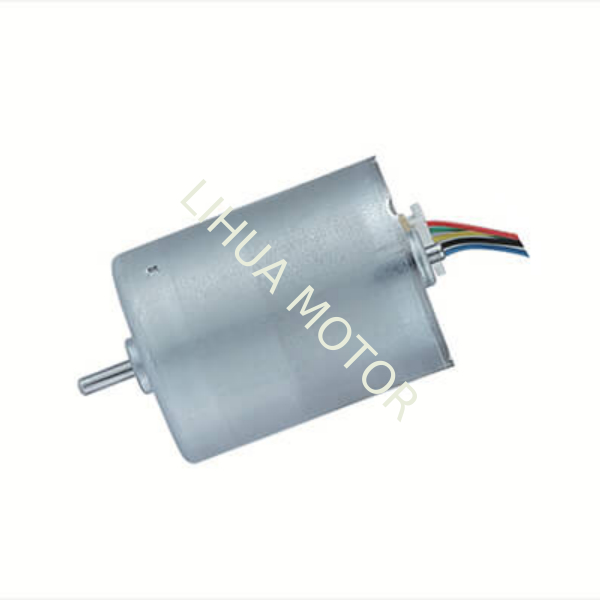

370 24V Brushless DC Electric Motor , PWM Drive DC Motor Low Noise

 370 24V Brushless DC Electric Motor PWM Drive

| - Model Number: BLDC370/BL2430 (BL:brushless motor)
| - Shell Stator Size : Φ 24.4* L 30.8 mm
| - Shaft : Φ 2mm[0.078 inch]  screw lead, D shape, etc.
| - Shaft length(L) free customization
| - Rated Output Power: 2W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 75 gf-cm
| - Rotor: Strong magnet

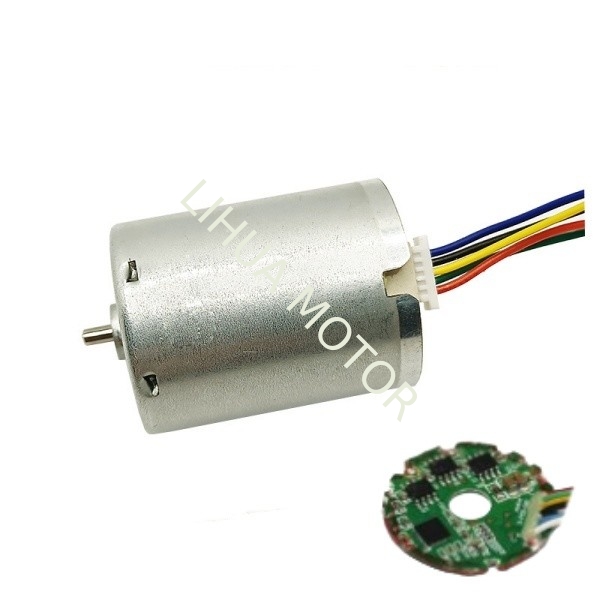

| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
|-  PWM pulse wide speed range
|-  Clockwise/counter-clockwise rotation (CW/CCW)
|-  Low EMC |-  Low noise
|-  Long lifespan: up to 20000hours

BLDC370/BL2430 Brushless DC Electric Motor PWM Drive Parameter Datasheet Samples &2D Drawing

BLDC370 Brushless DC Electric Motor PWM Drive Micro Motor Specifications and Features

1. PWM Adjustable Speed:

   • Speed Range: 3500-8500 RPM (adjustable)

   • Voltage Range: 3V-12V DC

   • Control Method: PWM signal

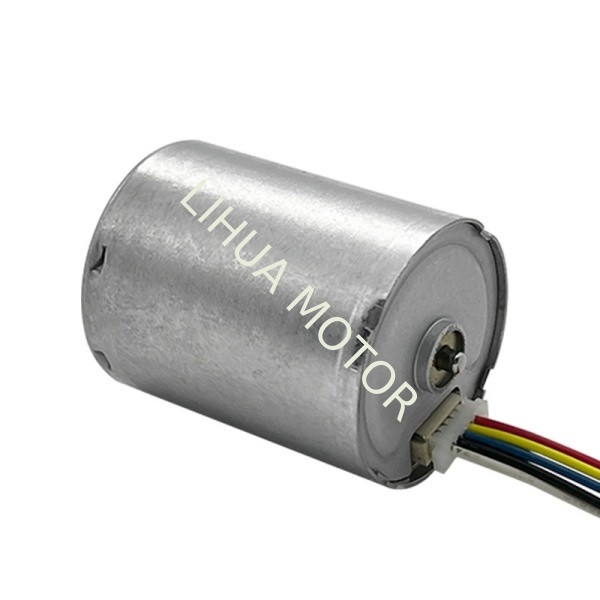

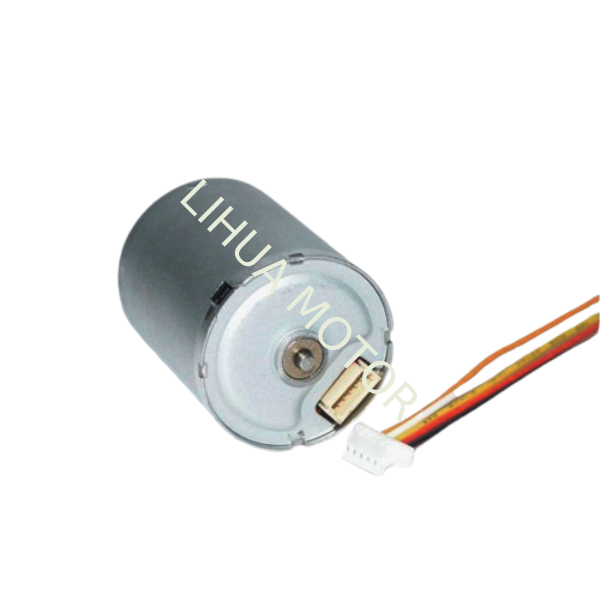

2. 6-Pin Interface End Cover:

   • Pin Configuration:

     • Pin 1: Power (+)

     • Pin 2: Output

     • Pin 3: Direction Control Input

     • Pin 4: Speed Feedback Signal

     • Pin 5:  Ground (-)

     • Pin 6: PWM Signal Input



3. Brushless Design:

   • Noise Level: ≤45dB

   • Electromagnetic Interference (EMI): Minimized to meet CE and ROHS standards

   • Lifespan: >10,000 hours continuous operation



F&Q

Q: Do you supply BLDC370 Brushless DC Electric Motor PWM Drive-related accessories like encoders, PCBs, connectors, or solder wires?
A: Our primary focus is motor production, not accessories. However, for customers with significant annual demand, we can consult our engineers to arrange accessories as part of the service.

Q: Can I request BLDC370 motor samples before placing an order?
A: Absolutely. Many micro motor manufacturers, including us, offer samples for testing and evaluation. This ensures the motor aligns perfectly with the requirements of your application before committing to a full order.

Q: Is there a minimum order quantity (MOQ) for BLDC370 Brushless DC Electric Motor PWM Drive?
A: Yes, we do have an MOQ of 1000 units due to the low profit margins of motor manufacturing. We appreciate your understanding on this matter.

Q: What payment options do you accept?
A: Our payment options include cash, payment upon delivery, payment against shipping documents, and credit terms depending on the agreement.
