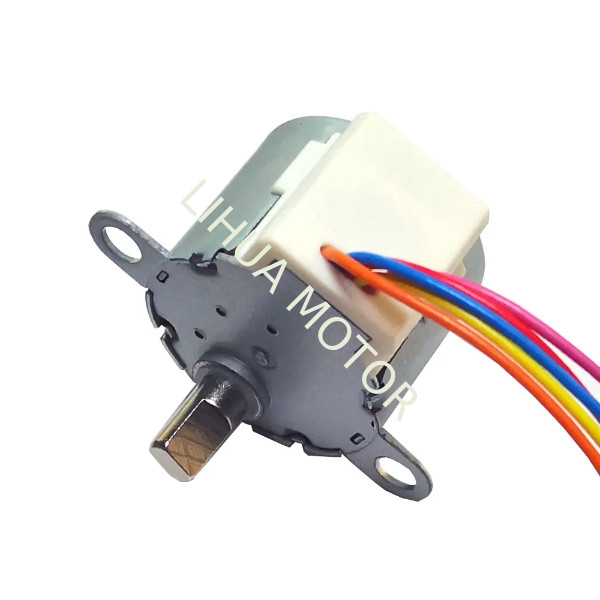

Compact Miniature Stepper Motor 24BYJ48 8 mm 4 Phase 5 Wire Stepper Motor

24BYJ48 4 Phase Miniature Stepper Motor 5 Wires 8 mm,this 24mm diameter, 19mm length micro DC

stepper gear motor is a compact yet powerful solution designed for applications requiring precise motion control and high torque. Featuring low-speed output, silent operation, and compliance with EU environmental and energy efficiency standards, it is both efficient and eco-friendly. The integration of a gear reduction system enhances performance by increasing load torque and refining step angles for greater control. With customizable gear ratios (16:1, 25:1, 64:1), this motor is ideal for automation systems, smart home devices, medical equipment, and robotics. Its reliability, precision, and versatility make it a perfect choice for demanding and dynamic environments.

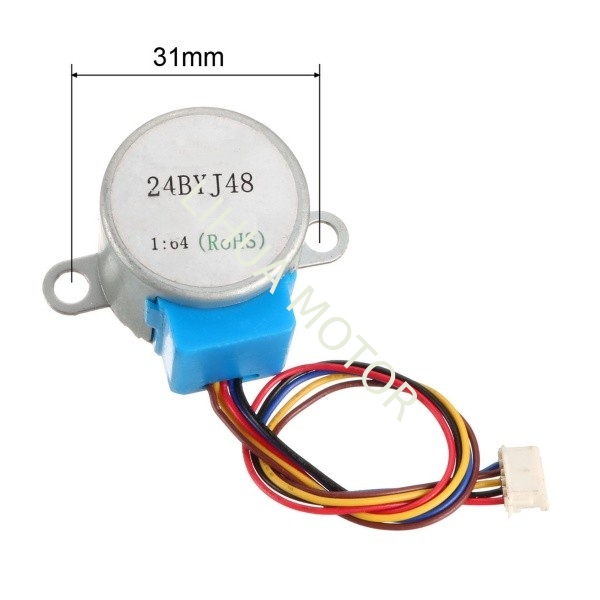

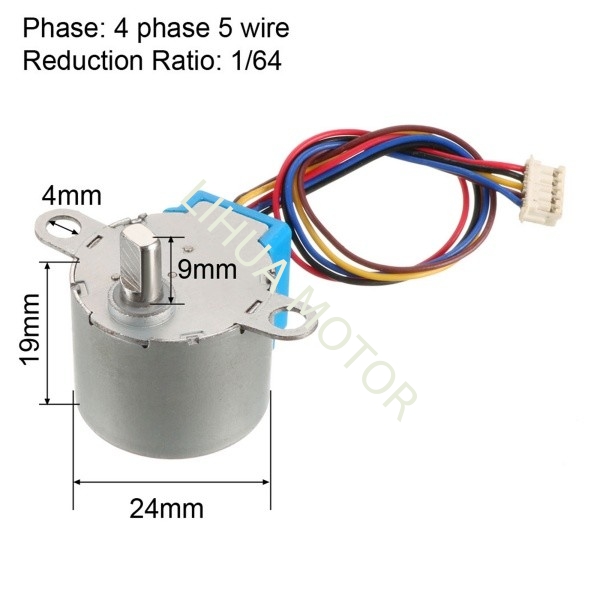

24BYJ48 4 Phase Miniature Stepper Motor 5 Wires  Datasheet and Size

Notes:

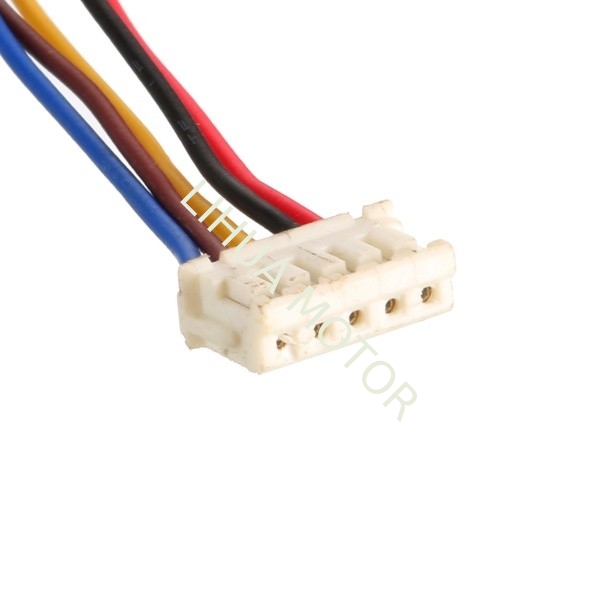

1. 130mm Cable Length/Colour can be custom as your need.

2. Lead Screw, gearbox, pinion gear, connectors, shaft modifications

Low cost, high efficiency, precise step angle, and low noise

24BYJ48 4 Phase Miniature Stepper Motor 5 Wires Typical Applications

The 24BYJ48 4 Phase Miniature Stepper Motor (5 Wires) operates based on precise step-by-step rotation, making it ideal for applications that require controlled and repeatable motion.

• Air Conditioner Swing Flaps

  • The stepper motor drives the oscillating motion of the swing flaps by rotating in controlled increments. This enables the flaps to distribute air evenly throughout the room. The motor’s precise movement ensures smooth and consistent oscillation for optimal airflow.



• Smart Security Cameras

  • In smart security cameras, the 24BYJ48 4 Phase Miniature Stepper Motor controls the pan-and-tilt motion, allowing the camera to rotate horizontally and vertically. The 4-phase design ensures fine adjustments and accurate positioning, enabling the camera to track movements and cover wide areas with precision.



• Printers

  • The stepper motor is used to control the movement of print heads and paper feeding mechanisms. Its precise stepping ensures accurate positioning of the print head for high-quality prints and smooth paper advancement through the printing process.



• Stage Rotating Lighting Equipment

  • In stage lighting systems, 24BYJ48 4 Phase Miniature Stepper Motor  enables the rotation and alignment of lights to achieve dynamic and precise lighting effects. By controlling the stepping angles, it allows smooth transitions and accurate targeting of light beams for dramatic stage effects.
