4 Phase Miniature Stepper Motor 28BYJ48 5V DC Low Speed High Torque Motor

28BYJ48 4 Phase Motors Miniature Stepper 5V DC Low Speed High Torque Motor

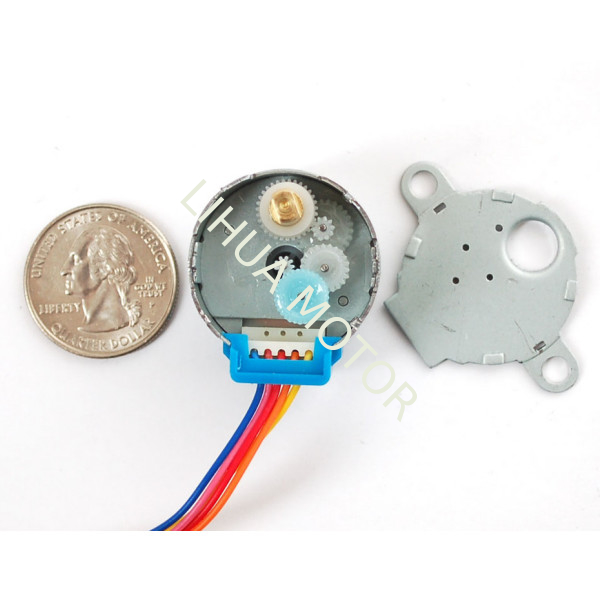

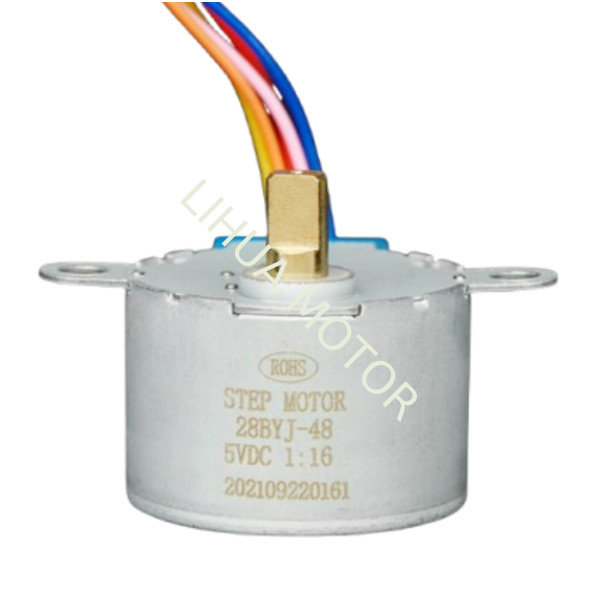

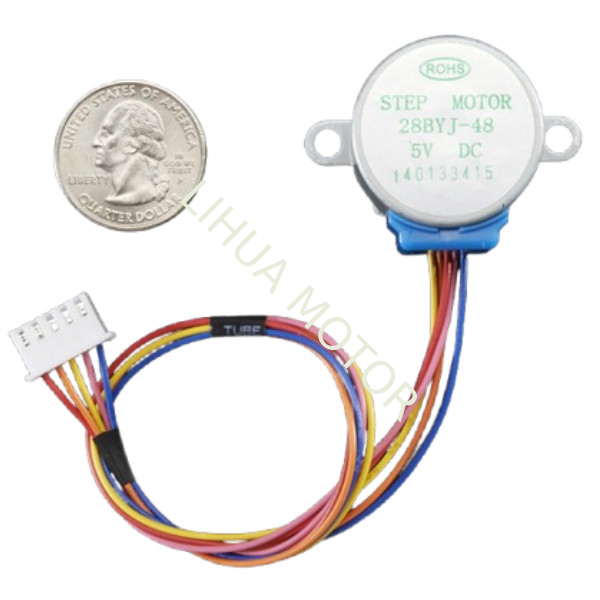

28BYJ48 4 Phase Motors  is an excellent first stepper motor, ideal for small projects and experimenting with stepper motors. This uni-polar motor features a built-in mounting plate with two mounting holes. It offers 32 steps per revolution (11.25 degrees), with an internal 1/16 reduction gear set (technically 1/16.128, but 1/16 is a close approximation). This results in 516.096 steps per revolution (32 × 16.128). The shaft is flattened, making it easy to attach components using a set-screw. It’s a perfect beginner stepper motor and pairs well with the Motor Shield for Arduino.

The gearing introduces a few important considerations. First, avoid using interleaved or micro-stepping control, as it will significantly slow down rotation. Instead, use single or double stepping. While the torque is relatively high, the motor is slower than un-geared steppers. We achieved a maximum speed of 12 RPM by over-driving it with 9V DC. At 5V, it’s best to keep the speed under 6 RPM.

28BYJ48 4 Phase Motors Miniature Stepper 5 Wires  Datasheet and Size

28BYJ48 Stepper Motor Customization options:

Model .: 28BYJ48

Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step

Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1

Customizable items:

Voltage:5~24V; gear ratio, gear material, output shaft design customizable

Technical Features & Application Highlights

The 28mm permanent magnet (PM) stepper motor is a highly efficient and precise motor designed for a wide range of applications. Below are its key technical features and application highlights:

Technical Features

• Winding Options: Available in bipolar configurations for versatile performance.

• Maintenance-Free: Brushless design ensures long-lasting operation with minimal upkeep.

• Cost-Effective: Compact design reduces integration costs while maintaining high performance.

• Digitally Controlled: Easy to interface with microprocessors for seamless integration.

• Open-Loop Control: No encoders required, simplifying system design and reducing costs.

Application Highlights

1. HVAC/R Valve Actuation:

   • Provides precise control for valve positioning in heating, ventilation, air conditioning, and refrigeration systems.

2. Office Automation:

   • Used in printers, copiers, and data storage devices for reliable and maintenance-free operation.

3. Medical Devices:

   • Powers saliva analyzers and hematology analyzers, ensuring accurate sample mixing and movement for reliable diagnostic results.

4. Robotics & Industrial Automation:

   • Enables precise motion control in robotic arms, welding machines, and automated systems.

5. Telecommunications:

   • Used in antenna positioning systems for accurate alignment and signal optimization.

6. Smart Security Products:

   • Integrated into security doors and automatic sensor doors for smooth movement and precise positioning.

7. Fiber Optic Fusion Splicers:

   • Controls the placement and alignment of optical fibers, ensuring high precision in fusion splicing.

8. Digital Electronics:

   • Powers autofocus cameras, smart bracelets, and other devices requiring smooth motion and precise positioning.
