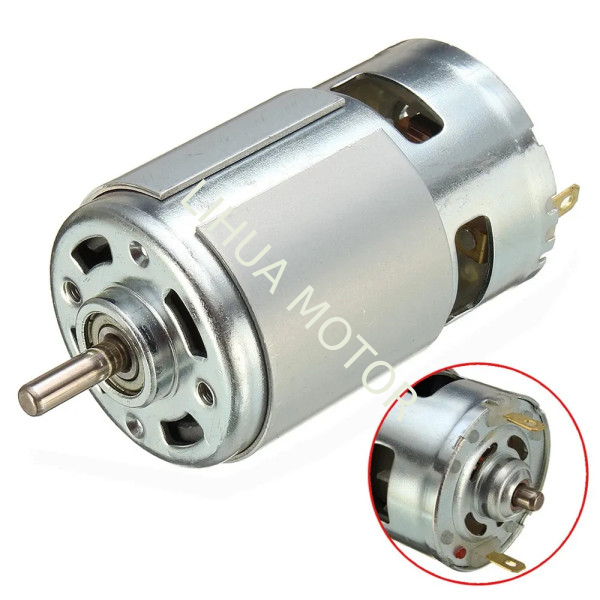

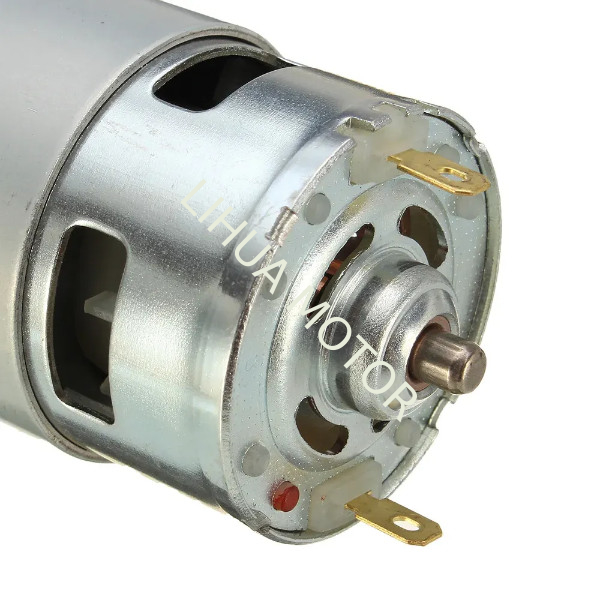

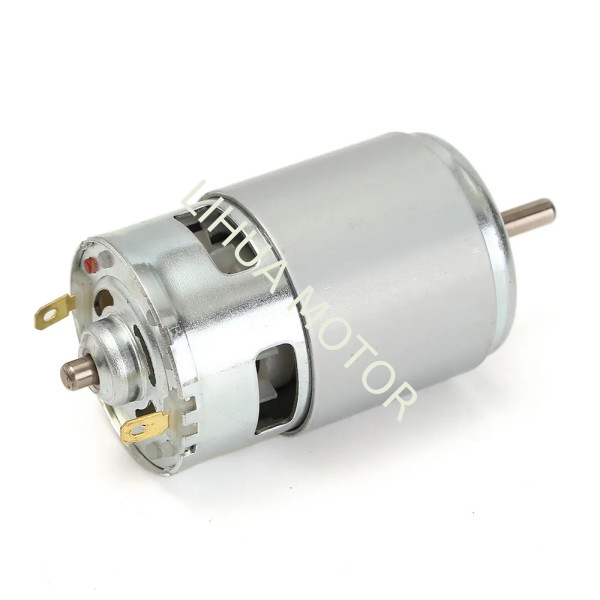

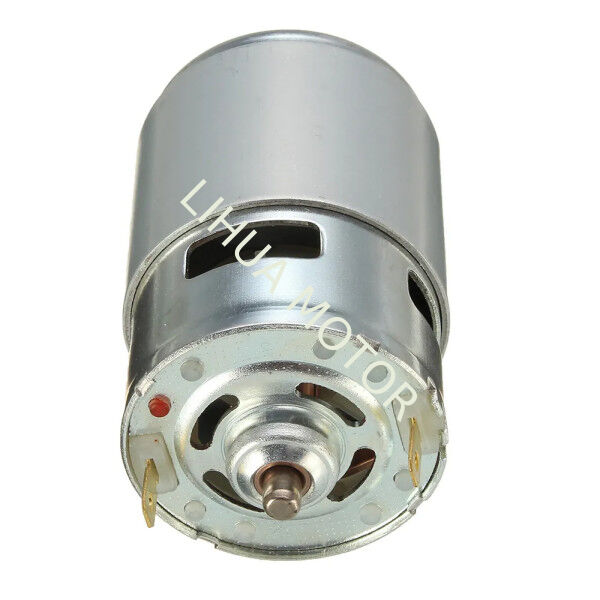

12V 775 High Torque DC Motor Permanent Magnet For Ball Bearing Belt Machine

12V 775 High Torque DC Motor Ball Bearing Belt Machine

Product Parameters

• Voltage Range: 6V-36V (Can custom)

• Speed:

  • 10,000 RPM (12V)

  • 20,000 RPM (24V)

• Torque: Acceptable for customization based on application requirements.

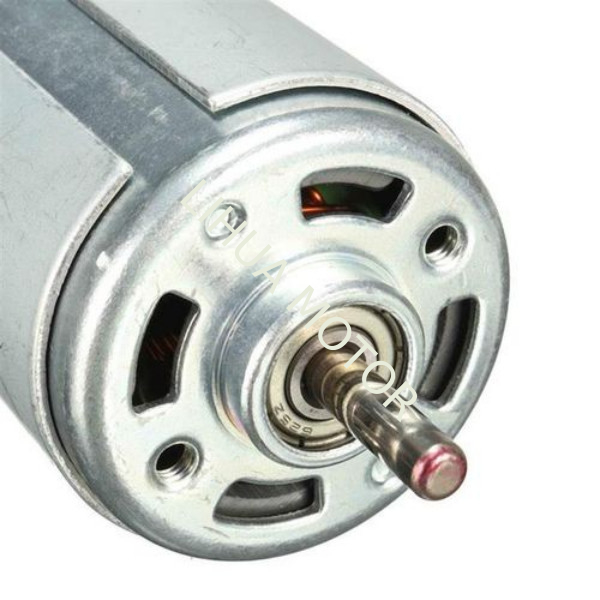

• Bearings: Front and rear double ball bearings ensure stability and durability.

• Motor Body Length: Standard 775 motor body length is 42mm*66mm(L*H) or  customizable according to specific design needs.

• Heat Dissipation: Equipped with an independent heat dissipation system, including a built-in fan for cooling during continuous operation.





775 High Torque DC Motor Ball Bearing Applications

The 775 motor has a wide range of applications due to its high power, durability, and ease of use:

• Household Appliances: Fruit juice machines, vacuum cleaners, paper shredders.

• DIY & Hobbies: Small drill tables, hand drill polishing machines, Buddha bead machines, engraving machines.

• Industrial Tools: Cutting machines, belt machines, lathes, milling machines, electric grinders.

• Garden Equipment: Lawn mowers.

• Robotics: Robot production and science education projects.

Key Features

1. Strong Power: Designed with high-quality materials, the motor provides robust power output to drive various mechanical equipment.

2. High-Speed Operation: With a speed of up to 20,000 RPM, it ensures rapid response and high sensitivity in applications.

3. Durability: High-quality bearings and gears enhance longevity and reliability, enabling stable long-term operation.

4. Versatility: Broadly applicable in DIY projects, technology education, and industrial manufacturing.

5. Easy Installation: Simplified design allows quick installation using just a few screws.



755 Motor Sampling Customized Process

To ensure the motor fits your specific needs, the following process is followed:

1. Initial Requirements Gathering:

   • Provide detailed specifications, including:

     • Required operating voltage and current.

     • Speed (RPM) and torque requirements.

     • Load conditions (e.g., weight, usage environment).

     • Application details (e.g., intended machinery or equipment).

   • If customization is required, provide drawings or design schematics.

2. Sample Development:

   • Based on provided requirements, a customized sample motor will be produced for testing.

3. Sample Testing:

   • The sample is tested to ensure compliance with performance and durability standards.

4. Feedback & Adjustment:

   • After testing, adjustments can be made to optimize performance based on customer feedback.
