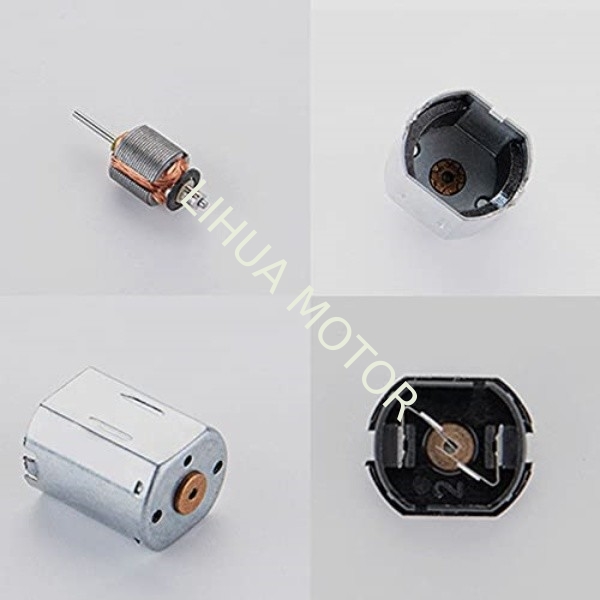

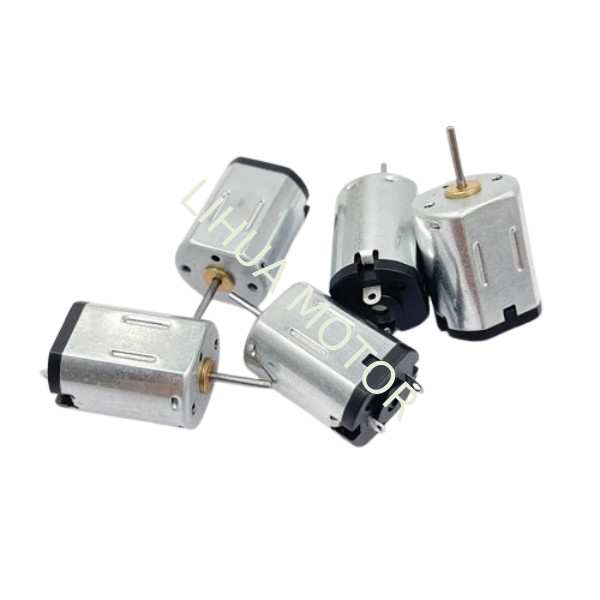

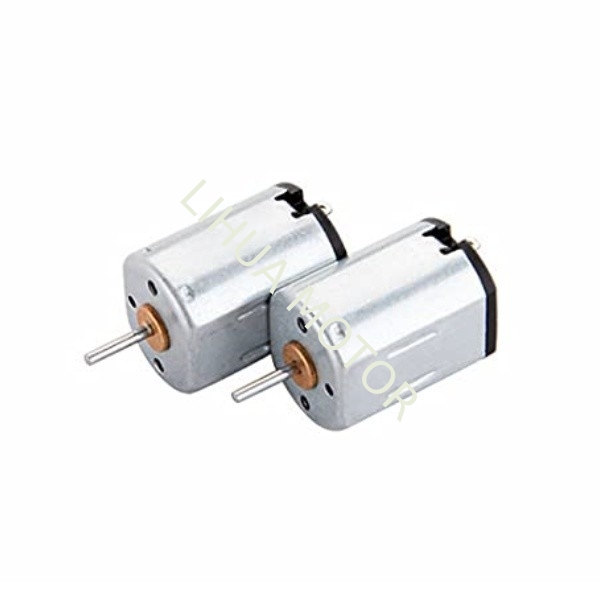

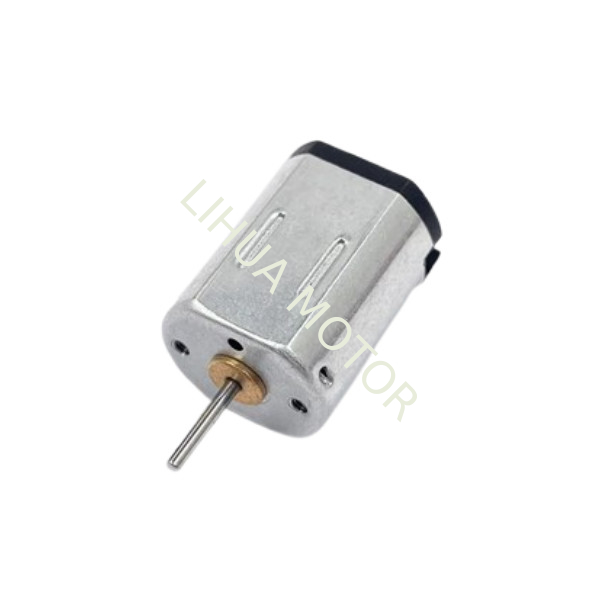

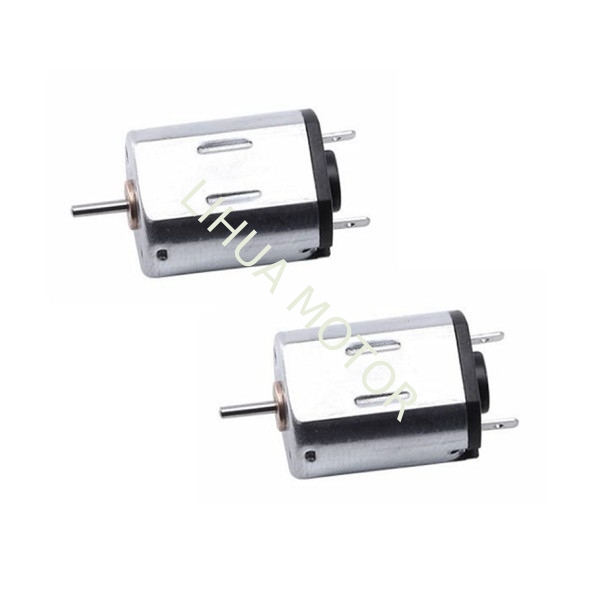

N20 Micro Motor 10mm*12mm 1mm Shaft Electric Motor For DIY Model

N20 Micro 10mm*12mm Electric Motor 1mm Shaft For DIY Model

• The new original high-intensity magnetic N20 micro motor with a precious metal brush has a torque of not too awful and a matching speed of 14800rpm to 29600rpm. The voltage range for this motor is dc 6v-12v.
• Excellent for swapping out broken or rusted DC motors.
• N20 Micro 10mm*12mm Electric Motor is utilised in robots, electronic devices, electronic games, electronic toys, and automotive toys, among other things.
• In the package are two pieces. Compact N20 DC 6V-12V High-Speed Micro Electric Motor with Dual Shaft Slot, 10mm x 12mm
• Lihua Motor appreciates every customer's suggestions for increasing sales; if you're not happy, please get in touch with us to find the best solution.
• Support N20 Motor ODM/OEM service; the original factory give you the best price you want.

Parameter Samples Datasheet for N20 Micro 10mm*12mm Electric Motor 1mm Shaft For DIY Model

N20 Mini Motor 1.5v 3.0v 6.0v  7.5v 12v Motor 2D Drawing

Popular N20 Mini Motor Types Recommendation:

• FF-N20-10140:
• Voltage:DC3.0V
• No-load Speed:12300rpm
• No-load Current:≤50mA
• Output Shaft Length:4.0±0.3mm
• R:4.4-4.8Ω
• Vs<0.6V
•
• FF-N20-1395:
• Voltage:DC2.4V
• No-load Speed:15600±5%rpm
• No-load Current:≤75mA
• Output Shaft Length:.4.0±0.3mm
• R:1.6-1.9Ω
• Vs<1.0V
•
• FF-N20-12120:
• Voltage:DC3.0V
• No-load Speed:15500±5%rpm
• No-load Current:≤58mA
• Output Shaft Length: 2.5±0.3mm
• R:2.6-3.0Ω
• Vs<0.6V
