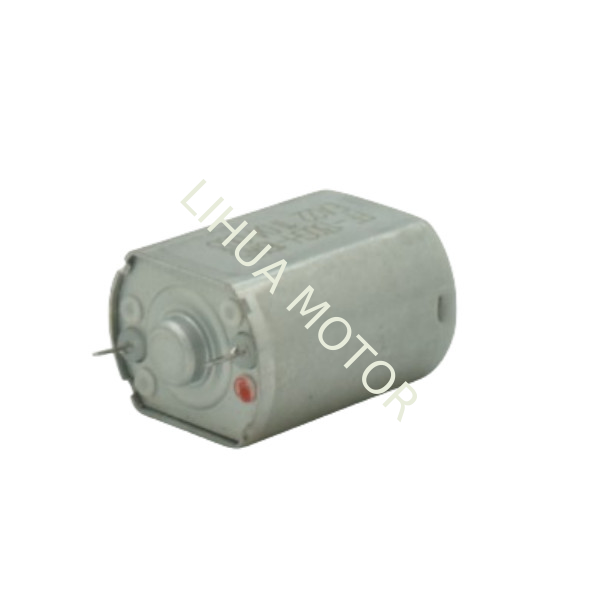

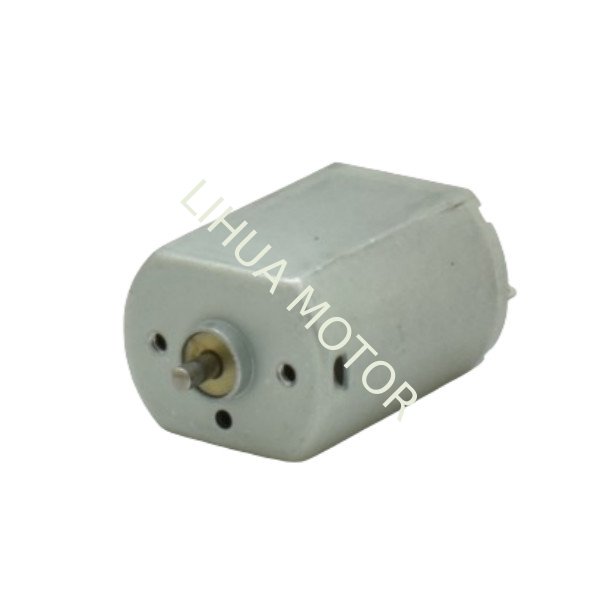

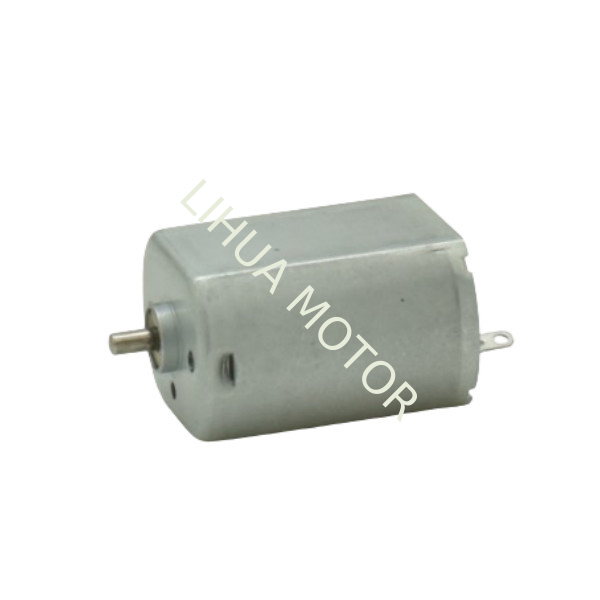

FF-130SH 3V 6V 12V 7200rpm 12000rpm Electric Shaver Motor 15.4mm*20.4mm

FF-130SH 3V 6V 12V 7200rpm 12000rpm Electric Shaver Motor 15.4mm*20.4mm

Products - Small Motor
  • Highlight

    7200 rpm motor

    ,

    FF-130SH Motor

    ,

    12000rpm Electric Shaver Motor

  • Name
    Electric Shaver Motor
  • Standard Size
    15.4mm*20.4mm
  • Rated Torque
    Up To 15gf-cm
  • Voltage
    1.5V-24V
  • Efficiency
    90%
  • Motor Type
    FF-130SH
  • Shaft Type
    2mm Round /D Shaft
  • Weight
    22g
  • Speed
    3000rpm-14000rpm
  • Shaft Diameter
    2mm
  • Noise Level
    ＜45dB
  • Operating Temperature
    -20°C To 60°C
  • Application
    Electric Shaver /DIY Toy Engine/ Air Condition Humidity Regular
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/ HCS Motor
  • Certification
    ISO9001/CE/RoHs/SGS
  • Model Number
    FF-130SH
  • Document
    13-FF-130-Model.pdf
  • Minimum Order Quantity
    3000PCS
  • Packaging Details
    Carton/Pallet
  • Delivery Time
    35-45Days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    10000PCS/Day

FF-130SH 3V 6V 12V 7200rpm 12000rpm Electric Shaver Motor 15.4mm*20.4mm

  • FF-130SH 3V 6V 12V 7200rpm 12000rpm Electric Shaver Motor 15.4mm*20.4mm
  • FF-130SH 3V 6V 12V 7200rpm 12000rpm Electric Shaver Motor 15.4mm*20.4mm
  • FF-130SH 3V 6V 12V 7200rpm 12000rpm Electric Shaver Motor 15.4mm*20.4mm
Get Price Contact Now

FF-130SH 3V 6V 12V 7200rpm 12000rpm 15.4mm*20.4mm Electric Shaver Engine Motor



Model Number: FF-130SH

Voltage Range: DC 1.5V - 24V
Motor Size: Maximum 15.4mm x 20.4mm

Shaft : Φ2.0mm(0.0787 inch), D shape, etc.

Shaft length free customization

Rated Torque: up to 15gf-cm(1.47 mN-m)

Construction: Permanent Magnet

Clockwise/counter-clockwise rotation (CW&CCW)

Other Model Names:

  • 3V 130 Motor

  • 12V 130 Small Motor

  • 130 DC Mini Motor Small Electric Motors

  • 130 Hobby Size Motor

FF-130SH  Small Mute Motor Model Types Table



Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
FF-130SH-09450 8v-14v 12.0v 7296 0.023 1.23 5903 0.092 0.68 66 0.42
FF-130SH-14240 2v-7v 6.0V 7187 0.038 1.13 5992 0.170 0.66 69 0.85
FF-130SH-15165 2-4V 3.0V 4600 0.118 1.46 3360 0.316 0.65 55 0.85
FF-130SH-13270 4-7V 6.0V 6053 0.032 1.27 5004 0.153 0.57 74.8 0.73
FF-130SH-14230 2.5-10V 3.0V 3600 0.037 0.74 2850 0.14 0.22 36 0.53
FF-130RH-15210 1-4V 3.0V 5400 0.045 0.57 4280 0.17 0.25 28 0.65
FF-130SH-11340 3-12V 7.5V 6100 0.033 1.06 4920 0.14 0.25 28 0.65



NOTE:

1mNm= 1Ncm = 10.2gcm

Customized product parameter are available upon your request



Model Voltage No load At maximum efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Eff. Torque Current
V R/min A R/min A gf-cm W % gf-cm A
FK-130RH-09490 6~18 12 9,000 0.034 6,990 0.12 8.9 0.64 68.7 40 0.41
FK-130RH-15210 4.5~6 4.8 8,300 0.075 6,540 0.28 9 0.60 45.0 43 1.03
FK-130SH-09450 6~24 12 7,200 0.03 5,680 0.11 11.4 0.66 50.4 54 0.42
FK-130SH-16180 4~12 12 18,000 0.13 14,900 0.62 24.1 3.69 69.4 140 3





Model Types (Reference):

  1. FF-130SH-09450: A compact and efficient 130-sized motor designed for low-power applications, ideal for small DIY projects and hobbyist use.

  2. FF-130SH-14240: A versatile 130 motor suitable for lightweight devices, offering reliable performance at low voltage.

  3. FF-130SH-2356: A high-performance mini motor perfect for precision tasks, such as small robotics or miniature gadgets.

  4. FF-130SH-11340: A durable 130 motor designed for consistent operation in low-voltage environments, often used in educational kits.

  5. FF-130SH-14230: A compact motor optimized for small-scale applications, such as miniature fans or lightweight mechanisms.

  6. FF-130SH-15210: A reliable 130 motor with a focus on energy efficiency, suitable for battery-powered devices.

  7. FF-130SH-13220: A robust mini motor designed for extended use in low-power devices, such as small pumps or actuators.

  8. FF-130SH-14200: A versatile 130 motor ideal for hobby projects, offering a balance of power and compact size.

  9. FF-130SH-16140: A high-torque 130 motor designed for applications requiring precise control and reliability.



Featured Product:
FF-130 1.5V Mini DC Electric Motor: Specifically designed for small appliances like electric shavers, this motor delivers smooth and efficient performance at low voltage. Its compact size and reliable operation make it a popular choice for lightweight, battery-powered devices. Perfect for hobbyists, DIY enthusiasts, and small-scale industrial applications.





Q&A



Q: Are you a trading company or a manufacturer?

A: We are a manufacturer who has specialised in small DC motors for over 20 years.



Q:Can this motor be used in wet or humid environments?

A: While the motor is designed for use in dry environments, it can be used in damp or humid environments with proper sealing and protection.



Q: Do you have certificates for the motors?

A: Yes, we have CE, IATF16949, ISO9001, ROHS, REACH, SGS, etc. If you have the other certificate requirement, we can apply it for you.
