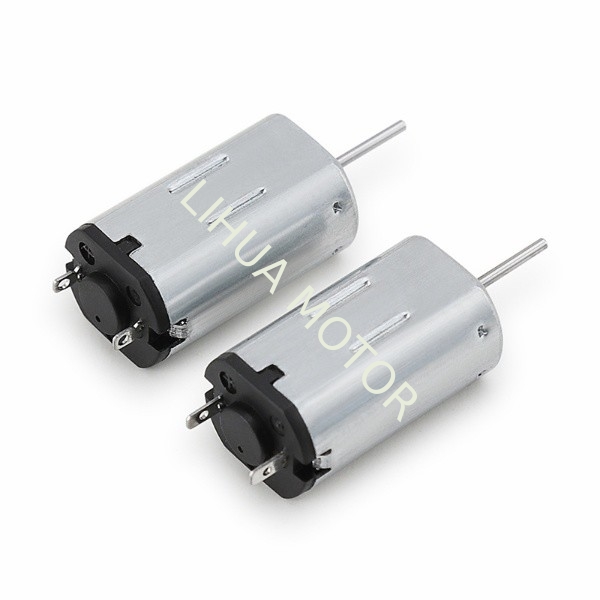

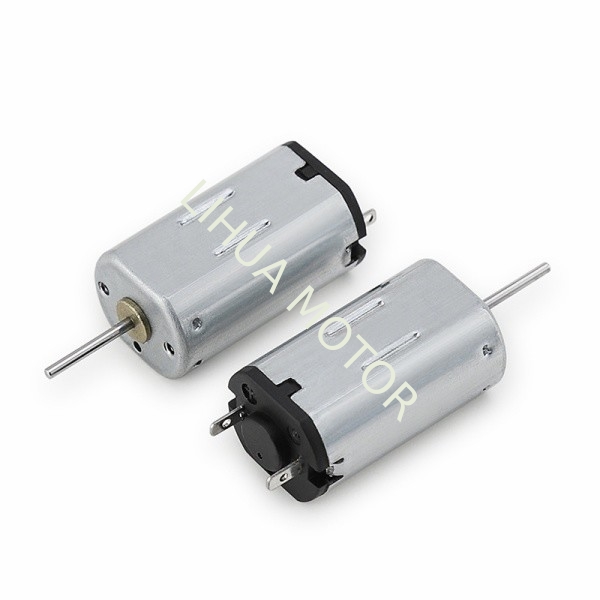

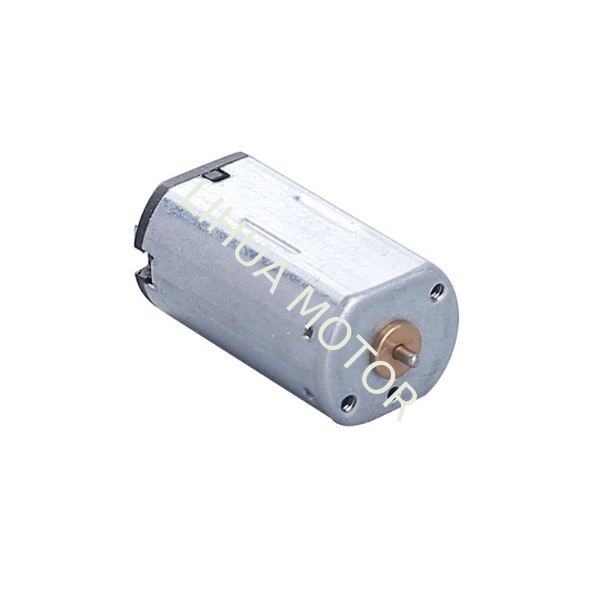

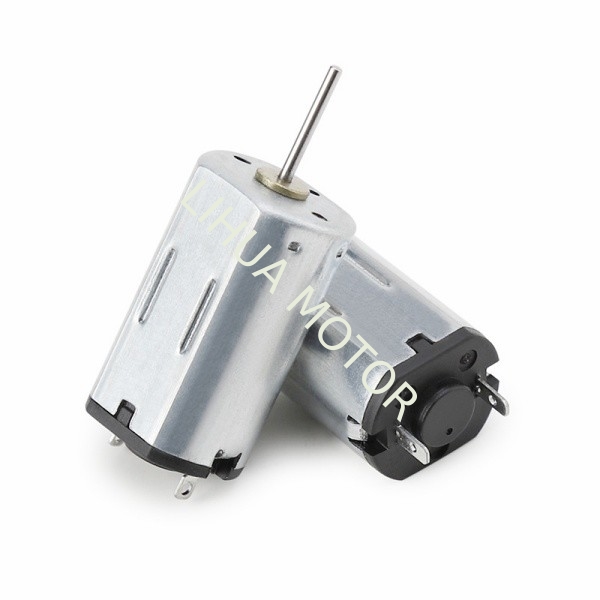

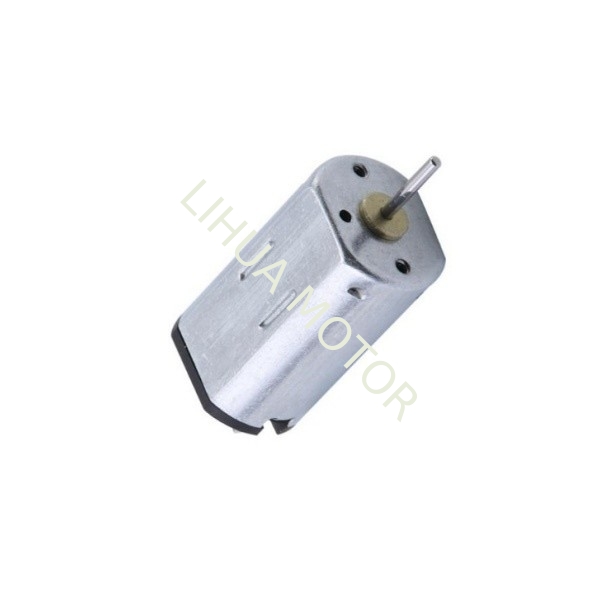

1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks

1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks

Products - Small Motor
  • Highlight

    4.5v Small DC Electric Motor

    ,

    N30 Small DC Electric Motor

    ,

    Small DC Electric Motor 12000rpm

  • Type
    DC Electric Motor
  • DC Voltage
    1.5V 3.0V 4.5V 6V Or As Your Requirement
  • Speed
    8000rpm,12000rpm And Variable Speed You Can Choose
  • Rated Torque
    0.28 MN.m Or As Your Requirement
  • Direction Of Rotation
    CW/CCW
  • Output Power
    0.1w-0.8w
  • Certification
    CE,CCC,ROHS,UL,ISO9001,SGS
  • Efficiency
    80%,Other,it Depends On Motor's Specific Types
  • Usage
    Facial Cleanser ,Tattoo Pen, Massage Instruments, Electric Toothbrush, USB Fan ,Electric Eyebrow Trimmer
  • Housing
    Cast Iron
  • Protect Feature
    Drip-proof
  • Insulation Class
    A
  • Weight
    7g
  • Name
    Small Motor
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor
  • Certification
    ISO9001,RoHs,Reach,SGS
  • Model Number
    FF-N30VA
  • Minimum Order Quantity
    5000PCS
  • Packaging Details
    Carbon Box
  • Delivery Time
    30-45Days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    15000PCS/Day

1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks

  • 1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
  • 1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
  • 1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
  • 1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
  • 1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
Get Price Contact Now

1.5v 4.5v 6v N30 10mm*12mm 12000rpm Small Electric Motor Electronic Door Locks



FF-N30 small motor is usually combined with gear box,it can be used in electric door clock.Small size and high torque can meet clock performance.

Quickly reactiona and working ,make it more popular in CD player,MD recorder.With rapidly devolped,N30 motors can be applied in facial cleanser ,tattoo pen, massage instruments, electric toothbrush, USB fan ,electric eyebrow trimmer.Lihua Motor has been focusing on micro motors for more than 20 years. In order to meet the needs of customers, we support OEM/ODM service and can customize the motor according to the actual products of customers. We control the whole process from R&D to production, and help customers maximize the value of their products with the most favorable price.





FF-N30 Drawing Reference





1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks 0

Display for N30 Small Motor Typical Motor Types

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A mNm R/min A W g.cm A
FF-N30-2247 1.5-12v 3.7v 9600 0.6 0.39 7860 0.285 0.32 22 1.3
FF-N30-1C73 1.5-12V 11V 4700 0.017 0.24 3670 0.06 0.09 11 0.21
FF-N30-12106 4.0-6V 5.0V 16800 0.035 0.44 14450 0.22 0.665 32.2 1.35
FF-N30-09180 2.0-6V 4.5V 9000 0.015 0.28 7489 0.071 0.20 16 0.338
FF-N30-1945 1.0-3V 1.5V 12000 0.08 0.08 9834 0.377 0.35 20.8 1.78



Remarks:

The ambient temperature of motor testing is 25-30℃ at room temperature;
The dimensions :output shaft length ,motor  total length ,shaft shape in the external dimensions diagram can be adjusted as required;
Micro-motor performance, installation, power connection and external dimensions can be designed and modified according to customer requirements;

Unit in drawing is :mm
1inch=25.4mm
1mm=0.0394inch
1g.cm=0.098mN.m
1mN.m=10.2g.cm
