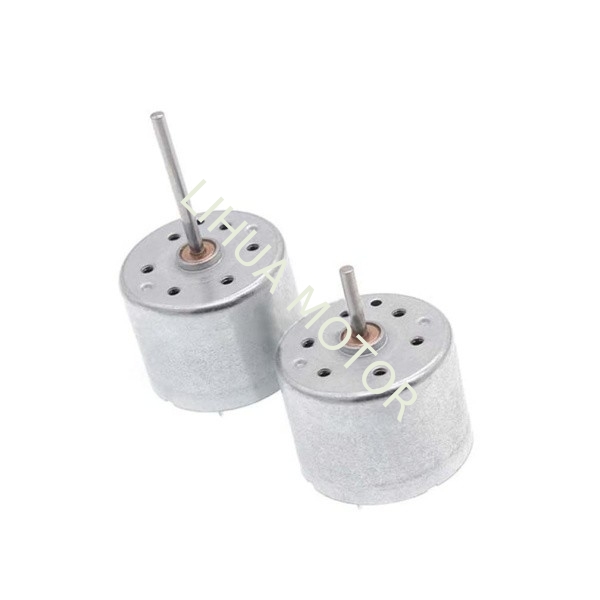

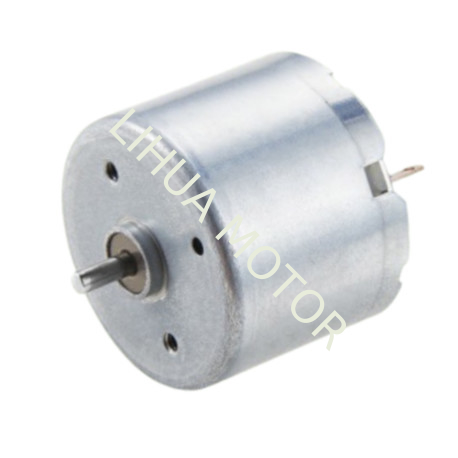

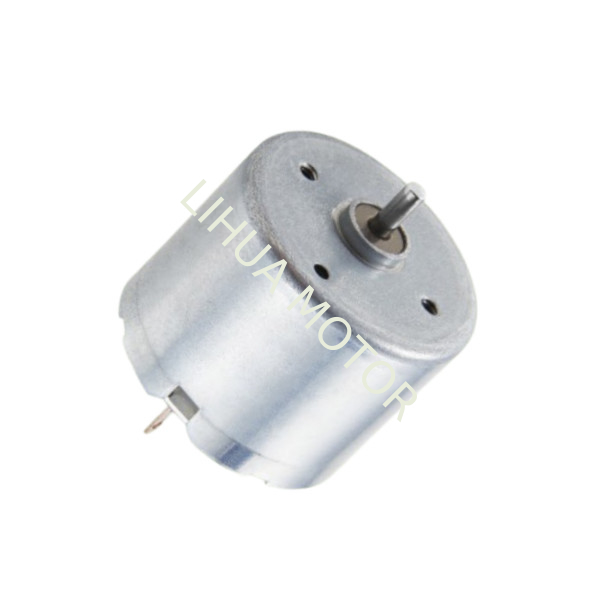

RF-330TA-07800 DC 1.5v-6v 6400rpm Micro DC Brushed Motor 24mm Spindle Round For Air Freshener

Products - Brushed Motor DC

Highlight

Micro DC Brushed Motor
,
6400rpm DC Brushed Motor
,
DC Brushed Motor Round
Motor Type

RF-330TA-07800
Rated Voltage

1.5V-6V
Shaft Diameter

1.5mm/2.0mm
Shaft Length

6mm/10mm/15mm/22mm Or As You Request
Motor Body Size

24.4mm*20.1mm
Fixed Aperture

2mm
No-load Speed

3000RPM/6000RPM/1200RPM/Or As You Request
Shaft Type

Round/D Shaft/Knurling/Screw Thread
Operating Temperature

-20°C To 80°C
Noise Level

＜45 DB
Applications

VCD Engine Part,Electric Valve, Hand Charger And Mini Aerosol Dispenser Devices
Weight

25g
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/ HCS Motors
Certification

ISO9001/Reach/RoHs/SGS/CE
Model Number

RF-330TA
Minimum Order Quantity

3000pcs
Packaging Details

Foam Inner /Carbon Outer
Delivery Time

30-45Days
Payment Terms

T/T
Supply Ability

12000pcs/Day

RF-330TA-07800 DC 1.5v-6v 6400rpm Micro DC Brushed Motor 24mm Spindle Round For Air Freshener

Name: RF-330TA-07800 DC 1.5v-6v 6400rpm Micro DC Brushed Motor 24mm Spindle Round For Air Freshener
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: RF-330TA
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

RF-330TA-07800 Motor Micro Brushed DC Technical Parameter

- Motor voltage: 1.5V-6V
- Motor height: 20.1mm
- Motor diameter: 24.4mm Max
- Step Height: about 1.4mm
- Step diameter: about 6.4mm
- Fixed aperture: 2mm
- Motor shaft diameter: 2mm
- Motor shaft length: 6mm, 10mm, 22mm, 15mm
- Brush Type: Metal brushes
- Customization Service:Voltage, speed,torque and current can be custom.
- RF-330 Motor DC Typical Custom Types
Model: RF-330TK-07800
Motor diameter:24.4mm Max
Motor height:20.1mm
Output shaft diameter:1.5mm/2.0mm
Output shaft length:10mm
Weight:30g
Test data:
Voltage: DC4V No-load current:6mA No-load speed:2300RPM
Voltage: DC5V No-load current:12mA No-load speed:2960RPM
Voltage: DC6V No-load current:20mA No-load speed:3460RPM
Note: This motor is low speed and low current motor, it's torque is also very small, it is designed at low speed low current usage

Model: RF-330TA-13250
Motor diameter: 24. 4mm
Motor height: 18mm
Output shaft diameter: 1.5mm
Output shaft length: 9mm
Voltage range: DC 1.2V-6V
Test data:
Voltage:2.2V Speed:3200RPM
Voltage:3.0V Speed:4300RPM
Voltage:4.5V Speed:6900RPM
Voltage:5.0V Speed:7500RPM
Voltage:6.0V Speed:8500RPM
Model: RF-330T-16170
Motor diameter: 24.4mm
Motor height: 1 8mm
Output shaft diameter: 1.5mm
Output shaft length: 3.8mm
Voltage: DC 6V
Current: 28mA
Speed: 6400RPM

Model: RF-330T-11360
Rated voltage: DC 6.0V
Suitable voltage: DC 3V-6V

Motor diameter: 24. 3mm
Motor height: 18.20mm
Output shaft diameter: 1.5mm
Output shaft length: 9.0mm
Test data:
Voltage:3.0V Speed:3100RPM
Voltage:4.5V Speed:4700RPM
Voltage:5.0V Speed:5200RPM
Voltage:6.0V Speed:6330RPM

RF-330 Motor Micro Brush DC Electric Motor Data Table


Model	Voltage		No Load		RATED LOAD			Stall
	Operating range	Rated	Speed	Current	Speed	Current	Torque	Torque	Current
	VDC		RPM	A	RPM	A	mN.m	gf.cm	A
RF-330TA-11360	2-6V	3.4V	3400	0.015	2700	0.066	0.42	23	0.29
RF-330TA-09500	2-8V	4.5V	3300	0.010	2600	0.044	0.39	23	0.20
RF-330TA-13250	1.2-6V	2.2V	3200	0.02	2500	0.08	0.39	22	0.36
RF-330TA-16170	1.2-4.5V	1.5V	3200	0.03	2700	0.12	0.34	21	0.56
Color Variation: Due to lighting and screen differences, the actual product color may slightly differ from the images. Size Tolerance: Manual measurement may result in a 1–3cm variance in dimensions. All technical paramter can be customized as your need. Note:1mNm= 1Ncm = 10.2gcm

RF-330TA-07800 DC 1.5v-6v 6400rpm Micro DC Brushed Motor 24mm Spindle Round For Air Freshener 0

RF-330TA Small DC Motor Production Line

At Lihua Motor, we take pride in our state-of-the-art production line designed to manufacture the RF-330TA1 small DC motor with precision and efficiency. Our facility is equipped with advanced machinery and automated systems to ensure consistent quality and high performance in every motor produced.

By adhering to our core principles of "Quality First, Customer First, and Service First," we ensure that every RF-330TA motor meets the highest industry standards. Whether for small-scale projects or large-volume orders, our production line is dedicated to delivering motors that exceed customer expectations.
