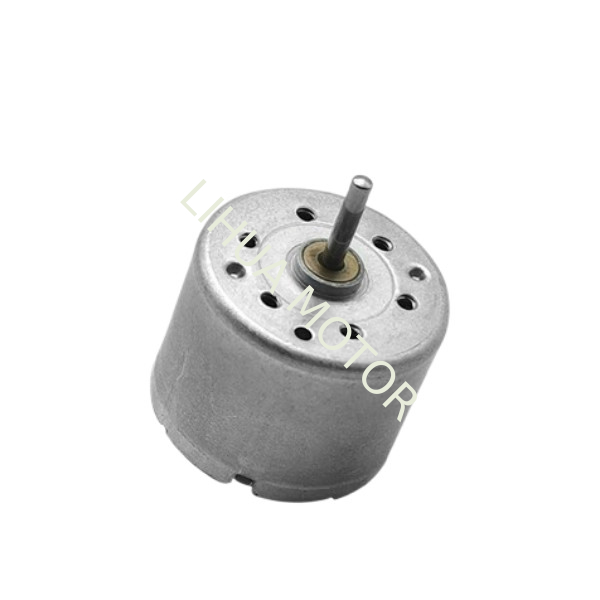

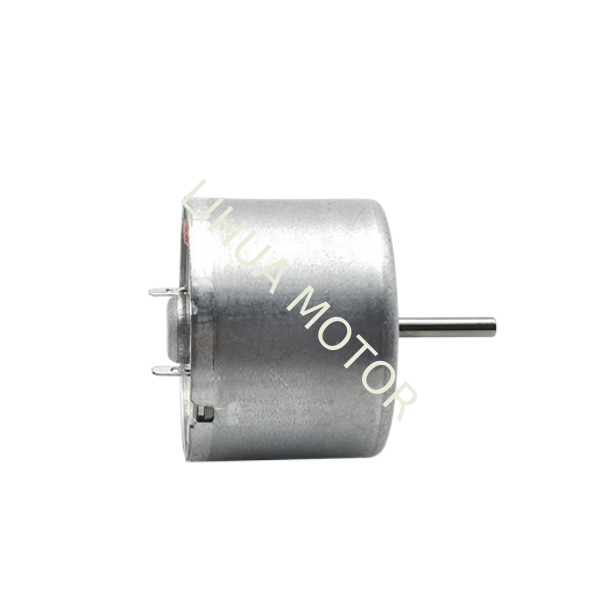

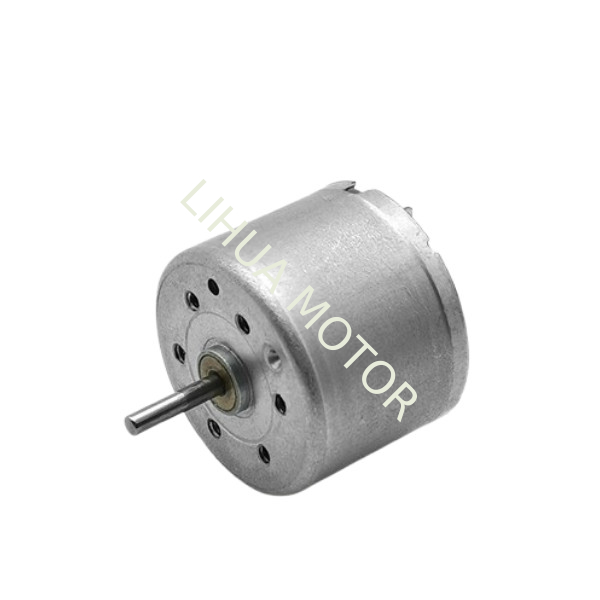

RF-310TA-11400 Miniature DC Motors 24.4cm Diameter 2.5V 2800Rpm For Aerosol Dispenser

• Introducing the innovative 310 DC motor, designed for low noise operation and minimal starting current, making it an ideal choice for solar-powered toys, model kits, and other DIY projects. Its extended shaft length enhances usability and versatility.

  • Motor Voltage: 1V-4V
  • Rated Volt:2.5V
  • No-load Speed:2800rpm
  • No-load Current:0.015A
  • Stall Torque:16.5g.cm
  • Motor Height: 20.1mm approx
  • Motor Diameter: 24.4mm Max
  • Step Height: about 1.4mm
  • Step diameter: about 6.4mm
  • Fixed Aperture: 2mm*0.4
  • Motor Shaft Diameter: 2mm
  • Motor Shaft Length: 6mm, 10mm, 22mm, 15mm

  • Brush Type: Low noise metal brushes
  • Customization Service:Voltage, speed,torque and current can be custom.

RF-310 Motor DC Popular Custom Types

• 6mm Shaft Length:

  3V Operation:

  No-load Current: 15mA

  Stall Current: 200mA

  Speed: 3200 RPM



  6V Operation:

  No-load Current: 24mA

  Stall Current: 420mA

  Speed: 6400 RPM

• 10mm Shaft Length:

Customizable for lower speeds (please specify requirements when ordering).

• 15mm Shaft Length:

Voltage Range: 3V–12V

Current Range: 0.12A–0.18A

Speed Range: 1100–4200 RPM

• 22mm Shaft Length:

  3V Operation:

  No-load Current: 10mA

  Stall Current: 150mA

  Speed: 2100 RPM

  6V Operation:

  No-load Current: 14mA

  Locked Current: 400mA

  Speed: 4300 RPM

RF-310TA-11400 Motor Micro Brush DC Electric Motor Data Table

Various Applications For Mini Micro Motor Metal Brushed RF-310 Motor

Applications of RF-310 Mini Motor in Smart Water Valves, VCD Mechanisms, Hand-Crank Flashlights, Micro Water/Air Pumps, and Electric Fragrance Diffusers

The RF-310 mini motor is widely used in various devices and systems due to its high efficiency, low noise, and precise control. Below are its specific applications in smart water valves, VCD mechanisms, hand-crank flashlights, micro water/air pumps, and electric fragrance diffusers:

1. Smart Water Valves

The RF-310 motor is used in smart water valves to control the opening and closing mechanisms, precisely adjusting water flow for intelligent water-saving and remote control. Its low power consumption and high efficiency ensure long-term stable operation of the valves.

2. VCD Mechanisms

In VCD mechanisms, the RF-310 motor is primarily used to drive the movement of the laser head and the rotation of the spindle. Its high precision in end-face and output shaft perpendicularity, as well as end-face flatness, meets the stringent requirements for precise motion control in VCD mechanisms, ensuring accurate and stable data reading.

3. Hand-Crank Flashlights

In hand-crank flashlights, the RF-310 motor acts as the core component of the generator, converting hand-crank kinetic energy into electrical energy. Its high energy conversion efficiency and durability make it an ideal choice for flashlights, especially for outdoor emergency use.

4. Micro Water/Air Pumps

In micro water and air pumps, the RF-310 motor provides stable power output to drive the transportation of liquids or gases. Its compact design and high reliability make it suitable for applications such as medical devices, aquariums, and small sprayers, ensuring efficient operation and low noise.

5. Electric Fragrance Diffusers

The RF-310 motor is used in electric fragrance diffusers for atomization or fan-driven systems, precisely controlling the release of fragrance to achieve even diffusion. Its low noise and high efficiency enhance the user experience, making it suitable for homes, offices, or car interiors.

With its precise control, high efficiency, and low noise, the RF-310 mini motor excels in applications such as smart water valves, VCD mechanisms, hand-crank flashlights, micro water/air pumps, and electric fragrance diffusers. Whether in precision instruments or everyday products, the RF-310 motor provides reliable power support, meeting diverse application needs.
