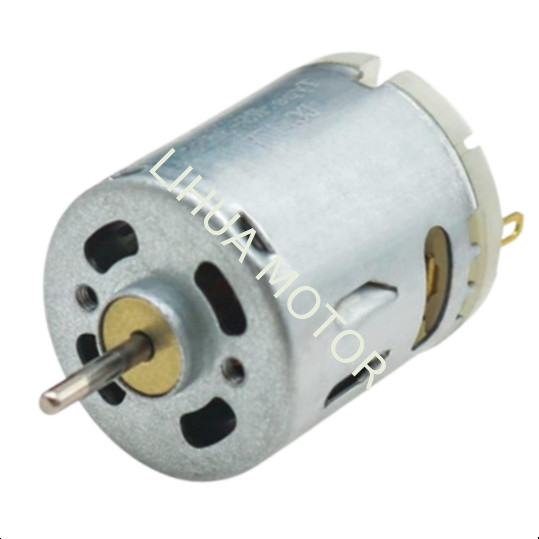

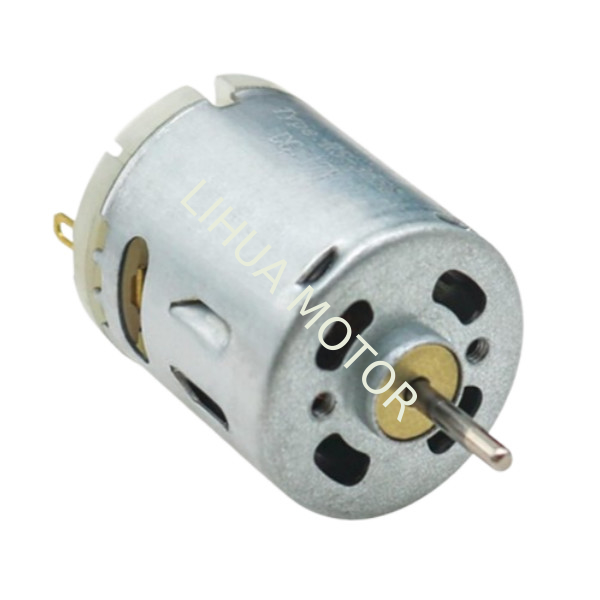

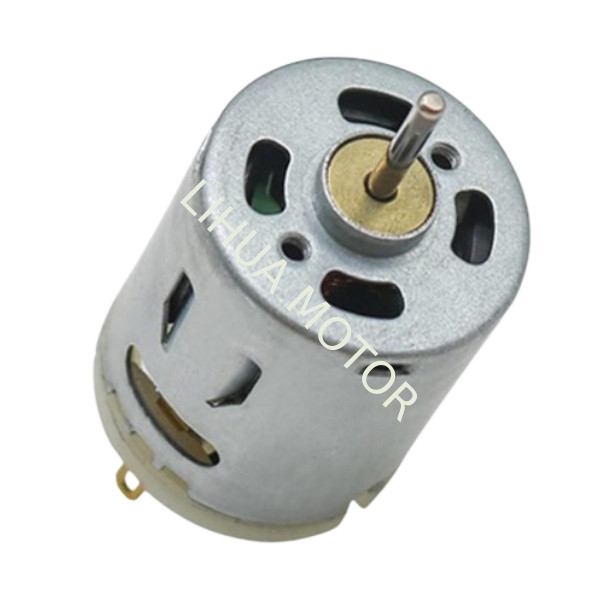

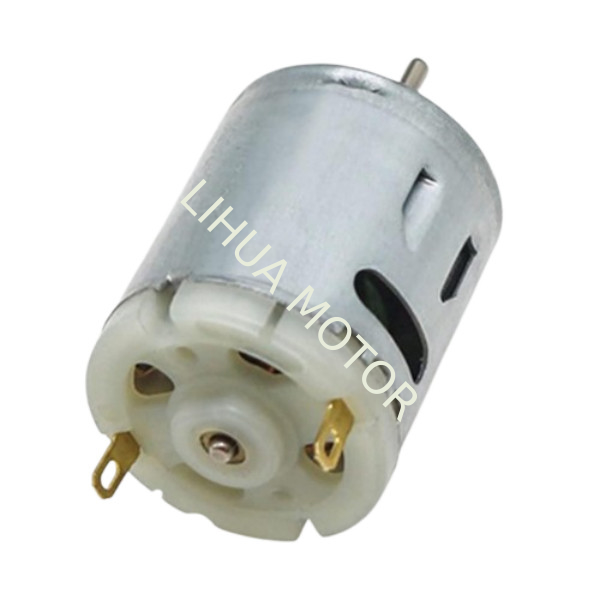

RS-365SA 2.3mm Dia Shaft 12V Mini DC Motor , Carbon Brush Motor For Vending Machine

Highlight

RS-365SA 12V Mini DC Motor
,
12V Carbon Brush Motor
Type

DC Brushed Motor
Direction Of Rotation

CCW/CW
Custom Service

Voltage/Torque/Current/Speed /Output Shaft Length Can Customized
Dimensions

32.6 Mm Long X 27.7 Mm Diameter (not Including Shaft)
Mounting Hole Size

M2.6*0.45
Output Shaft Diameter

2.3mm
Warranty

48-Month
Usage

Power Tools/Dryer/Drill
Name

High Torque DC Motor
Place of Origin

Dongguan China
Brand Name

Lihua Motor/HCS Motors
Certification

ISO9001 Reach,RoHs,SGS,CE
Model Number

RS-365SA Motor
Minimum Order Quantity

3000PCS
Packaging Details

Plastic/Foam Box
Delivery Time

40-45days
Payment Terms

,L/C,T/T
Supply Ability

8000PCS/Day

RS-365SA 2.3mm Dia Shaft 12V Mini DC Motor , Carbon Brush Motor For Vending Machine

Name: RS-365SA 2.3mm Dia Shaft 12V Mini DC Motor , Carbon Brush Motor For Vending Machine
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: RS-365SA Motor
Price: 9.35 USD
Availability: InStock

button button

Get Price Contact Now

RS-365SA 2.3mm Dia Shaft 12V Mini DC Carbon Brushed Motor for Vending Machine

RS-365SA Mini Carbon Motor Parameters

Voltage Range: 6V-36V (Can custom)
Motor diameter: 27.7mm
Motor height: 32.6mm (Not including Out shaft Length)
Output shaft length: 16.5mm/D shaft 7mm
Output shaft diameter: 2.3mm/D shaft 1.7mm

Test data:

Voltage:6V No-load speed:11600RPM Current:400mA

Voltage:12V No-load speed:23500RPM Current:460mA

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
	Range	Rated	R/min	A	m.Nm	R/min	A	W	g.cm	A
RS-365SA-2885	3-9v	7.2v	12500	0.36	4.90	11000	1.3	5.64	420	8.6
RS-365SA-10500	12-25V	24.0V	7000	0.05	4.50	5600	0.20	2.64	230	0.8
RS-365SA-12190	6.8-36V	24.0V	10500	0.08	5.0	8400	0.33	4.39	260	1.32
RS-365SA-1885	6-20V	15.0V	17100	0.26	6.17	13570	1.0	8.76	305	3.85
RS-365SA-10225	6-36V	24.0V	8100	0.065	4.22	6200	0.22	2.74	180	0.73

RS-365SA 2.3mm Dia Shaft 12V Mini DC Motor , Carbon Brush Motor For Vending Machine 0

RS-365SA Customization Options

Understanding that every application has unique requirements, we offer extensive customization options for the RS-365SA Mini Carbon Motor. Customizable parameters include:

Output Shaft Length
Current
Voltage
Speed
Torque

Features and Benefits

Compact Design: Its small size allows for easy integration into space-constrained applications.
High Performance: Delivers reliable and efficient performance across a wide voltage range.
Customizable: Tailored to meet specific application requirements, ensuring optimal functionality.
Durable: Built with high-quality materials for long-lasting use.

Why Choose Us?

With over 21 years of experience in micro motor production, our factory is equipped with state-of-the-art technology and a skilled workforce of 350 employees. Our commitment to quality and customer satisfaction ensures that you receive a product that meets your exact specifications.The RS-365SA Mini Carbon Motor is the ideal choice for applications requiring precision, reliability, and customization. Whether you need a standard model or a fully customized solution, our team is here to provide you with the best motor for your needs.

Call to Action:
Explore the possibilities with the RS-365SA Mini Carbon Motor. Contact us today to discuss your requirements and discover how our expertise can benefit your project. Visit our website for more information and to request a quote.
