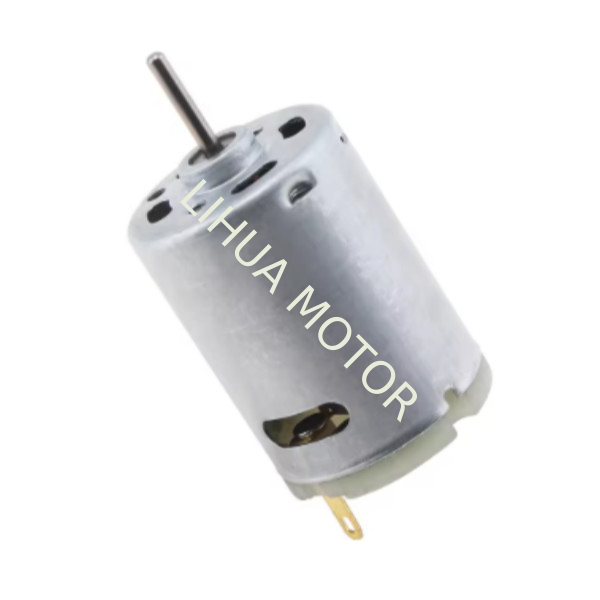

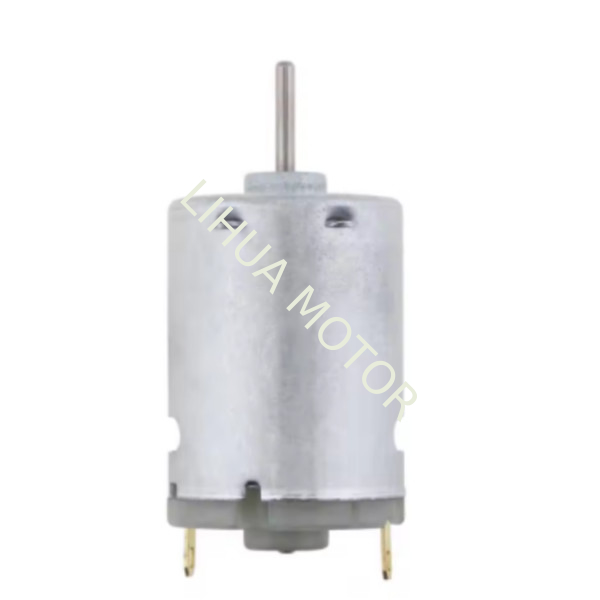

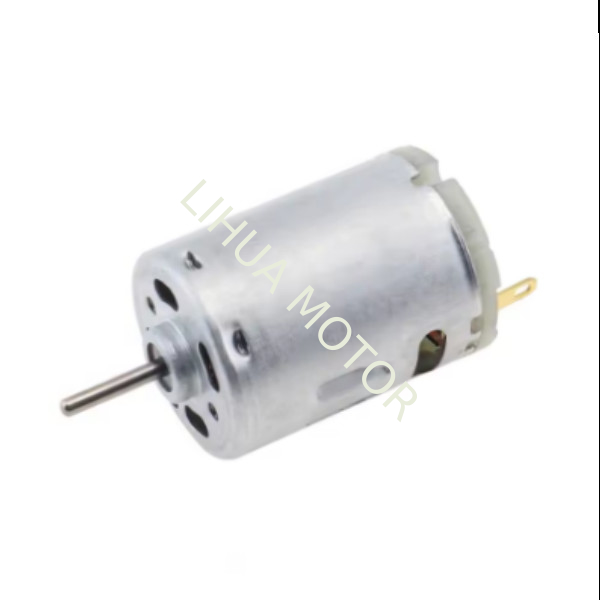

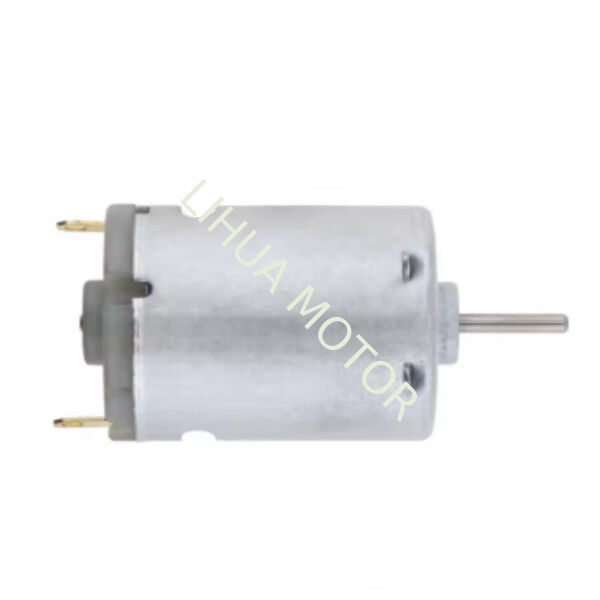

RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot

RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot

Products - High Torque DC Motor
  • Highlight

    RS-385 DC Motor

    ,

    24V Brush DC Motor High Speed

    ,

    High Speed Large Torque DC Motor

  • Type
    DC Brushed Motor
  • Direction Of Rotation
    CCW/CW
  • Custom Service
    Voltage/Torque/Current/Speed /Output Shaft Length Can Customized
  • Dimensions
    32.9mm Long X 27.7 Mm Diameter (not Including Shaft)
  • Mounting Hole Size
    M2.6*0.45
  • Output Shaft Diameter
    2.3mm
  • Screw Hole Distance
    16mm
  • Warranty
    48-Month
  • Usage
    LectrTools, Sparklers, Massage Instruments, Aerial Models, Hair Dryers
  • Weight
    80g
  • Name
    High Torque DC Motor
  • Place of Origin
    Dongguan China
  • Brand Name
    Lihua Motor/HCS Motors
  • Certification
    ISO9001 Reach,RoHs,SGS,CE
  • Model Number
    RS380 Motor
  • Document
    RS-385SA-Model.pdf
  • Minimum Order Quantity
    3000PCS
  • Packaging Details
    Plastic/Foam Box
  • Delivery Time
    40-45days
  • Payment Terms
    ,L/C,T/T
  • Supply Ability
    8000PCS/Day

RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot

  • RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot
  • RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot
  • RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot
  • RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot
Get Price Contact Now

RS-385 12V 24V  Brush DC Motor High Speed Large Torque for Window Cleaning Robot

RS385 High Torque Motor Technical Parameter



|- Model Number: RS-385
|- Shell Stator Size : Φ27.7* L 32.9 mm(Φ 1.09 inch * 1.3 inch)
|- Shaft : Φ2.3mm(0.09 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 55W
|- Rated Voltage: DC 1.5V -36V
|- Stall Torque: up to 950 g.cm
|- Construction: Permanent Magnet
|- Commutation: Long-life time Carbon brush
|- Clockwise/counter-clockwise rotation (CW&CCW)



Model Voltage No load At maximum efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Torque Current
V R/min A R/min A mN-m g.cm W mN-m g-cm A
RS-385SA-4265 6-24V 12V 9800 0.20 8100 0.99   95 7.89   570 5.0
RS-385SM-2465 6-24V 12V 9800 0.20 8100 0.99   95 7.89   570 5.0
RS-385SH-17100 9-18V 12V 7000 0.12 5580 0.436 6.74 68.8 3.94 33.3 340 1.8
RS-385SH-2160 9-18V 12V 10000 0.22 8190 1.00 8.5 86.8 7.31 47.04 480 4.5
RS-385SH-2175 12-24V 24V 20000 0.23 17000 1.38 12.7 130 22.8 87.8 896 8.1
RS-385SH-2546 6-15V 12V 16000 0.34 13800

1.5

 9.3 95 13.1 68 693 8.8
RS-385SH-12200 6-12V 12V 3400 0.09 2700 0.21 3.9 40 1.13 20.8 212 0.8
  • Color Variation: Due to lighting and screen differences, the actual product color may slightly differ from the images.
  • Size Tolerance: Manual measurement may result in a 1–3cm variance in dimensions.
  • All technical paramter can be customized as your need.
  • Note:1mNm= 1Ncm = 10.2gcm



RS385SA Motor Drawing



RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot 0



RS385SM Motor Drawing



RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot 1





Advanced Manufacturing Processes for Precision Micro Motors



Rotor Production Line:
Rotors are crafted through precision stamping, welding, and coating for durability. Automated cleaning ensures each component is free of impurities, while full automation boosts efficiency and consistency.
Stator Assembly:
Automated systems handle magnetization and inspection, ensuring each stator meets exact specifications. Real-time quality checks guarantee only defect-free components proceed.

 RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot 2
RS-385 12V 24V Brush DC Motor High Speed Large Torque For Window Cleaning Robot 3





End Cover Assembly:
Customizable plastic or metal end covers are produced to meet specific requirements. Automated assembly ensures precise integration with other motor parts.


Final Motor Assembly:
Rotors, stators, and end covers are assembled into complete motors. Automated alignment and rigorous testing ensure high performance and reliability.









FAQ

What industries do your motors serve?

A:Our motors are used in various industries, such as automotive, robotics, industrial automation, and medical equipment.



Q:Can you vustomize motors according to our specific requirements?

A:Yes, we offer customized motor solutions based on your specific needs and requirements. Our professional engineers can work with you to design and develop motors that meet your unique specifications.



Q:How to order your dc mini motors?

A:Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/Delivery → Further cooperation.



Q:What is the lead time for motor production?

A:The lead time for motor production depends on the complexity of the motor and the quantity of motors required. Generally, lead times range from a few weeks to several months.
