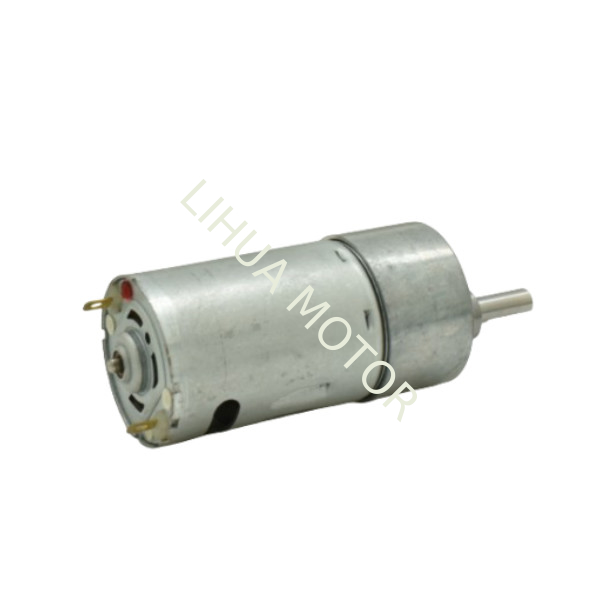

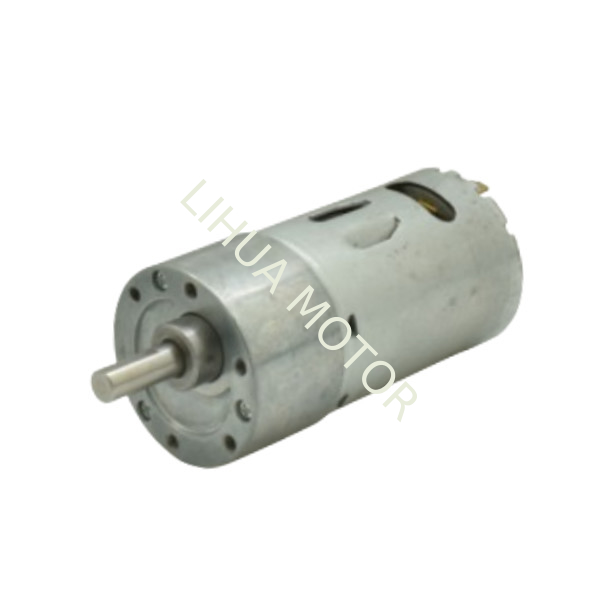

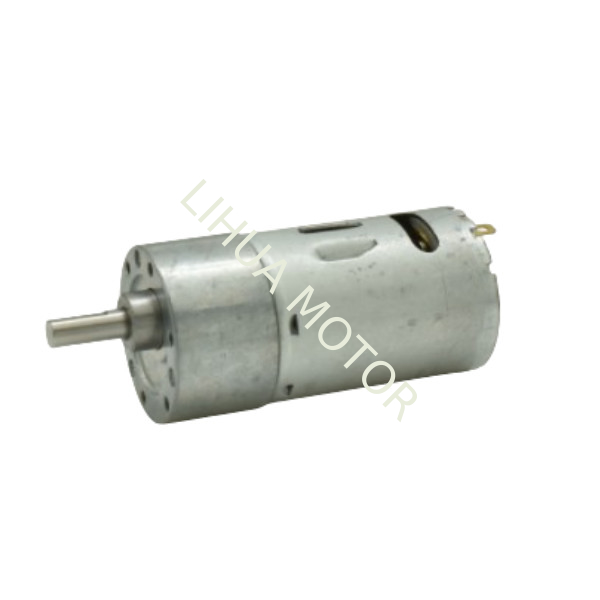

GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
-
Highlight
12 volt electric motor with gearbox
,24v Electric Motor With Gearbox
,12v Electric Motor With Gearbox
-
Name24v Electric Motor With Gearbox
-
ModelGA37-545
-
Voltage Range6V-24V
-
Motor Body Size36mm*47.5mm(W*L)
-
Motor CategoryGeared Motor
-
No-load Speed120rpm-600rpm
-
Stall Torque3Kgf.cm-10Kgf.cm
-
Gear Box Size37mm*L (Length Can Be Custom)
-
Rated Voltage6VDC/12VDC/24VDC
-
Rotations Per Minute (RPM)135/300/608
-
Shaft Diameter5.4mm (Approx.)
-
Shaft Length10 Mm (Approx.)
-
Custom ServiceODM/OEM Accepted
-
Place of OriginGongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001,CE,RoHs,Reach,SGS
-
Model NumberGM37-545 /GA37-545/37GA545
-
Document
-
Minimum Order Quantity1000pcs
-
Packaging DetailsFoam Box
-
Delivery Time40-45days
-
Payment TermsL/C,T/T,D/P,D/A
-
Supply Ability30000pcs/day
GB37-545 37mm 6V 12V 24v Electric Motor With Gearbox Ratio10:1 18.1:1 150:1 450:1
GB37-545 37mm 6V 12V 24V Electric Motor Gearbox Ratio10:1 18.1:1 150:1 450:1
Model : GB37-545 /GA37Y545 /GM37-545 micro metal gearmotor
Gearbox: 37 mm Dia metal spur gear reducer
Motor Size:36mm*50mm (Motor Length can be custom )
Shaft : Φ4mm D-cut 0.5mm, M4, custom
Gear Box Size:37mm*L mm (Gearbox Length Size can be custom)
Shaft size : Approx 5.4 x L mm (Dia.*L)
Nominal Voltage : DC 6V 12V 24V
Operating Voltage:6-24V
Revolving speed:Custom as your need
Revolving Direction:CW/CCW
Encoder : Magnetic encoder available;
Commutation: Carbon brush/Graphite brush
Construction: Micro Permanent Magnet iron cored dc electric motor
GB37-545 37mm Gear Reduction Motor Features and Custom Service
| Key Feature | Custom Items |
| Big Large Torque | Output Shaft |
| Higher Efficiency | Lead Wire |
| Out-rotor Structure | Connector |
| Lower Noise | Speed |
| Long Life | Mounting Holes |
|
545 Gear Motor Ratio Options:10,18.8,30,50,90,150,270,450,650,810
|
|
6V–24V Mini 37mm Gearbox 545 Motor Parameter List & Dimensions
GB37-545 Motor Custom Option
1.Motor Shaft Length and Shape( D shaft)
2.Gear Box Length
3.Gear Ratio
4.Speed/Volt/Torque/Current
Model: GA37-545 12V 24V DC Gear Motor Paramter List
GB37-545 Gearbox Motor DC12V 19W
|
Ratio |
After Reduction |
No Load |
Rated Load |
Stall |
Gearbox |
|||
|
i : 1 |
PPR |
Current |
Speed |
Current |
Speed |
Torque |
Current |
Length |
|
6.3:1 |
107.71 |
≤0.2A |
900rpm |
≤1.5A |
760rpm |
0.05N.m |
≤8.0A |
19.0mm |
|
10:1 |
170 |
≤0.2A |
570rpm |
≤1.5A |
480rpm |
0.09N.m |
≤8.0A |
19.0mm |
|
18.8:1 |
319.6 |
≤0.2A |
300rpm |
≤1.5A |
250rpm |
0.09N.m |
≤8.0A |
20.5mm |
|
30:1 |
510 |
≤0.2A |
190rpm |
≤1.5A |
160rpm |
0.29N.m |
≤8.0A |
21.5mm |
|
50:1 |
850 |
≤0.2A |
112rpm |
≤1.5A |
95rpm |
0.47N.m |
≤8.0A |
24.0mm |
|
90:1 |
1,530 |
≤0.2A |
62rpm |
≤1.5A |
52rpm |
0.83N.m |
≤8.0A |
24.0mm |
|
150:1 |
2,550 |
≤0.2A |
38rpm |
≤1.5A |
32rpm |
1.42N.m |
≤8.0A |
26.5mm |
|
270:1 |
4,590 |
≤0.2A |
21rpm |
≤1.5A |
15rpm |
≤3.4N.m |
≤8.0A |
26.5mm |
|
450:1 |
7,650 |
≤0.2A |
12rpm |
≤1.5A |
10rpm |
≤3.4N.m |
≤8.0A |
29.0mm |
|
650:1 |
10,710 |
≤0.2A |
8.8rpm |
≤1.5A |
7rpm |
≤3.4N.m |
≤8.0A |
29.0mm |
|
810:1 |
13,770 |
≤0.2A |
7rpm |
≤1.5A |
6rpm |
≤3.4N.m |
≤8.0A |
29.0mm |
GM37-545 Motor with Gearbox DC24V 80W
|
Ratio |
After Reduction |
No Load |
Rated Load |
Stall |
Gearbox |
|||
|
i : 1 |
PPR |
Current |
Speed |
Current |
Speed |
Torque |
Current |
Length |
|
6.3:1 |
107.71 |
≤0.4A |
1,800rpm |
≤2.3A |
1,500rpm |
0.1N.m |
≤15.0A |
19.0mm |
|
10:1 |
170 |
≤0.4A |
1,150rpm |
≤2.3A |
950rpm |
0.17N.m |
≤15.0A |
19.0mm |
|
18.8:1 |
319.6 |
≤0.4A |
610rpm |
≤2.3A |
510rpm |
0.34N.m |
≤15.0A |
20.5mm |
|
30:1 |
510 |
≤0.4A |
380rpm |
≤2.3A |
325rpm |
0.53N.m |
≤15.0A |
21.5mm |
|
50:1 |
850 |
≤0.4A |
225rpm |
≤2.3A |
195rpm |
0.88N.m |
≤15.0A |
24.0mm |
|
90:1 |
1,530 |
≤0.4A |
125rpm |
≤2.3A |
105rpm |
1.56N.m |
≤15.0A |
24.0mm |
|
150:1 |
2,550 |
≤0.4A |
75rpm |
≤2.3A |
65rpm |
≤3.4N.m |
≤15.0A |
26.5mm |
|
270:1 |
4,590 |
≤0.4A |
42rpm |
≤2.3A |
38rpm |
≤3.4N.m |
≤15.0A |
26.5mm |
|
450:1 |
7,650 |
≤0.4A |
25rpm |
≤2.3A |
23rpm |
≤3.4N.m |
≤15.0A |
29.0mm |
|
650:1 |
10,710 |
≤0.4A |
17rpm |
≤2.3A |
15rpm |
≤3.4N.m |
≤15.0A |
29.0mm |
|
810:1 |
13,770 |
≤0.4A |
14rpm |
≤2.3A |
13rpm |
≤3.4N.m |
≤15.0A |
29.0mm |
*Remarks:
The / in the table indicates that it is not possible to block the rotation, if it occurs, it may lead to damage to the internal gears.
All reduced no-load speeds have a tolerance of ±15%.
