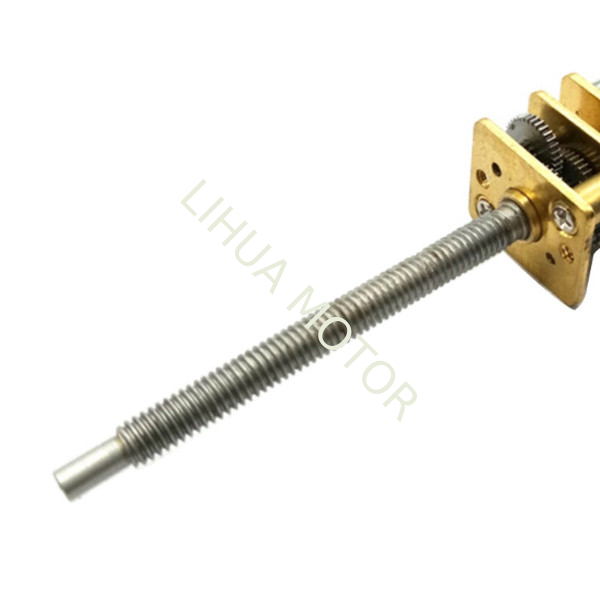

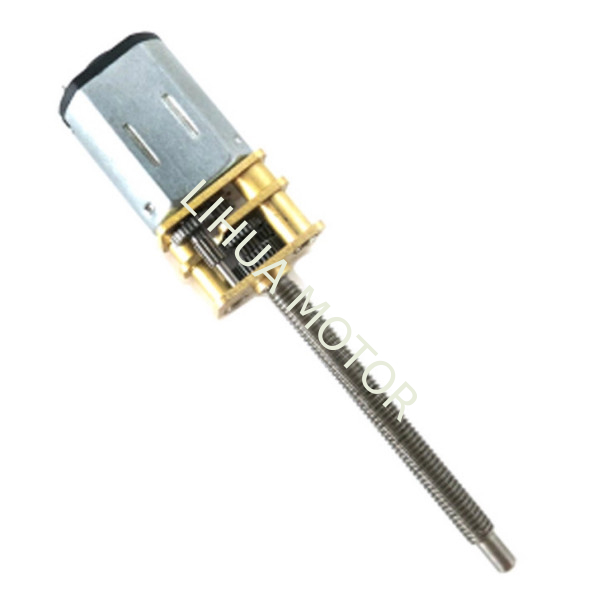

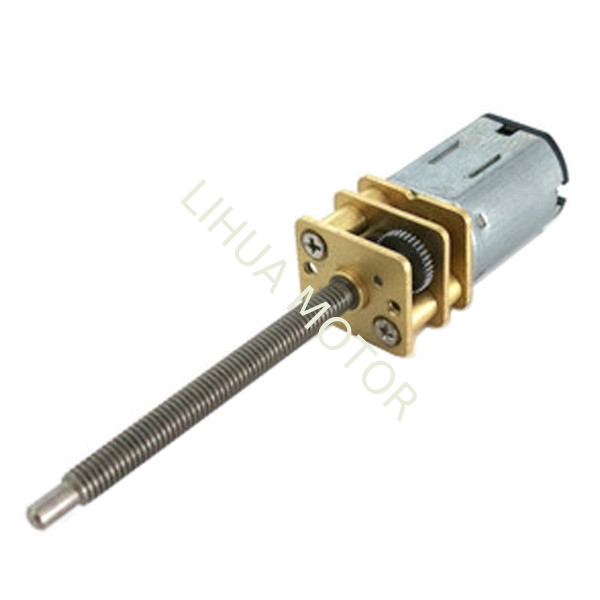

N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator

N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator

Products - Motor Gearbox DC
  • Highlight

    Gearbox Long Shaft DC Motor

    ,

    12v dc motor long shaft

    ,

    12v 100 rpm dc geared motor

  • Model
    GA12-N20
  • Ratio
    1:10-1:298
  • Gear Box Size
    12mm*18mm(W*L)
  • Voltage Range
    1V-12V Custom Voltage
  • No-load Speed
    10rpm-1000rpm (With Gearbox)
  • Custom Service
    ODM/OEM Accepted
  • Shaft Length
    34mm (Without Gear Box)
  • Weight
    20g
  • Place of Origin
    Gongguan,China
  • Brand Name
    Lihua Motor/HCS Motors
  • Certification
    ISO9001,CE,RoHs,Reach,SGS
  • Model Number
    GA12-N20
  • Minimum Order Quantity
    2000pcs
  • Price
    Negotiation
  • Packaging Details
    Foam Box
  • Delivery Time
    40-45days
  • Payment Terms
    L/C,T/T,D/P,D/A,Western Union,MoneyGram
  • Supply Ability
    50000pcs/day

N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator

  • N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator
  • N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator
  • N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator
Get Price Contact Now

N20 Motor Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator



The N20 Long Shaft Micro DC Gear Motor is designed for superior performance, durability, and precision. Built with high-quality metal gears and red copper components, it offers outstanding wear resistance and an extended service life. The internal copper coil ensures excellent electrical conductivity while reducing heat generation, delivering smooth and stable operation even during prolonged use.

This gear motor is available in multiple speed options — 20RPM, 24RPM, 50RPM, 60RPM, 80RPM, and 100RPM — allowing for flexibility across various applications. Despite its compact and lightweight design, the N20 motor provides high torque at low speeds, making it an ideal solution for space-constrained environments.

Engineered with fine craftsmanship, this motor excels in low noise, minimal energy consumption, and consistent output. Its key features — lightweight structure, high torque, low speed, long lifespan, and quiet performance — make it suitable for a wide range of applications, including smart toys, simulation robots, electronic locks, smart home systems, medical devices, and industrial automation.

We also offer custom design solutions to meet specific project requirements. Whether you need matching encoders, gearboxes, or motor drivers, our technical team is ready to provide tailored support. Contact us for more details and customization options.





N20 Long Shaft DC Motor 12V Gearbox Motor Overview

Warranty

6 months - 2 year

Model Number

GM1218-N20

Usage

Smart toys, simulation robots, electronic locks, smart home, medical, industrial, smart cars, robots, cameras, etc.

Type

Gear motor

Weight

TBD (different ratio different weight)

Components

Diversifed

Construction

Permanent Magnet

Commutation

Brushless/Brush

Protect Feature

Customized(Waterproof, fireproof, Fully enclosed)

Efficiency

90%

Bearing

Ball Bearing
Shast Type Round Long Shaft

Gear Motor  Rated speed

10-200 (rpm)

Rated Voltage

12 (V)

Start Current

10 mA
Dimensions

12*27 (mm)

Certificate

IAFT16949

Customized

Acceped (Volt/current/speed/torque/ratio)





N20 Motor Gearbox Long Shaft DC Motor High Torque Motor Gear Reduction Dimension

N20 Gearbox Long Shaft DC Motor 12v 100 Rpm DC Geared Motor For Actuator 0

Notes:

1. There is a tolerance of about 0.5mm-1mm in the measurement of the product, which should be based on the actual product.
2. The color of the material varies according to the light and darkness of the environment.







 GM1218-N20 12V DC, 16,000RPM, 1.02W Single Shaft Small High Torque Motor Technical Data

Voltaqe No load Load Speed Rated torque Rated current Stall torque Stall curert Reduction ratio
DC/V rpm/min rpm/min kg cm MA kg.cm MA 1:00
3 250 200 0.07 80 0.56 100 30
3 150 100 0.1 80 08 100 50
3 75 60 0.15 80 12 100 100
3 50 40 02 60 16 100 150
3 37 30 0.25 60 02 100 200
3 30 24 0.3 60 24 100 250
3 25 20 0.5 60 04 100 298
6 500 400 0.15 160 12 100 30
6 300 240 0.2 160 1.6 100 50
6 150 120 0.3 160 24 100 100
6 100 80 0.4 160 3.2 200 150
6 74 70 0.6 120 32 200 200
6 60 48 1 120 07 200 250
6 50 40 15 120 10 200 298
12 1000 800 0.3 300 24 300 30
12 600 480 04 300 32 300 50
12 300 240 0.5 300 04 300 100
12 200 160 01 300 07 300 150
12 148 118 12 300 09 300 200
12 120 96 02 300 16 300 250
12 100 80 02 300 16 300 298
Note: all reduced no-load speeds have a tolerance of ±5%.
