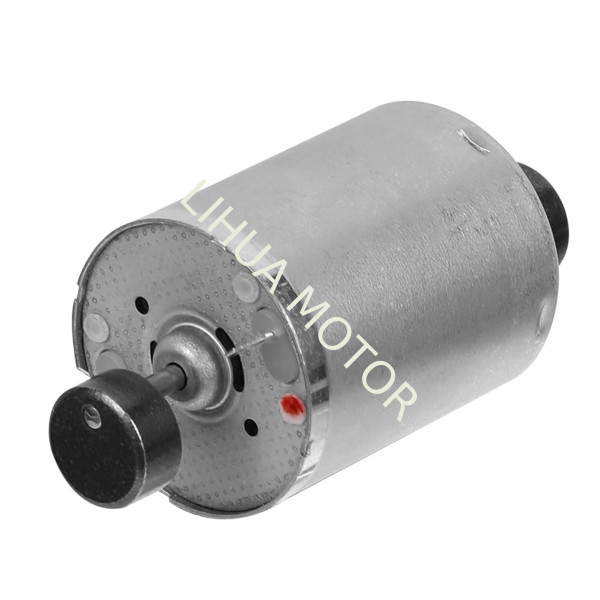

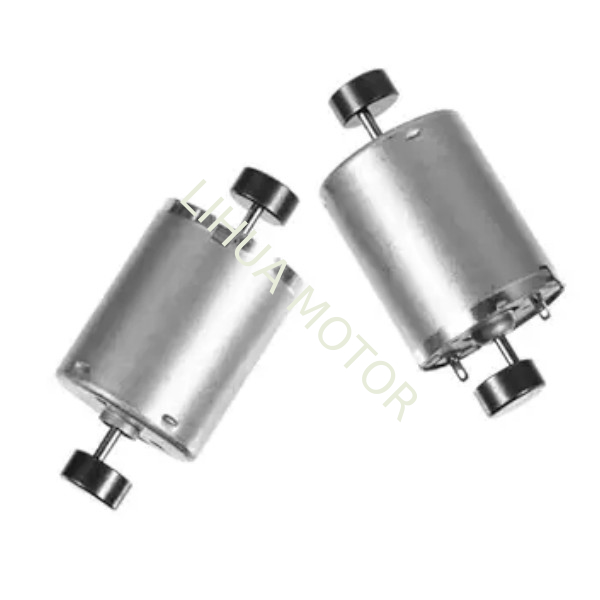

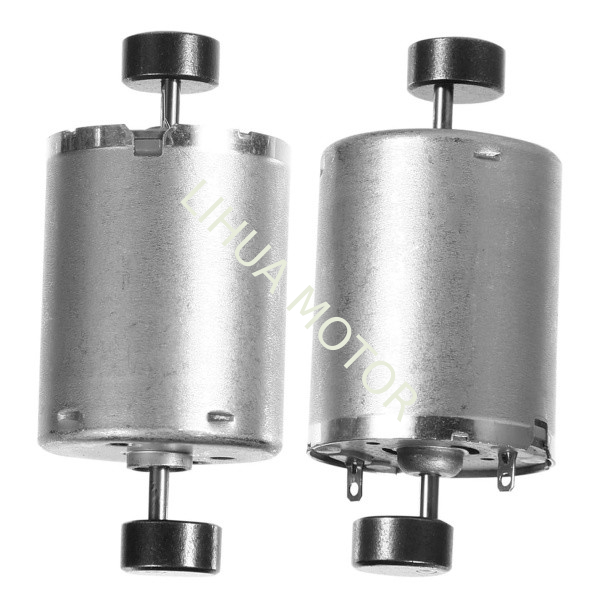

370 6V 12V Double Shaft Mini Vibration Motor , Small DC Electric Motors For Massager

370 6V 12V Double Shaft Vibration Motor Small DC Electric Motors For Massager

The 370 Double Shaft Vibration Motor is a high-performance, compact DC motor designed for applications requiring strong vibrations and reliable operation. Operating at 6V or 12V, this motor delivers powerful vibrations, making it ideal for massagers, therapeutic devices, and other vibration-based applications.

Key Features:

• Dual Shaft Design: Features two output shafts for versatile coupling options and easy integration.

• High Vibration Output: Delivers strong vibrations for effective performance in massage and therapeutic devices.

• Compact & Lightweight: Small size and lightweight construction make it perfect for portable and space-constrained applications.

• Multi-Functional: Suitable for a wide range of uses, from personal care devices to industrial vibration systems.

• Easy to Use: Simple installation and operation, making it convenient for both hobbyists and professionals.

RK-370 Dual Shaft  Motor Techincal Parameters:

• Model: RK-370 double shaft vibrating motor

• Shaft Type: Double Shaft

• Shaft Diameter: 2mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 24.4mm

• Motor Body Length: 30.8mm (Without shaft length)

• Voltage Range: DC 3V-24V

• Front Steps Diameter:6.4mm

• Front Step Height: 1.5 mm

• Diagonal Installation Pitch: 18.3mm

• Mounting Hole Size: M3

• Mounting Holes: 2 Holes

• No-load Speed Range:
  Voltage:3.0V Speed:11000RPM Current:0.54A
  Voltage:5.0V Speed:18500RPM Current:0.60A
  Voltage:7.5V Speed:27500RPM Current:0.76A
  Voltage:12V Speed:44000RPM Current:1.10A

Application Scenarios of the Dual-Shaft 370 Vibration Motor

The dual-shaft 370 vibration motor is a versatile and powerful component widely used across various industries. Below are its key application scenarios:

1. Small Massage Devices

The dual-shaft 370 motor is ideal for small massage devices due to its compact size and strong vibration effects. For example, 6V, 12V, or 24V small massage motors provide an excellent massage experience, making them perfect for personal use.

2. Creative Projects and Industrial Applications

This micro DC gear motor is equipped with worm gear technology, allowing speed adjustment between 6V and 24V and easy switching of rotation direction. Despite its small size, it delivers impressive power, making it suitable for:

• Creative Projects: DIY robotics, model building, and hobbyist applications.

• Industrial Applications: Small-scale automation, vibration feeders, and sorting systems.

3. Other Vibration-Based Devices

The dual-shaft 370 motor is also used in other devices requiring vibration functionality, such as:

• Small Massagers: Provides strong vibrations for therapeutic purposes.

• Vibration Head Balancers: Ensures precise balancing in industrial equipment.

For example, the Lihua Motor/HCS Motors 370 dual-shaft vibration motor can reach speeds of up to 8,500 RPM, making it ideal for small massage devices and other compact applications.
