8V 12V 24V 32mm*46mm 370 Small Worm Gear Motor Turbo Worm Gearbox Reduction

 8V 12V 24V 32mm*46mm 370 Small Worm Gear Motor Turbo Worm Gearbox Reduction

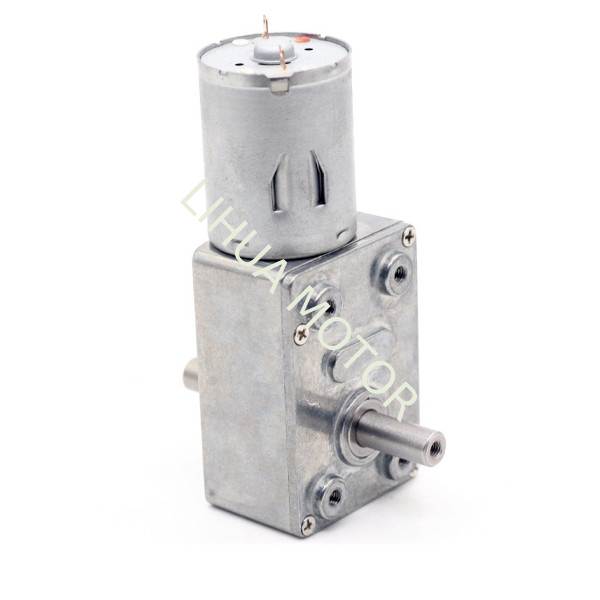

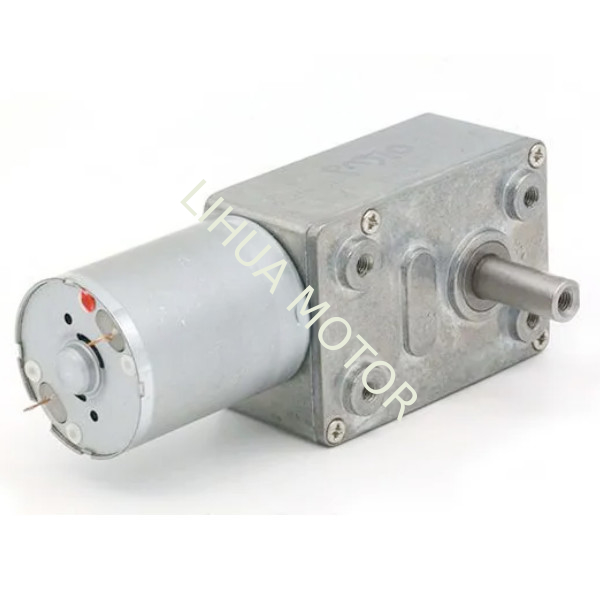

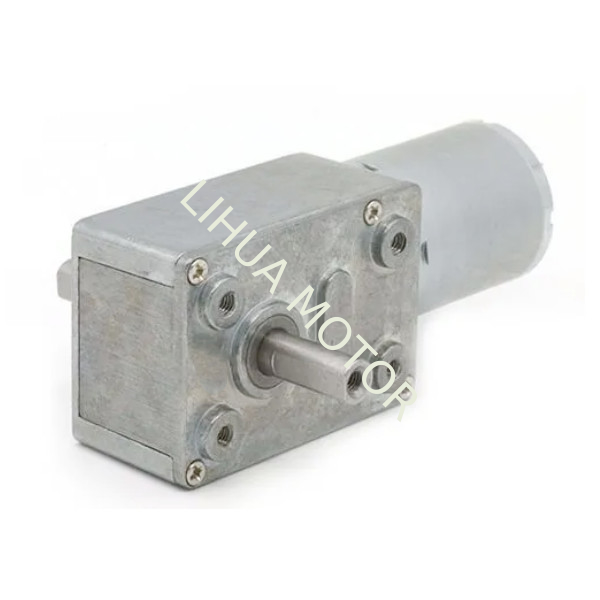

370 Worm Gear Reduction Motor – High Torque, Low Noise

The 370 Worm Gear Reduction Motor is a compact and efficient DC motor designed for applications requiring high torque and precise speed control. Operating at 12V with an output speed of 100 RPM, this motor features a 6mm shaft and a worm gearbox for reliable performance in space-constrained systems.

Key Features

1. Worm Gear Design:

   • Self-Locking: The output shaft cannot rotate when the motor is switched off, ensuring stability.

   • Right-Angle Driveshaft: The gearbox output shaft and motor shaft form a right angle, enabling flexible installation in tight spaces.

2. Reversible Rotation:

   • The motor's rotation direction can be changed by reversing the wiring polarity.

3. High Torque & Low Noise:

   • Delivers large torque (0.5 kg.cm to 15 kg.cm) with low noise operation, making it ideal for noise-sensitive environments.

4. Customizable Shaft:

   • Shaft shapes include D-type, O-type, knurling, screw thread, or custom designs to meet specific application needs.

5. Encoder Option:

   • Available with a magnetic encoder for precise speed and position control.

6. Durable Construction:

   • Metal Worm Gearbox: Ensures long-lasting performance and reliability.

   • Bearing Options: Available with bushings or ball bearings for smooth operation.

370 Small Worm Gear Motor Turbo Worm Gearbox Techincal Parameters:

• Gear Ratio: 37.3–2900
• Speed Range: 1–180 RPM
• Voltage Range: 3V–24V DC
• Output Torque: 0.5 kg.cm to15 kg.cm
• Single Motor Case Diameter: 24mm
• Single Motor Case Length: 30mm
• Motor Case Shape: L-type or T-type
• Brush Type: Carbon brush or metal brush
• Motor Type: DC double shaft gear motor
• Gearbox Type: Metal worm gearbox reducer
• Driveshaft Shape: D, O, knurling, screw thread, or customizable
• Bearing Type: Bushing or ball bearing

At 6V, the no-load speed can be selected:6-160RPM

At 12V, the no-load speed can be selected:8-160RPM

At 24V, the no-load speed can be selected:4-160RPM

370 Small Worm Gear Motor Turbo Worm Gearbox Dimension

370 Small Worm Gear Motor Turbo Worm Gearbox Applications

• Automation Systems: Used in conveyor belts, sorting machines, and robotic arms.

• Medical Devices: Powers small moving parts in diagnostic and therapeutic equipment.

• Smart Home Devices: Drives automatic blinds, curtains, and other smart home mechanisms.

• Toys and Hobby Models: Ideal for model trains, cars, and other DIY projects.

• Industrial Tools: Provides reliable power for small-scale machinery and tools.

Why Choose the 370 Worm Gear Reduction Motor?

• High Torque: Delivers strong power for demanding applications.

• Compact Design: Fits seamlessly into space-constrained systems.

• Low Noise: Ensures quiet operation for noise-sensitive environments.

• Customizable: Adaptable to specific application requirements.

Ideal for Engineers & Hobbyists – Whether for automation systems, medical devices, smart home applications, or DIY projects, the 370 Worm Gear Reduction Motor offers unmatched performance and versatility.
