FK-280 Mini DC Motor 3V 4.5V Compact DC Motor For Project Car Door Lock Actuator

FK-280 Mini DC Motor 3V 4.5V Compact DC Motor For Project Car Door Lock Actuator

  • Highlight

    FK-280 Mini DC Motor

    ,

    Mini DC Motor 3V

    ,

    4.5V Compact DC Motor

  • Voltage
    1.5V-24V
  • Motor Size
    18.4mm*24mm*30.5mm(H*D*L)
  • Shaft Diameter
    2mm
  • Motor Body Length
    30.5mm(Without Shaft Length)
  • No-load Speed
    2000rpm-22000rpm Or Customized
  • Wanranty
    48 Month
  • Motor ODM/OEM
    Accept Custom Service
  • Cable Custom
    Cable Length/Types/Material Can Be Custom
  • Name
    Mini DC Motor
  • Place of Origin
    Dongguan,China
  • Brand Name
    Lihua Motor/HCS Motors
  • Certification
    IATF16949/ISO9001/Reach/RoHs/SGS
  • Model Number
    FK-280
  • Minimum Order Quantity
    2000PCS
  • Packaging Details
    Foam Carton
  • Delivery Time
    35-45Days
  • Payment Terms
    L/C,T/T,D/A,D/P,Western Union
  • Supply Ability
    10000PCS/Day

FK-280 Mini DC Motor 3V 4.5V Compact DC Motor For Project Car Door Lock Actuator

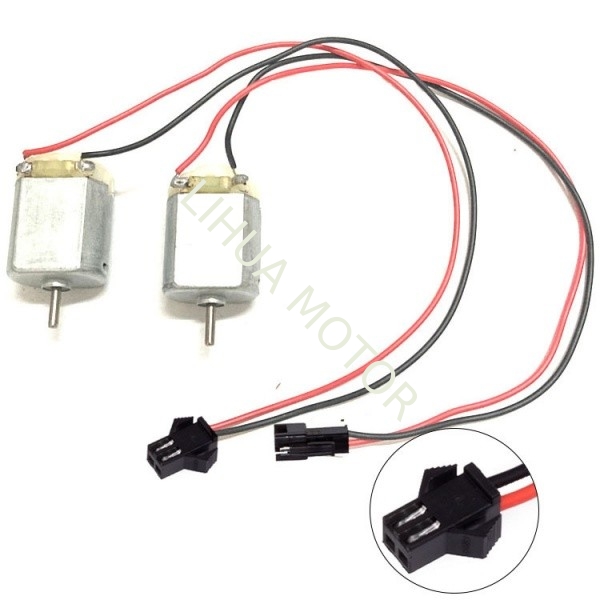

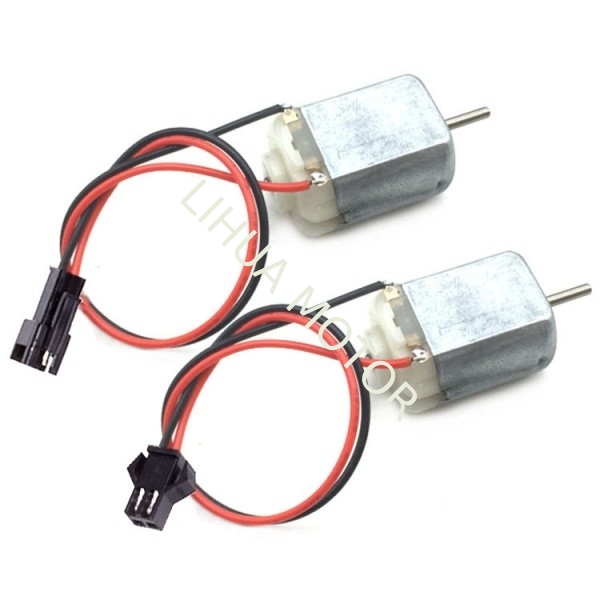

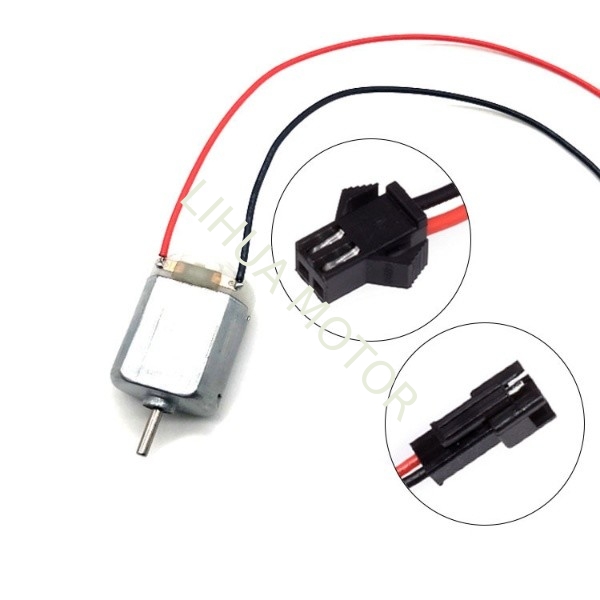

3V 4.5V FK-280 Motor With Leads 280 Mini Motor For Project Car Door Lock Actuator



The FK-280 Motor is a high-performance, compact DC motor manufactured by Mabuchi, designed for a wide range of applications, from automotive systems to toys and robotics. Operating at a nominal voltage of 12V DC, this motor delivers high-speed performance, precise control, and durable operation, making it ideal for both industrial and hobbyist projects.




FK-280 Motor With Leads Key Features

  1. High-Speed Performance:

    • No-Load Speed: 8,000 RPM at 12V.

    • Full Load Speed: Delivers 45.4 g/cm torque at 500 mA.

  2. Wide Voltage Range:

    • Compatible with 10V to 15V DC, offering flexibility for various power supplies.

  3. Compact Design:

    • Dimensions: 30.5mm (L) × 24.2mm (W) × 18.0mm (H).

    • Shaft Dimensions: 16.5mm (L) × 2.0mm (D).

    • Weight: 1.4 oz, making it lightweight and easy to integrate.

  4. Reversible Rotation:

    • Can operate in either direction by reversing the power supply polarity.

  5. Durable Construction:

    • Built with high-quality materials to withstand demanding environments.


FK-280 Micro Motor Technical Specifications

  • Motor Type: Brushed DC Motor.

  • Voltage Range: 10V–15V DC.

  • No-Load Current: 50 mA.

  • Stall Current: 800 mA.

  • Stall Torque: 325 g/cm.

  • Full Load Current: 500 mA.

  • Full Load Torque: 45.4 g/cm.

  • Shaft Diameter: 2.0mm.

  • Rotation Direction: Clockwise (CW) or Counterclockwise (CCW).


FK-280 Motor Applications

1. Automotive Systems

  • Power Mirrors: Adjusts mirror angles for optimal visibility.

  • Door Locks: Powers locking mechanisms for secure access control.

2. Toys and Hobby Models

  • Model Trains: Drives wheels for smooth and efficient operation.

  • Robots: Powers joints, arms, and other moving parts in robotic systems.

3. Consumer Electronics

  • Electric Shavers: Ensures smooth and efficient operation for grooming.

  • Miniature Robots: Provides reliable power for small-scale robotic projects.

4. DIY Projects

  • Educational Kits: Ideal for teaching basic motor principles and robotics.

  • Custom Gadgets: Powers small-scale DIY devices and gadgets.




FK-260SA-09450 Motor – Compact and High-Speed

The FK-260SA-09450 Motor is a compact and powerful DC motor designed for applications requiring high-speed performance and precise control. With a 2mm shaft diameter, this motor is compatible with a wide range of gears and mechanisms, making it ideal for electric shavers, toy vehicles, and miniature robots.

Key Features

  1. High-Speed Operation:

    • Delivers rapid rotation for efficient performance.

  2. Compact Design:

    • Lightweight and easy to integrate into small devices.

  3. Durable Construction:

    • Built with high-quality materials for long-lasting use.

  4. 2mm Shaft Diameter:

    • Compatible with various gears and mechanisms for precise power transmission.

Applications

  • Electric Shavers: Ensures smooth and efficient operation for grooming.

  • Toy Vehicles: Powers wheels for propulsion in model cars and trains.

  • Miniature Robots: Provides reliable power for small-scale robotic projects.

  • DIY Projects: Ideal for educational kits and custom gadgets.

Why Choose the FK-260SA-09450 Motor?

  • High-Speed Performance: Delivers rapid rotation for efficient operation.

  • Compact Design: Fits seamlessly into small devices and systems.

  • Durable Construction: Built to withstand continuous use in demanding environments.

  • Versatile Applications: Suitable for electric shavers, toy vehicles, and robotics.



3V 4.5V FK-280 Motor With Leads 280 Mini Motor  Dimension


FK280 3V 6V 12V Micro DC Motor Dimension



FK-280 dc Motor Data Examples

Model Voltage No load At maximum efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Torque Current
V R/min A R/min A mN-m g-cm W mN-m g-cm A
FK-280PA-20150 10.0 - 15.0 12 12,000 0.1 10,330 0.62 4.45 45.4 4.81 31.86 325 3.8
FK-280PA-18165 10.0 - 15.0 12 10,500 0.09 9,000 0.54 4.12 42 3.88 28.92 295 3.25
FK-280SA-18165 10.0 - 15.0 12 12,300 0.075 10,710 0.5 3.40 34.7 3.82 26.27 268 3.4
FK-280S-3736 1.5-3.0 2.4 11300 0.30 9562 1.58 2.38 24.3 2.54 15.59 159 8.74
FK-280S-3158 1.5-3.0 2.4 7400 0.18 6152 0.91 2.53 25.8 1.41 14.31 146 4.63
1mN.m=10.2g.cm
All data in chart can be custom as your need.
