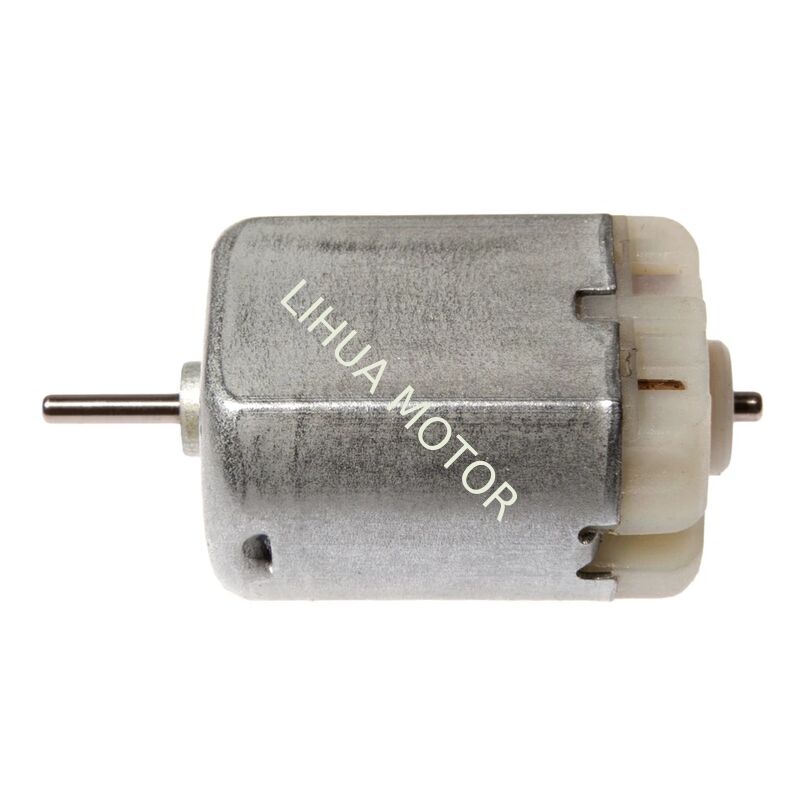

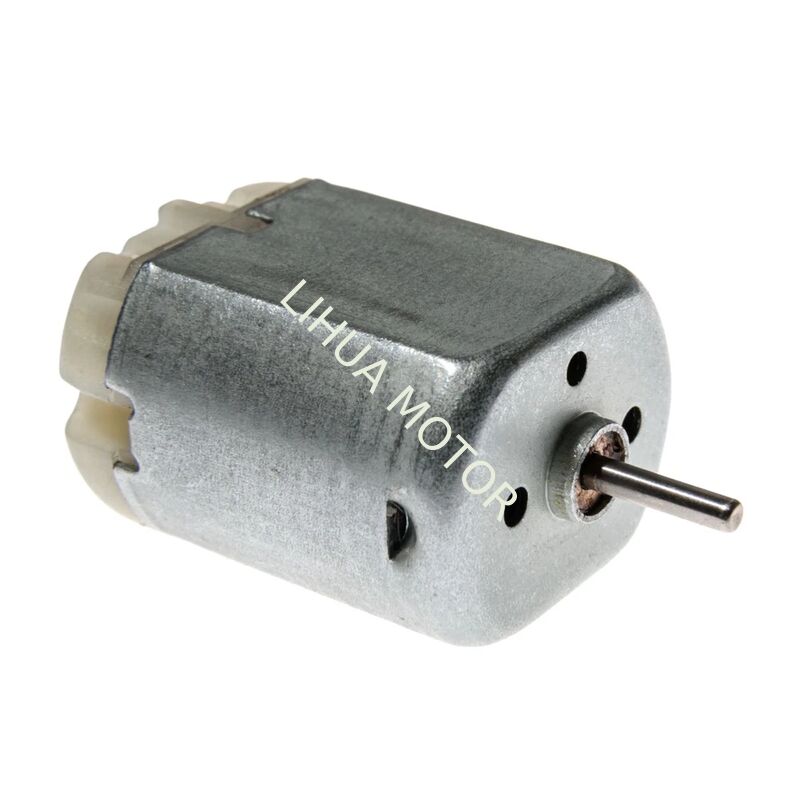

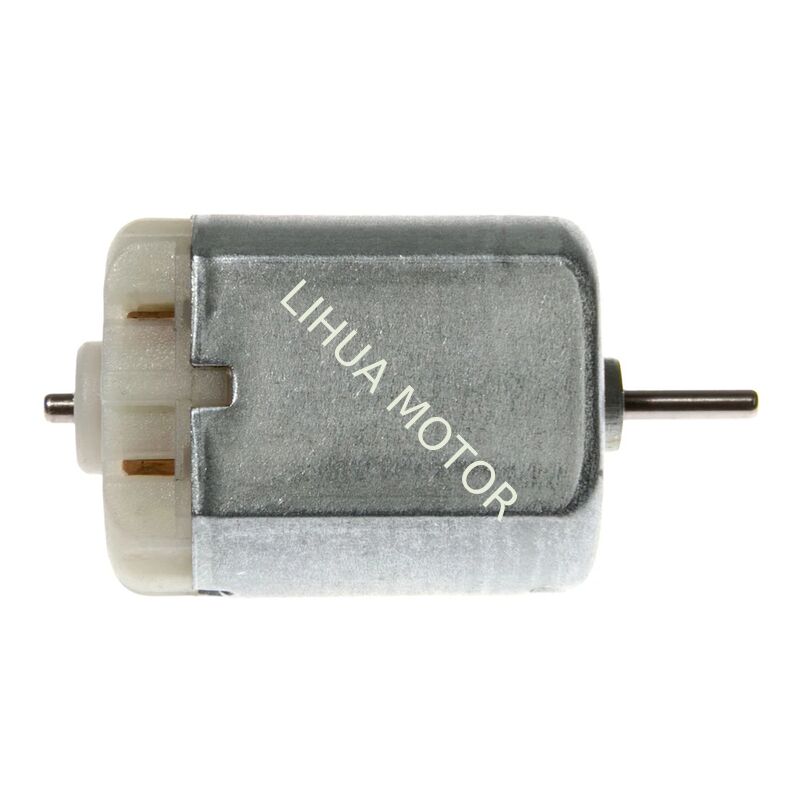

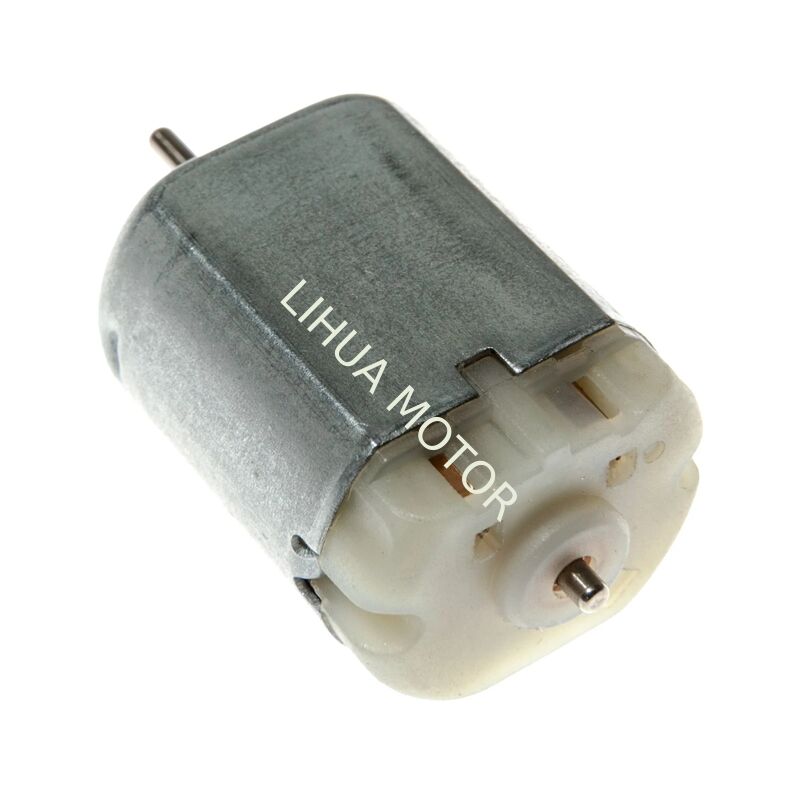

24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output

The FK-280 is a 24mm diameter precious metal brush DC motor featuring ultra-low voltage operation (1.5V-3.0V), making it ideal for battery-powered applications. With an extended 30.5mm body length, this motor delivers higher torque and power output compared to shorter variants. The precious metal brush design ensures low electrical noise, minimal sparking, and smooth operation—critical for sensitive electronic devices. Two winding configurations offer speed options of 7400 RPM or 11300 RPM at 2.4V nominal voltage. Maximum efficiency output reaches 2.54W with stall torque up to 159 g.cm. The motor features clear polarity marking (RED MARK "+") for easy installation.

• 24mm diameter with extended 30.5mm body for higher power
• Precious metal brush design — low noise and minimal EMI
• Ultra-low voltage operation: 1.5V-3.0V (2.4V nominal)
• Dual speed options: 7400 RPM or 11300 RPM
• High efficiency output up to 2.54W
• Low current consumption for battery-powered devices
• Clear polarity marking for easy installation
• Standard φ2mm shaft diameter
• Custom voltage and speed specifications available

• Battery-powered devices, Portable electronics, Precision instruments, Audio equipment, Medical devices, Toys and hobbies, Low voltage applications, Sensitive electronic equipment
