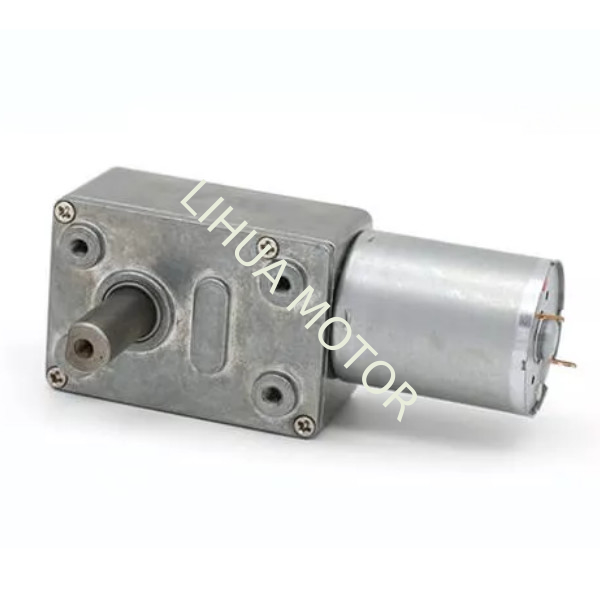

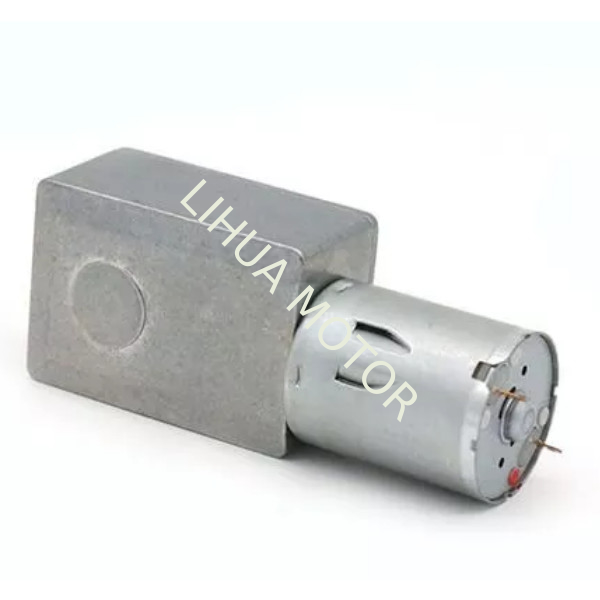

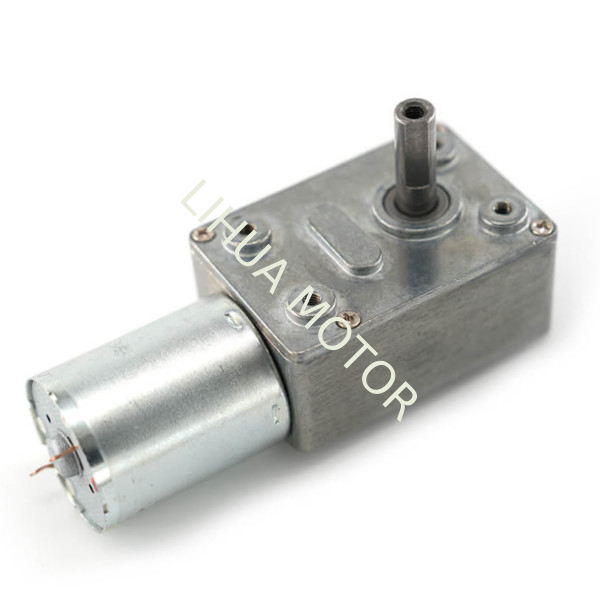

Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox

Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox

Products - Worm Gear Motor
  • Highlight

    Turbo Worm Geared Motor

    ,

    Worm Geared Motor 12V

    ,

    24V High Torque Worm Gearbox

  • Material
    Metal /Copper
  • Voltage
    3V/ 6V/ 12V
  • Gear Ratio
    40:1 65:1 150:1 200:1 260:1 340:1 600:1 1000:1
  • Application
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument
  • Main Body Size
    76.8 X 32 X 25 Mm
  • Gearbox Diameter
    46 X 32 X 25mm
  • Operating Temperature
    -20°C-70°C
  • Current
    0.6A
  • Torque
    45Kg.cm
  • Weight
    500g
  • Name
    Worm Gear Motor
  • Place of Origin
    Dongguan,China
  • Certification
    ISO9001,Reach,RoHs
  • Model Number
    JGY370
  • Minimum Order Quantity
    500pcs
  • Packaging Details
    Foam Box
  • Delivery Time
    40-45days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    5000PCS/Day

Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox

  • Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox
  • Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox
  • Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox
  • Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox
Get Price Contact Now

Low Speed Turbo Worm Geared Motor Worm Gear Motor 12V 24V High Torque Worm Gearbox



The Micro Vibration Motor with Worm Gear is a compact and high-performance motor designed for a wide range of applications, from DIY projects to industrial automation. With a nominal voltage of 12V DC and a gear ratio of 1:37.3, this motor delivers high torque, low noise, and precise control, making it ideal for space-constrained systems. Its durable construction, self-locking mechanism, and variable speed options ensure reliable performance in demanding environments.



Key Features

  1. High Torque Output:

    • Delivers 0.55 kg*cm rated torque and 2.2 kg*cm stall torque, ensuring strong power for demanding tasks.

  2. Low Noise Operation:

    • Engineered for quiet performance, making it suitable for noise-sensitive environments like home automation and medical devices.

  3. Self-Locking Mechanism:

    • The worm gear design prevents back-driving, ensuring stability and precise control.

  4. Variable Ratio Options:

    • Offers 6 speed types: 40:1, 65:1, 150:1, 200:1, 260:1,,340:1 , 600:1,1000:1 allowing customization based on application needs.

  5. Durable Construction:

    • Made with high-quality materials and 3 layers of high-density molecular coating, providing dust insulation, high-temperature resistance, and long service life.

  6. Compact and Lightweight:

    • Dimensions: 77mm (L) × 26mm (W) × 32mm (H).

    • Hollow Shaft Design

    • Weight: 160g, making it easy to integrate into small devices.

  7. Widely Used in projects like:
    • DIY robotics and automation
    • Wheel drives for small robots
    • Window and door actuators
    • Camera pan/tilt systems
    • Automatic curtains and gates



JGY370 3V-6V DC Motor With Worm Gear Datasheet (370 without worm gear speed 6000rpm)



Reduction
Ratio		 Rated
Voltage		 No-Load Rated Stall
Torque		 Stall
Current
Speed Current Torque Speed Current
V rpm mA Kg.cm rpm A Kg.cm A
40 6 150 ≤100 1.2 100 ≤0.6 2.5 2
65 90 ≤100 2 70 ≤0.6 4 2
150

40

 ≤100 4.5 30 ≤0.6 9 2
200 30 ≤100 6 22 ≤0.6 12.5 2
260 23 ≤100 8 17 ≤0.6 16 2
340 18 ≤100 12 13 ≤0.6 21 2
600 10 ≤100 17 7 ≤0.6 35 2
1000 6 ≤100 25 4 ≤0.6 35 2



JGY370 3V-12V DC Motor With Worm Gear Datasheet (370 without worm gear speed 6000rpm)



Reduction Ratio Rated
Voltage		 No-Load Rated Stall
Torque		 Stall
Current
Speed Current Torque Speed Current
V rpm mA Kg.cm rpm A Kg.cm A
40 6 150 ≤60 1.2 100 ≤0.6 2.5 1.5
65 90 ≤60 2 70 ≤0.6 4 1.5
150

40

 ≤60 4.5 30 ≤0.6 9 1.5
200 30 ≤60 6 22 ≤0.6 12.5 1.5
260 23 ≤60 8 17 ≤0.6 16 1.5
340 18 ≤60 12 13 ≤0.6 21 1.5
600 10 ≤60 17 7 ≤0.6 35 1.5
1000 6 ≤60 25 4 ≤0.6 35 1.5



JGY370 3V-24V DC Motor With Worm Gear (370 without worm gear speed 6000rpm)



Reduction
Ratio		 Rated
Voltage		 No-Load Rated Stall
Torque		 Stall
Current
Speed Current Torque Speed Current
V rpm mA Kg.cm rpm A Kg.cm A
40 6 150 ≤45 1.2 100 ≤0.6 2.5 0.9
65 90 ≤45 2 70 ≤0.6 4 0.9
150

40

 ≤45 4.5 30 ≤0.6 9 0.9
200 30 ≤45 6 22 ≤0.6 12.5 0.9
260 23 ≤45 8 17 ≤0.6 16 0.9
340 18 ≤45 12 13 ≤0.6 21 0.9
600 10 ≤45 17 7 ≤0.6 35 0.9
1000 6 ≤45 25 4 ≤0.6 35 0.9





Features and Details For JGY370 Low Speed Turbo Worm Geared Motor Worm Gear Motor

Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox 0Low Speed Turbo Worm Geared Motor 12V 24V High Torque Worm Gearbox 1





Worm Gear Motors: Key Questions Answered

Worm gear motors are widely used in various industries due to their high torque output, compact design, and self-locking mechanism. Below are answers to some common questions about worm gear motors:

1. What Are the Cons of Worm Gears?

While worm gears offer many advantages, they also have some limitations:

  • Lower Efficiency: Worm gears typically have lower efficiency (around 50%–90%) compared to other gear types due to sliding friction between the worm and gear.

  • Heat Generation: The sliding action can generate significant heat, requiring proper lubrication and cooling.

  • Limited Speed: Worm gears are not ideal for high-speed applications due to their design and friction.

  • Cost: They can be more expensive to manufacture and maintain compared to simpler gear types.

2. Can Worm Gears Be Back-Driven?

  • Self-Locking Mechanism: Worm gears are generally not back-driven because of their self-locking design. The angle of the worm thread prevents the gear from driving the worm, ensuring stability and safety in applications like lifts and conveyors.

  • Exceptions: Some worm gears with high lead angles or special designs can be back-driven, but this is uncommon.

3. What Is the Difference Between Worm Gear Motors and Helical Gear Motors?

  • Design:

    • Worm Gear Motors: Use a worm (screw-like shaft) and gear (wheel with teeth) to transmit motion at a 90-degree angle.

    • Helical Gear Motors: Use helical gears (angled teeth) to transmit motion between parallel or perpendicular shafts.

  • Efficiency:

    • Worm Gears: Lower efficiency due to sliding friction.

    • Helical Gears: Higher efficiency due to rolling contact between teeth.

  • Torque and Speed:

    • Worm Gears: Provide high torque at low speeds.

    • Helical Gears: Suitable for higher speeds and moderate torque.

  • Self-Locking:

    • Worm Gears: Typically self-locking, preventing back-driving.

    • Helical Gears: Not self-locking, allowing bidirectional motion.
