5mm Double Shaft Motor DC775 12V DC Electric Motors High Torque DC Motor 6000RPM

Motor DC775 12V DC Electric Motors High Torque DC Motor Ball Bearing 6000RPM

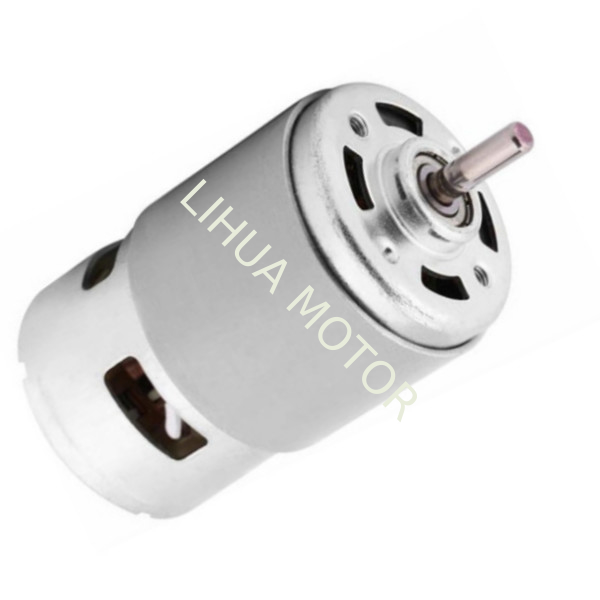

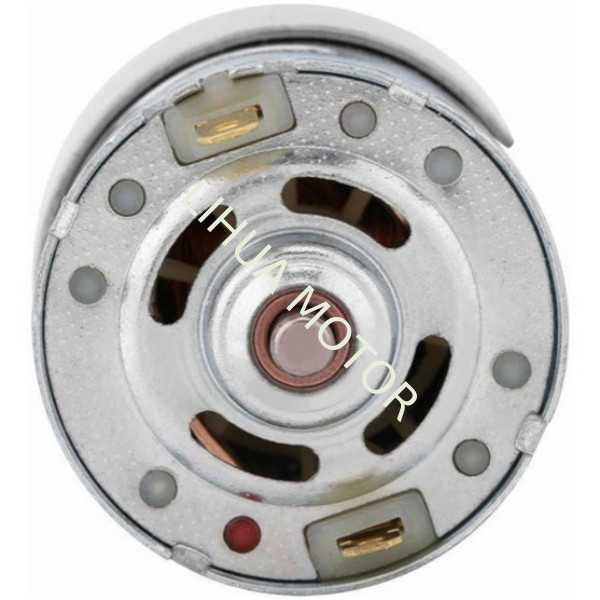

The RS-775 DC motor is a high-performance brushed motor designed for demanding applications requiring high torque and stable output. It features a copper commutator set at the rear end, with a five-group winding configuration, ensuring enhanced electromagnetic efficiency and thermal stability.

The motor supports operation at 6V, 12V, or 24V DC, providing flexibility across a wide range of system designs. It is engineered for low acoustic noise and high torque output, making it particularly suitable for use in electric tools, small spindle drives, and DIY machinery.

The 775 designation refers to the standardized outer frame size of the motor housing, ensuring mechanical compatibility across multiple applications and mounting systems. The 12V variant offers a nominal speed of 4000 RPM under load, combining high-speed rotation with substantial torque performance.

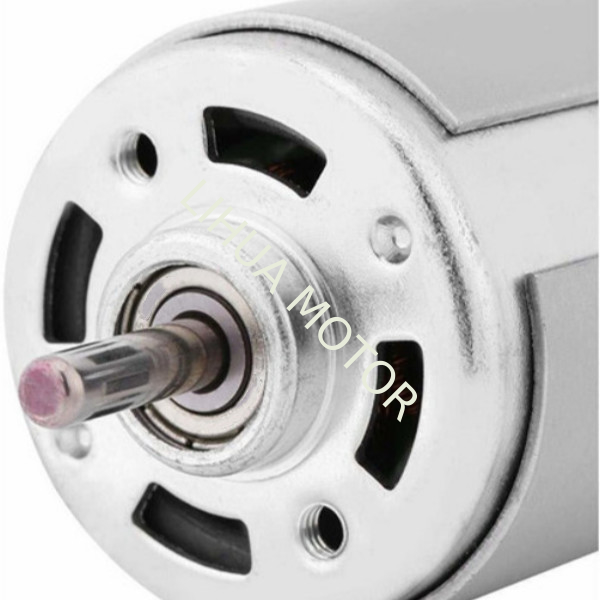

This motor incorporates ball bearing support, contributing to reduced friction, extended service life, and improved load-handling capability. Key parameters such as operating voltage, rated current, shaft dimensions, gear assembly, and load characteristics can be custom-engineered to meet specific application requirements.

The RS-775 DC motor is widely adopted in applications requiring high power density, continuous duty operation, and compact form factor, such as:

• Cordless power tools
• Portable cutting/drilling equipment
• DIY automation projects
• Miniature mechanical spindles
• Robotics and motion control systems

Its robust design and high adaptability make it one of the most utilized brushed DC motor platforms in both industrial and consumer-grade applications.

RS 775 DC Motor Key Features:

• Model: RS-775SM Motor

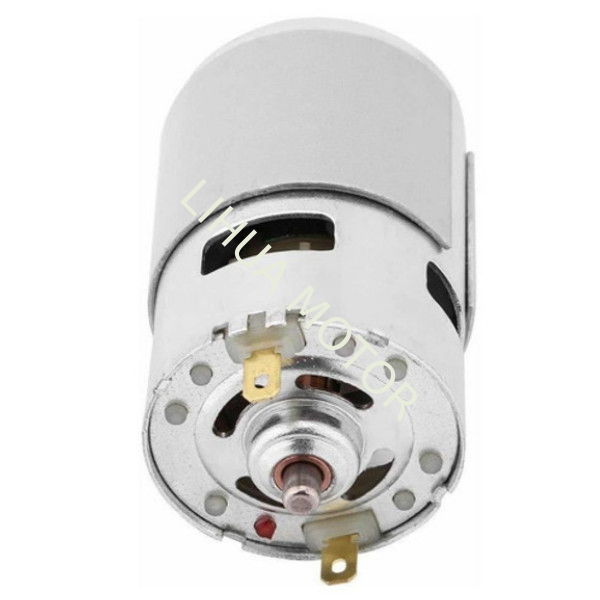

• Shaft Type: Double Shaft

• Shaft Diameter: 5mm

• Shaft Length: Free-Customization (L)

• Motor Body Diameter: 42mm

• Motor Body Length: 66mm

• Voltage Range: DC 12V-24V

• Front Steps Diameter: 17.5 mm

• Former High Level: 4.5 mm

• Diagonal Installation Pitch: 29 mm

• Mounting Hole Size: M4

• Mounting Holes: 2 Holes

RS 775 DC Motor Parameter

1. Popular Models under 12V Voltage

(1) RS775-12V-8500RPM

• Voltage: 12V

• No-load Speed: 8500 RPM

• No-load Current: 1.5A

• Load Speed: 7000 RPM (typical load)

• Load Current: 10A

• Torque: 150 mNm

• Power: Approx. 100W

• Applications: Power tools, small mechanical equipment

(2) RS775-12V-10000RPM

• Voltage: 12V

• No-load Speed: 10000 RPM

• No-load Current: 1.8A

• Load Speed: 8000 RPM (typical load)

• Load Current: 12A

• Torque: 120 mNm

• Power: Approx. 120W

• Applications: High-speed drills, model aircraft

(3) RS775-12V-6000RPM (High Torque Type)

• Voltage: 12V

• No-load Speed: 6000 RPM

• No-load Current: 1.2A

• Load Speed: 5000 RPM (typical load)

• Load Current: 15A

• Torque: 200 mNm

• Power: Approx. 90W

• Applications: Electric winches, heavy-duty tools

2. Popular Models under 24V Voltage

(1) RS775-24V-12000RPM

• Voltage: 24V

• No-load Speed: 12000 RPM

• No-load Current: 1.0A

• Load Speed: 10000 RPM (typical load)

• Load Current: 8A

• Torque: 100 mNm

• Power: Approx. 200W

• Applications: Industrial automation equipment, high-speed fans

(2) RS775-24V-8000RPM (High Torque Type)

• Voltage: 24V

• No-load Speed: 8000 RPM

• No-load Current: 1.5A

• Load Speed: 6000 RPM (typical load)

• Load Current: 12A

• Torque: 250 mNm

• Power: Approx. 180W

• Applications: Electric vehicle drives, heavy machinery

(3) RS775-24V-15000RPM (Ultra-high-speed Type)

• Voltage: 24V

• No-load Speed: 15000 RPM

• No-load Current: 1.2A

• Load Speed: 12000 RPM (typical load)

• Load Current: 10A

• Torque: 80 mNm

• Power: Approx. 250W

• Applications: High-speed centrifuges, precision machining equipment

3. General Parameters

• Motor Size: Diameter approx. 42mm, length approx. 82mm (may vary slightly by model).

• Shaft Diameter: Typically 5mm or 6mm.

• Weight: Approx. 500-700g (depending on the model).

• Material: Steel or aluminum alloy housing, copper wire windings internally.

• Lifespan: Typically 500-1000 hours (depending on usage conditions).

4. Selection Recommendations

• 12V Models: Suitable for low-voltage applications, such as portable tools and models.

• 24V Models: Suitable for industrial equipment or electric vehicles requiring higher power and speed.

• High Torque Models: Suitable for applications requiring high torque, such as winches and heavy machinery.

• Ultra-high-speed Models: Suitable for applications requiring high speed, such as centrifuges and high-speed fans.

If more detailed parameters or customized solutions are needed, please feel free to contact us!
