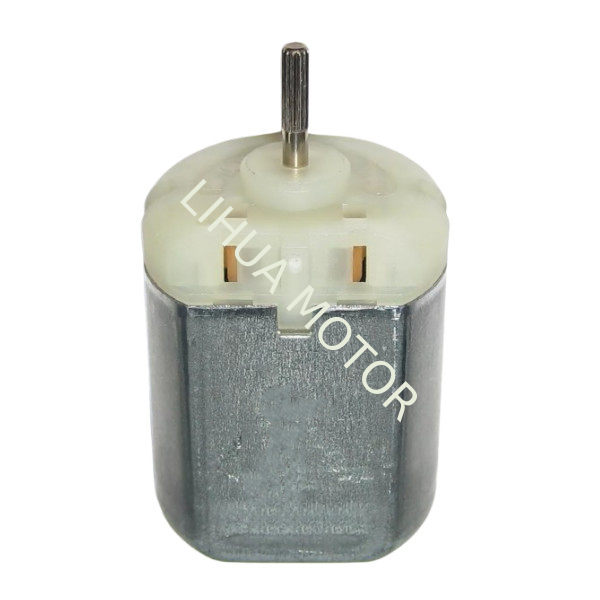

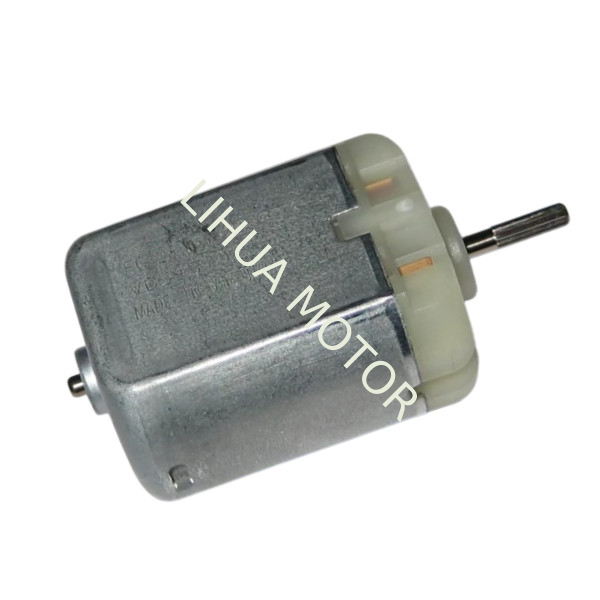

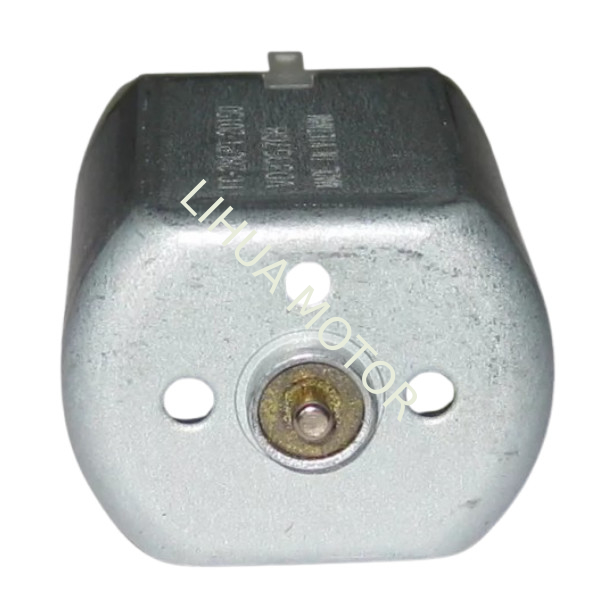

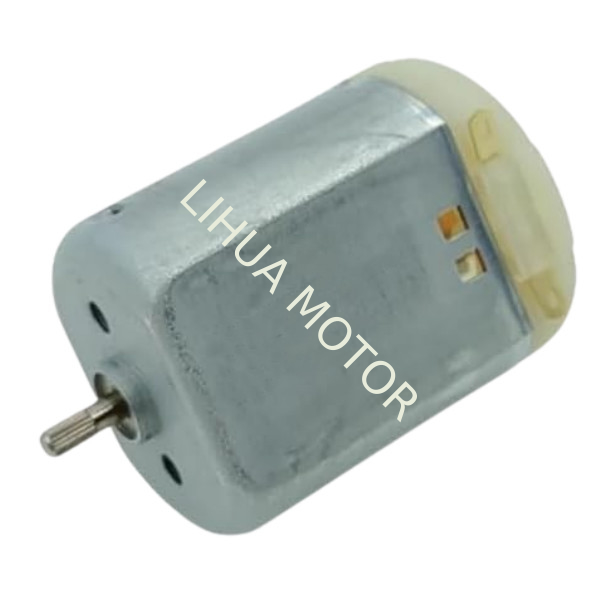

12V FC-280 Knurled Shaft Flat DC Motor 6000 Rpm Electric Motor for Door Lock Actuators

Products - Mini DC Motor

Highlight

12V Flat DC Motor
,
Knurled Shaft Flat DC Motor
,
6000 Rpm Electric Motor
Model Number

FC- 280 Motor
Materials

Metal And Plastic
Direction

CW/CCW
OEM/OEM

Available
Motor Size

18.4mm*30.5mm*24mm (H*L*D)
Output

0.3w-23w
Screw Holes Size

2.3mm
Distance Screw Hole

11.5mm
Name

Mini DC Motor
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/HCS Motors
Certification

IATF16949/ISO9001/Reach/RoHs/SGS
Model Number

FC-280 knurled Shaft
Document

17-FC-280-Model.pdf
Minimum Order Quantity

2000PCS
Packaging Details

Foam Carton
Delivery Time

35-45Days
Payment Terms

L/C,T/T,D/A,D/P,Western Union
Supply Ability

10000PCS/Day

12V FC-280 Knurled Shaft Flat DC Motor 6000 Rpm Electric Motor for Door Lock Actuators

Name: 12V FC-280 Knurled Shaft Flat DC Motor 6000 Rpm Electric Motor for Door Lock Actuators
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: FC-280 knurled Shaft
Price: 0.35 USD
Availability: InStock

button button

Get Price Contact Now

12V FC-280 Knurled Shaft Flat DC Motor 6000 Rpm Electric Motor Door Lock Actuators

The 12V FC-280 knurled shaft flat DC motor is a high-performance motor designed for precision and durability. With a speed of 6000 RPM, it delivers efficient and reliable power for a variety of applications. The knurled shaft ensures a secure and stable connection, making it perfect for use in door lock actuators, automotive systems, robotics, and small machinery. Its compact and flat design allows for easy integration into tight spaces, while its robust construction ensures long-lasting performance in demanding environments. Whether for industrial, automotive, or DIY projects, this motor provides the perfect combination of speed, power, and reliability.

12V FC-280 Knurled Shaft Flat DC Motor Dimension and Size

12V FC-280 Knurled Shaft Flat DC Motor 6000 Rpm Electric Motor for Door Lock Actuators 0

FK-280 dc Motor Data Examples

Model	Voltage		No load		At maximum efficiency					Stall
	Range	Rated	Speed	Current	Speed	Current	Torque		P.out	Torque		Current
	V		R/min	A	R/min	A	mN-m	g-cm	W	mN-m	g-cm	A
FK-280PA-20150	10.0 - 15.0	12	12,000	0.1	10,330	0.62	4.45	45.4	4.81	31.86	325	3.8
FK-280PA-18165	10.0 - 15.0	12	10,500	0.09	9,000	0.54	4.12	42	3.88	28.92	295	3.25
FK-280SA-18165	10.0 - 15.0	12	12,300	0.075	10,710	0.5	3.40	34.7	3.82	26.27	268	3.4
FK-280S-3736	1.5-3.0	2.4	11300	0.30	9562	1.58	2.38	24.3	2.54	15.59	159	8.74
FK-280S-3158	1.5-3.0	2.4	7400	0.18	6152	0.91	2.53	25.8	1.41	14.31	146	4.63
1mN.m=10.2g.cm All data in chart can be custom as your need. Model name is different due to difference manufacturer or customer,so if you want to get the same motor ,please contact us .

FC-280 Motor: Versatile 12V DC Motor for Automotive and Beyond

The FC-280 motor is a widely used 12V DC motor, particularly favored in automotive applications due to its reliability and versatility. It is commonly employed in mechanisms such as door lock actuators, power-folding door mirrors, and steering locks. Here’s a detailed overview of its applications:

Automotive Applications:

Door Lock Actuators: The FC-280 motor is a popular choice for powering the mechanisms that lock and unlock car doors, ensuring smooth and efficient operation.
Door Mirror (Power Fold): It drives the mechanisms that enable the folding of car side mirrors, adding convenience and functionality.
Steering Lock: In some vehicles, this motor is integrated into the steering lock system, enhancing security and usability.

Other Potential Applications:

RC Model Toys: The FC-280 motor is suitable for use in remote-controlled model toys, providing high performance and durability.
Electrical Equipment: Its compact design and reliable operation make it a great fit for various electrical devices and equipment.

The FC-280 motor’s combination of efficiency, compact size, and robust performance makes it a versatile choice for both automotive and non-automotive applications.
