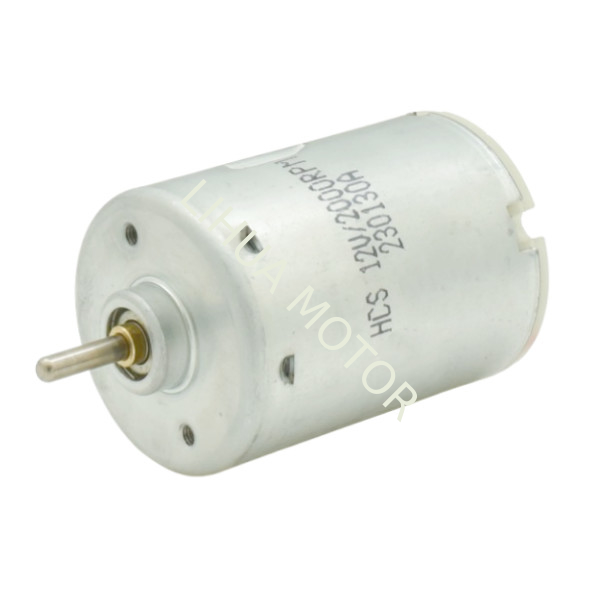

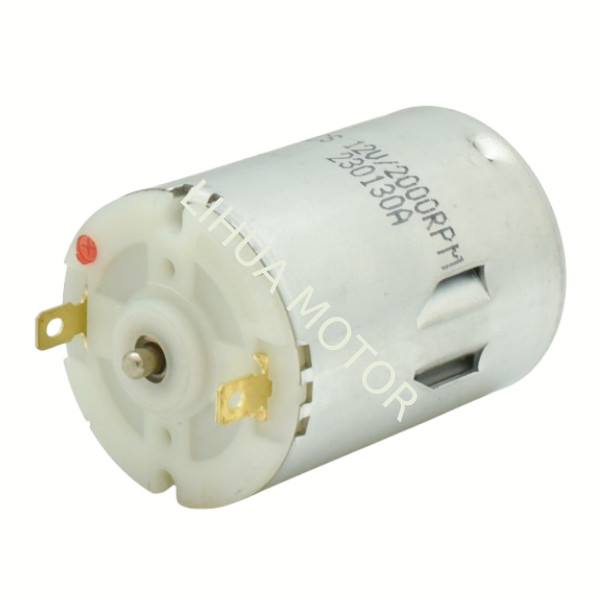

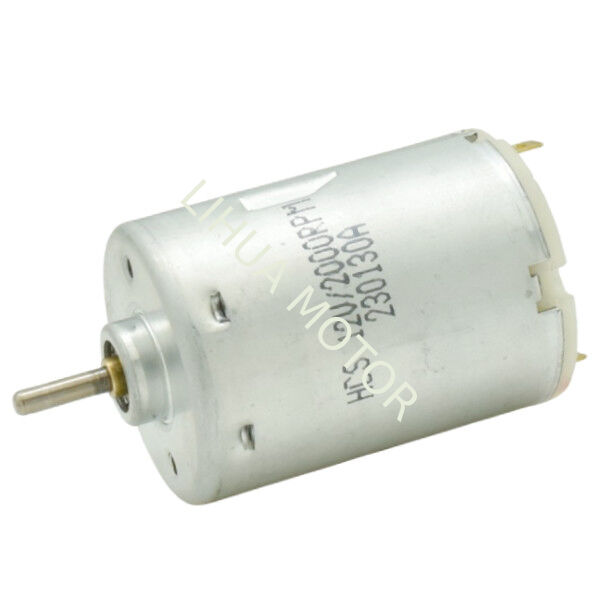

RS-545 DC Motor 24V 12V DC Motor High Torque Low Rpm 2000RPM-3810RPM For Vacuum Cleaner

RS-545 DC Motor 12V 24V  2000RPM-3810RPM High Torque Low Rpm For Vacuum Cleaner

The RS-545 DC Motor is a high-performance motor designed for applications requiring precision, efficiency, and durability. With a rated voltage range of 6V–36V and a rated output power of up to 110W, this motor delivers high torque and speed, making it ideal for demanding tasks in industries such as manufacturing, construction, and metalworking.

RS-545 Mini Motor High Torque Parameter List

RS-545 Motor Plastic Cover End  Drawing /Dimension

RS-545 Motor Full Metal Cover End  Drawing /Dimension

Precautions For Use:

Popluar RS-545 Motor Parameter List you may interested:

RS-545SMTPG-2775
DC/12V   No-load Speed:3700±8%rpm    No-load Current ≤130mA

Stall Torque:100g-cm,Stall Speed:3400±10%rpm,   Stall Current ≤480mA

Shaft Length:12.5±0.5mm

RS-545SM-14180

DC/24V  ,No-load Speed:3830±5%rpm,   No-load Current≤95mA

Load Torque:120g-cm,Stall Speed:3126±10%rpm,   Stall Current≤350mA

Shaft Length:10.0±0.5mm

RS-545SAT-17160

DC/12V , No-load Speed :2000±100RPM,   No-load Current≤70mA

Load Torque:100g-cm ;Stall Torque≥1000g-cm,Stall Speed:1650±10﹪RPM ,  Stall Current≤350mA

Shaft Length:15.0±0.5mm

RS-545SAGT-20125

DC/12V, No-load Speed:2600±100RPM  , No-load Current≤90mA

Load  Torque:100g-cm,Stall Torque≥680g-cm; Stall Speed:2200±10﹪RPM ,Stall Current≤450mA

Shaft Length:15.0±0.5mm

RS-545SMTP-15197

DC/24V, No-load Speed:3150±8%RPM  , No-load Current≤95mA

Load Torque:100g-cm, Stall Speed:2800±10﹪RPM ,Stall Current≤350mA

Shaft Length:15.0±0.5mm

Who We are -Lihua Motor/HCS Motors

DC Micro Motor Manufacturer Lihua Motor excels in producing high-performance DC micro motors, offering precision-engineered products with over 20 years of expertise and international certifications.	Mini Motor Specialist As specialists in mini motors, Lihua Motor focuses on delivering compact, efficient solutions tailored to industries like robotics and consumer electronics.
Custom Small Brushed Motor Factory We specialize in custom 1v-36v small brushed motors, providing flexible, made-to-order solutions that meet unique application requirements with high reliability and quality.	One-stop Motor Solution Provider As a comprehensive provider of motor solutions, handling everything from initial design to final production with a focus on customer-specific needs and scalability.offering end-to-end services from design to delivery.

Why the RS-545 Motor is Ideal for Vacuum Cleaners

The RS-545 motor is widely used in vacuum cleaners due to its high performance and adaptability. Its unique features and advantages make it an excellent choice for this application:

1. High Speed:

   • With a maximum speed of 19,000 RPM, the RS-545 motor provides powerful suction, effectively removing dust and debris from surfaces.

2. Pure Copper Windings:

   • The rotor is wound with pure copper wire, reducing heat generation and extending the motor's lifespan, which is crucial for vacuum cleaners that operate for extended periods.

3. Dynamic Balance Testing:

   • The motor undergoes dynamic balance testing, minimizing vibration and noise for smoother operation and an enhanced user experience.

4. Multiple Bearing Configurations:

   • The motor can be equipped with double oil-impregnated bearings, single ball bearings, or double ball bearings, making it adaptable to different working environments and requirements.

5. Built-in Cooling Fan:

   • The motor features an internal cooling fan that dissipates heat quickly, improving efficiency and extending the motor's service life.
