12V DC Worm Gear Motor
,12 Volt DC Worm Gear Motor
,Mini 370 Range Hood Motor
-
Name12V DC Worm Gear Motor
-
Single Motor Diameter24mm*30.8mm (D*L)
-
Motor TypeRF-370CBG-12240
-
Nominal Volt12V
-
No-Load Speed4300±430r/min Or As You Need
-
No-Load Current≤60mA
-
Motor Shaft Diameter2mm
-
Shaft Length6.5±0.3mm
-
Motor ApplicationsWorm Gear Motor /Range Hood Motor
-
Place of OriginDongguan,Chia
-
Brand NameLihua Motor/ HCS Motors
-
CertificationISO9001/CE/RoHs/Reach
-
Model Number370CBG-12240 Gear Motor
-
Minimum Order Quantity3000PCS
-
Packaging DetailsCarton
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union,MoneyGram
-
Supply Ability30000PCS/Day

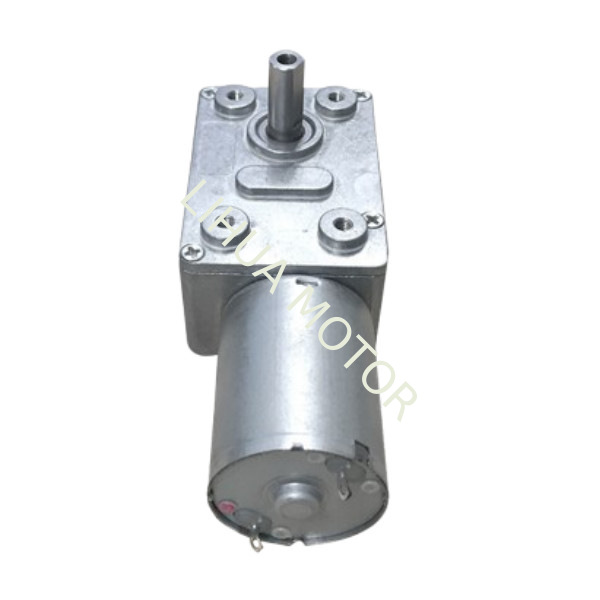

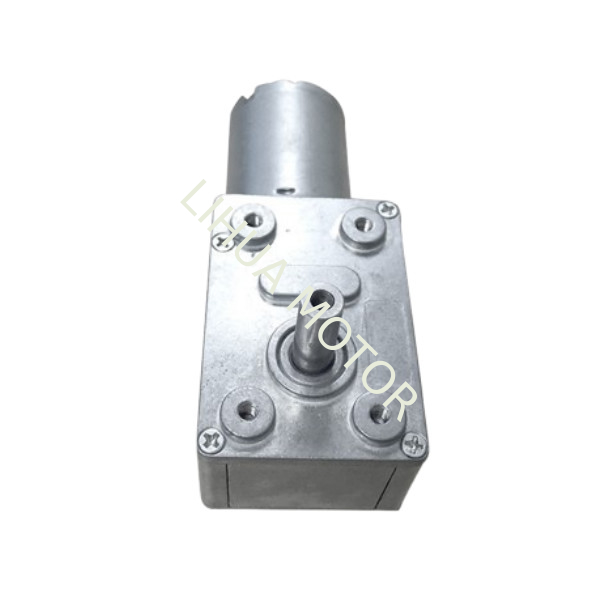

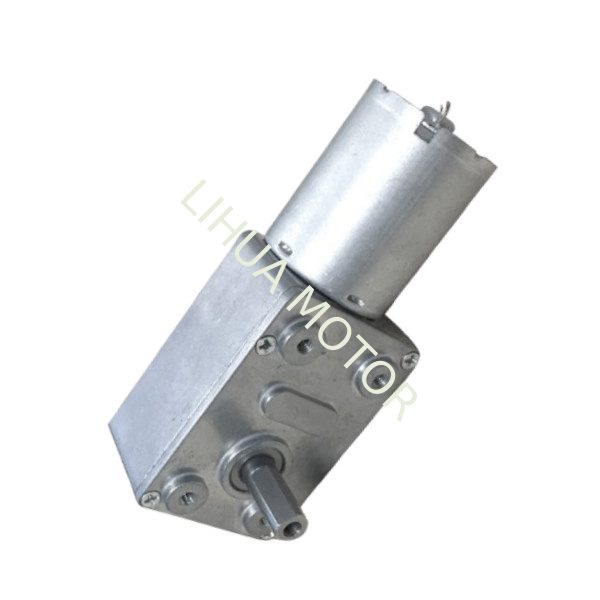

12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
12V Electric Motor 4000Rpm 24mm Mini 370 Motor DC Worm Gear Motor Range Hood Motor
RF-370CBG-12240 Range Hood Motor Micro Motor Technical Parameter
1.Single Model: RF-370CBG-12240
2.370 Motor diameter: 24.4±0.3mm
3.370 Motor length: 30.8mm
4.370 Output shaft diameter: 2mm
5.Output shaft length:10.5±0.3mm or as your request
6.Weight:80g
7.Rated Volt:12V
8.Operating Voltage Range:11V-13V
9.No-load Speed:4300±430r/min
10.No-load Current:16mA
11.StartingTorque:250g.cm (Min)
12.Rotating Direction:CCW
13.Operating Temperature:-20℃～＋70℃
14.Mechanical Noise:65dB
15.Customization Service:Voltage, speed,torque and current can be custom.
16.Environment: 25±5℃ / 40%-70%RH
24mm Mini 370 Gearbox Motor Electric Motor Types and Dimension
|
Model:JGY-370-0660 |
|||||||||
|
Ratio |
No-load |
Rated load |
Stall |
||||||
|
Rated Volt (V) |
Speed (RPM ± 10%) |
Current (A) |
Speed (RPM ± 10%) |
Current (A) |
Torque (Kg.cm) |
Output (W) |
Torque(Kg.cm) |
Current (A) |
|
|
40 |
6 |
150 |
0.10 |
100 |
0.6 |
1.20 |
1.26 |
2.5 |
1.8 |
|
65 |
6 |
90 |
0.10 |
70 |
0.6 |
2.00 |
1.47 |
4 |
1.8 |
|
150 |
6 |
40 |
0.10 |
30 |
0.6 |
4.50 |
1.41 |
9 |
1.8 |
|
200 |
6 |
30 |
0.10 |
22 |
0.6 |
6.00 |
1.38 |
12.5 |
1.8 |
|
260 |
6 |
23 |
0.10 |
17 |
0.6 |
8.00 |
1.42 |
16 |
1.8 |
|
340 |
6 |
18 |
0.10 |
13 |
0.6 |
12.00 |
1.63 |
25 |
1.8 |
|
600 |
6 |
10 |
0.10 |
7 |
0.6 |
17.00 |
1.25 |
25 |
1.8 |
|
1000 |
6 |
6 |
0.10 |
4 |
0.6 |
25.00 |
1.05 |
25 |
1.8 |
|
Model:-JGY-370-1260 |
|||||||||
|
40 |
12 |
150 |
0.06 |
100 |
0.5 |
1.20 |
1.26 |
2.5 |
1.3 |
|
65 |
12 |
90 |
0.06 |
70 |
0.5 |
2.00 |
1.47 |
4 |
1.3 |
|
150 |
12 |
40 |
0.06 |
30 |
0.5 |
4.50 |
1.41 |
9 |
1.3 |
|
200 |
12 |
30 |
0.06 |
22 |
0.5 |
6.00 |
1.38 |
12.5 |
1.3 |
|
260 |
12 |
23 |
0.06 |
17 |
0.5 |
8.00 |
1.42 |
16 |
1.3 |
|
340 |
12 |
18 |
0.06 |
13 |
0.5 |
12.00 |
1.63 |
21 |
1.3 |
|
600 |
12 |
10 |
0.06 |
7 |
0.5 |
17.00 |
1.25 |
35 |
1.3 |
|
1000 |
12 |
6 |
0.06 |
4 |
0.5 |
25.00 |
1.05 |
35 |
1.3 |
|
Model:JGY-370-2460 |
|||||||||
|
40 |
24 |
150 |
0.04 |
100 |
0.2 |
1.20 |
1.26 |
2.5 |
0.6 |
|
65 |
24 |
90 |
0.04 |
70 |
0.2 |
2.00 |
1.47 |
4 |
0.6 |
|
150 |
24 |
40 |
0.04 |
30 |
0.2 |
4.50 |
1.41 |
9 |
0.6 |
|
200 |
24 |
30 |
0.04 |
22 |
0.2 |
6.00 |
1.38 |
12.5 |
0.6 |
|
260 |
24 |
23 |
0.04 |
17 |
0.2 |
8.00 |
1.42 |
16 |
0.6 |
|
340 |
24 |
18 |
0.04 |
13 |
0.2 |
12.00 |
1.63 |
21 |
0.6 |
|
600 |
24 |
10 |
0.04 |
7 |
0.2 |
17.00 |
1.25 |
35 |
0.6 |
|
1000 |
24 |
6 |
0.04 |
4 |
0.2 |
25.00 |
1.05 |
35 |
0.6 |
|
Model:JGY-370-1285 |
|||||||||
|
40 |
12 |
210 |
0.08 |
160 |
0.6 |
1.70 |
2.85 |
6.4 |
3.6 |
|
65 |
12 |
130 |
0.08 |
100 |
0.6 |
2.60 |
2.72 |
10 |
3.6 |
|
150 |
12 |
55 |
0.08 |
40 |
0.6 |
6.00 |
2.51 |
24 |
3.6 |
|
200 |
12 |
40 |
0.08 |
30 |
0.6 |
8.00 |
2.51 |
25 |
3.6 |
|
260 |
12 |
32 |
0.08 |
24 |
0.6 |
10.00 |
2.51 |
25 |
3.6 |
|
340 |
12 |
25 |
0.08 |
20 |
0.6 |
13.00 |
2.72 |
25 |
3.6 |
|
600 |
12 |
14 |
0.08 |
10 |
0.6 |
24.00 |
2.51 |
25 |
3.6 |
|
1000 |
12 |
8 |
0.08 |
6 |
0.6 |
25.00 |
1.57 |
25 |
3.6 |
|
Engineer's recommendation: Recommended load not to exceed 25kg.CM |
|||||||||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| RF-370CA-22170 | 3-6V | 6.0V | 6000 | 0.041 | 2.37 | 5263 | 0.273 | 1.18 | 186 | 1.82 |
| RF-370CA-12560 | 8-12V | 12.0V | 3700 | 0.012 | 1.96 | 3030 | 0.066 | 0.60 | 130 | 0.37 |
| RF-370CA-15370 | 8-12V | 12.0V | 5600 | 0.020 | 2.14 | 4876 | 0.123 | 1.03 | 176 | 0.85 |
|
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm |
||||||||||
Notes:
1.Overall Gearbox Motor Body Length:78.8mm
2.Gear Motor Output Shaft Length:13.5±0.3mm Or free customization
3.Gear Motor Output Shaft Diameter:5mm
4.Single Motor Diameter:24.4mm Max
5.Fixed Aperture:3mm
6.Step Height: about 1.5mm
7.Distance between two fixed aperture:18±0.05mm
