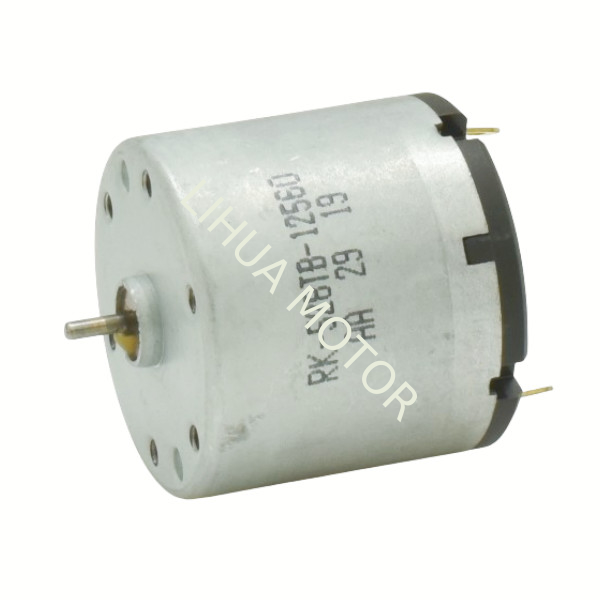

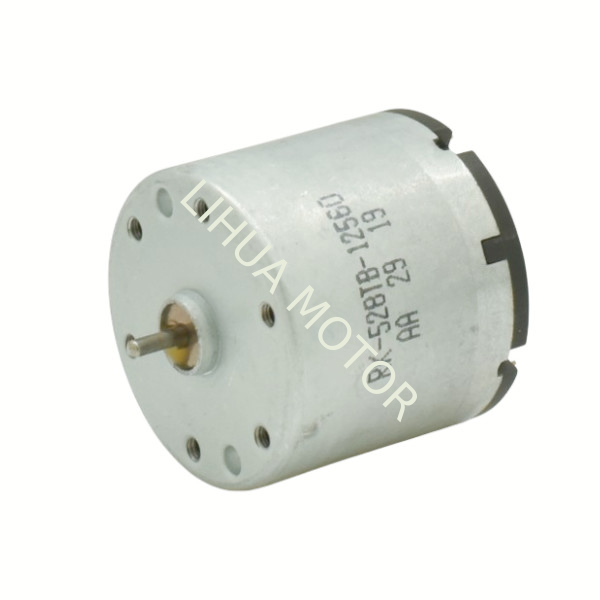

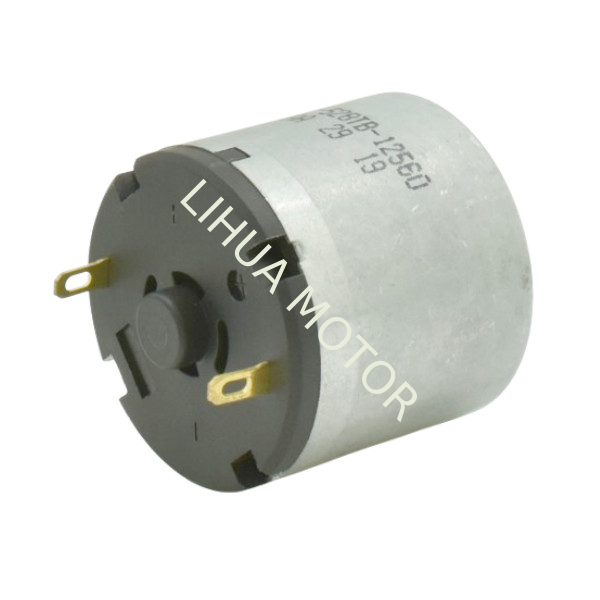

Micro 528 Motor 3000Rpm High Torque Electric Motor For DC Linear Actuator

Micro 528 Motor 3000Rpm Motor High Torque Electric Motor For DC Linear Actuator

Model: RF-528TB-14670A

Rated Volt:12.0V

No-Load Current:15mA

No-Load Speed:2250±112 r/min

Output shaft: 2MM

Shaft length:5.5±0.3mm

Screw Hole Size: 2.6*0.45MM

Weight: 80 g

Height:30.1 MM (excluding front shaft and rear bearing housings)

Motor outer diameter:33 MM Max

Custom Items:Outshaft Length; Lead Wire; Connector;Speed; Voltage; Torque; Power

Application:ATM/ Automatic vending machine/Copy machine/Paper money counter/Linear Actuator

Product Note: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

Micro 528 Motor 3000Rpm Motor High Torque Electric Motor Dimension

Application of Motors in DC Linear Actuator Products

In DC Linear Actuator products, the motor serves as the core driving component, and its performance directly determines the efficiency, precision, and reliability of the actuator. Below is an introduction to the application of the RS-540SATG-15390, RF-380SAN-14260, and RK-528-14670 motors in DC Linear Actuators:

1. RS-540SATG-15390 Motor

• Voltage: 12V

• No-load Speed: 1900±100 RPM

• Load Torque: 100g-cm, Load Speed: 1550±10% RPM

• Stall Torque: ≥400g-cm

Application Features:
The RS-540SATG-15390 motor features high load torque and stall torque, making it suitable for linear actuator applications requiring significant thrust. Its stable speed and low load current (≤280mA) ensure excellent performance during prolonged operation, making it ideal for industrial automation, medical equipment, and household appliances.

2. RF-380SAN-14260 Motor

• Voltage: 12V

• No-load Speed: 4400±7% RPM

• Load Torque: 50g-cm, Load Speed: 3600±8% RPM

• Stall Current: 1.0A-1.2A

Application Features:
The RF-380SAN-14260 motor is known for its high speed and low no-load current (≤40mA), making it suitable for linear actuator applications requiring rapid response. Its high-speed design excels in precision control and compact devices, such as laboratory instruments, automated valve control, and small robots.

3. RK-528-14670 Motor

• Voltage: 12V

• No-load Speed: 2200±5% RPM

• No-load Current: ≤13mA

Application Features:
The RK-528-14670 motor, with its ultra-low no-load current and stable speed, is suitable for applications with high energy efficiency requirements. Its high-efficiency design makes it perform exceptionally well in battery-powered devices or linear actuators requiring long-term operation, such as smart home devices, security systems, and portable medical equipment.

Customization Support

As Lihua Motor, we understand the diverse performance requirements of motors in different application scenarios. Therefore, we offer comprehensive customization services, including but not limited to the following aspects:

• Voltage Customization: Supports multiple voltage specifications to meet the power requirements of different devices.

• Speed Customization: Adjusts motor speed according to customer needs, optimizing the actuator's response speed and operational efficiency.

• Torque Customization: Provides motors with different torque ranges to ensure stable operation under various load conditions.

• Current Customization: Optimizes motor current to reduce energy consumption and extend device lifespan.

• Output Shaft Length Customization: Offers output shafts of different lengths based on customer installation requirements, facilitating integration.
