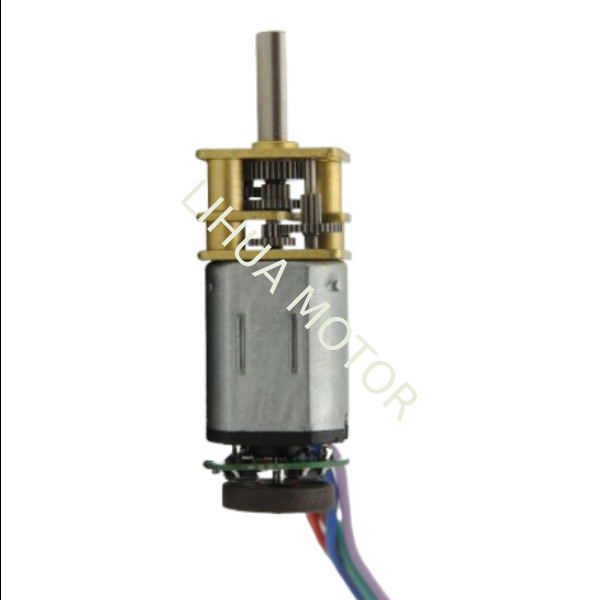

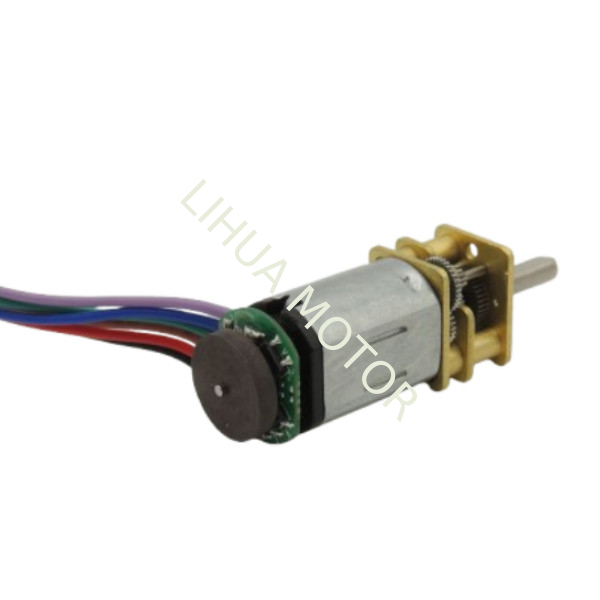

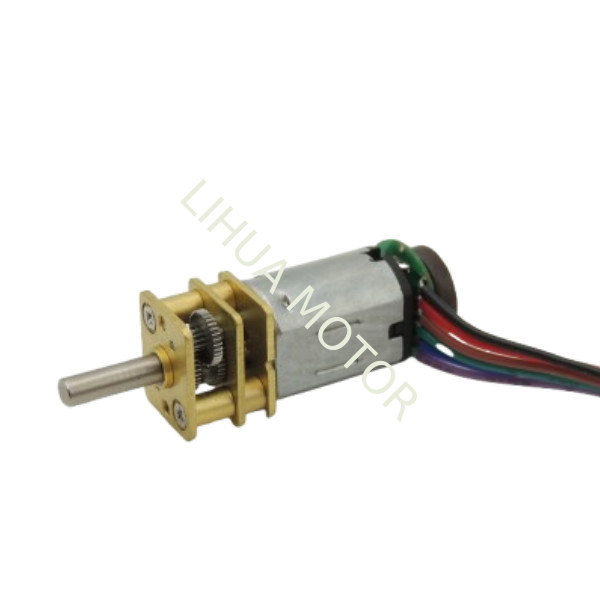

GA12 N20 Motor Micro DC Motor With Encoder Small Motor / Speed Control Gearbox Motor
-
Highlight
GA12 N20 Motor
,GA12 Micro DC Motor
,N20 Micro DC Motor
-
ModelGA12YN20-1000
-
MaterialCopper ,metal ,plastic
-
Custom ServiceCan Accept Custom :parameter, Shaft Length, Rotio
-
Ratio10:1 / 20:1 / 30:1/ 50:1/ 100:1 / 150:1 / 210:1 / 298:1 / 380:1 / 1000:1
-
Gearbox Length10mm Or Custom As Your Need
-
CommutationBrush Motor
-
ConstructionPermanent Magnet
-
ConnectorJST-ZHR-6/Custom
-
Place of OriginGongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001,CE,RoHs,Reach,SGS
-
Model NumberGA12YN20/GA12-N20
-
Document
-
Minimum Order Quantity3000pcs
-
PriceNegotiation
-
Packaging DetailsFoam Box
-
Delivery Time40-45days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union,MoneyGram
-
Supply Ability5000pcs/day
GA12 N20 Motor Micro DC Motor With Encoder Small Motor / Speed Control Gearbox Motor
GA12 N20 Motor Micro Dc Motor With Encoder Small Motor With Speed Control Gearbox Motor
N20 geared motors with encoder are mainly composed of a mini N20 motor body, a reduction mechanism and an encoder.N20 geared motors usually use brushed motors or brushless motors, of which brushless motors have a higher efficiency and a longer lifespan.
Encoders, on the other hand, are classified into Hall encoders and photoelectric encoders, which differ in accuracy and cost.
GA12 N20 Motor Micro Dc Motor With Encoder Motor Dimension
GA12 N20 Motor Micro Dc Motor With Encoder Small Motor Parameters :
|
MODEL |
Volt |
No-load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Speed |
Current |
Speed |
Current |
Torque |
Power |
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
kg.cm |
W |
Kg.cm |
A |
||
|
GA12YN20-1000EN(LP) |
3 |
6.5 |
0.02 |
5 |
0.05 |
0.6 |
0.03 |
2.4 |
0.18 |
|
GA12YN20-1000EN(MP) |
3 |
11 |
0.04 |
9 |
0.12 |
0.9 |
0.08 |
3.6 |
0.45 |
|
GA12YN20-1000EN(HP) |
3 |
15 |
0.06 |
11 |
0.2 |
1.1 |
0.12 |
4.4 |
0.85 |
|
GA12YN20-1000EN(LP) |
6 |
13 |
0.03 |
10 |
0.13 |
1.2 |
0.12 |
4.8 |
0.35 |
|
GA12YN20-1000EN(MP) |
6 |
22 |
0.07 |
16.5 |
0.13 |
1.8 |
0.3 |
/ |
0.9 |
|
GA12YN20-1000EN(HP) |
6 |
30 |
0.1 |
22.5 |
0.25 |
2.2 |
0.5 |
/ |
1.7 |
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it happens to block the rotation, it may cause the internal gears to be damaged.
Mini N20 Motor Gearbox DC Encoder Parameters:
*Remarks:The size of the output shaft can be machined into various irregular shapes on request.
Applications of N20 Micro DC Gear Motors
With the rapid advancement of technology, smart appliances have become an integral part of our daily lives. From intelligent robots and robotic vacuum cleaners to dishwashers, juicers, meat grinders, range hoods, garbage disposals, and smart toilets, automated electrical devices are everywhere. At the heart of these devices lies the micro motor, and among them, the N20 micro DC gear motor stands out for its compact size, high efficiency, and stable control, making it widely used in various smart home appliances and automation systems.
Key Features of the N20 Micro DC Gear Motor
✅ Compact Design
-
Dimensions: Just 10×12×15.1mm, ideal for space-constrained applications.
✅ High-Efficiency Gearbox
-
Features metal gears for durability.
-
Offers a wide range of gear ratios (5:1 to 600:1) for optimal torque output.
✅ Wide Voltage Compatibility
-
Operates at 3V–24V, making it suitable for diverse power requirements.
✅ Precision Control
-
Speed range: 5–2000 RPM
-
Torque output: 5–2500 g.cm
-
Ensures smooth and accurate motion for automation applications.
Hall Encoder for Enhanced Precision
The N20 gear motor can be equipped with a Hall encoder for real-time position and speed feedback.
-
3 pulses per motor revolution
-
With a 100:1 gear ratio, the output shaft provides 300 pulses per revolution, ensuring high-precision control for most smart devices.
Typical Applications
The N20 micro DC gear motor is widely used in:
