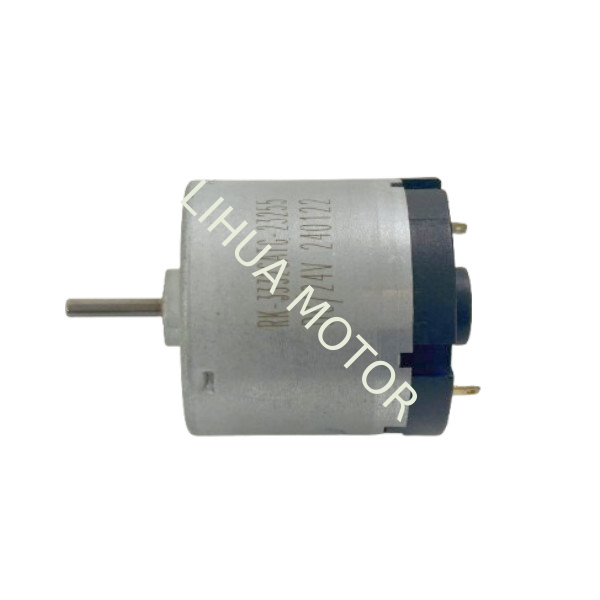

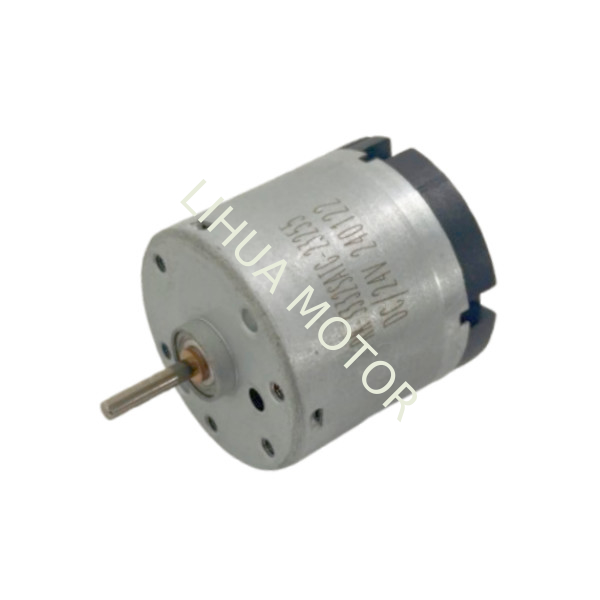

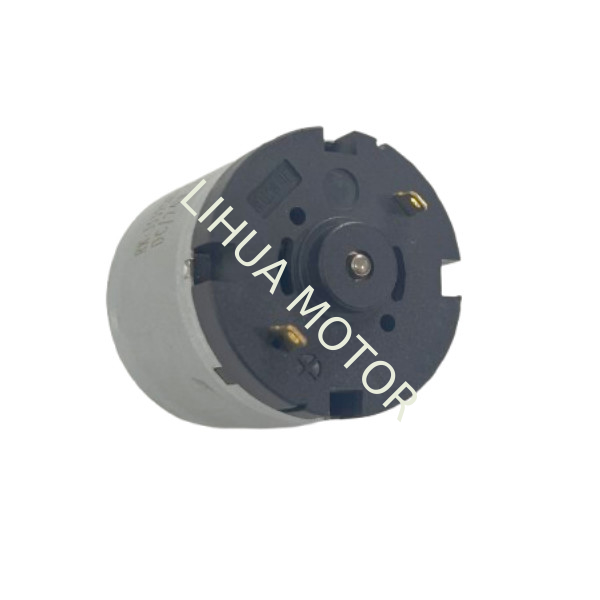

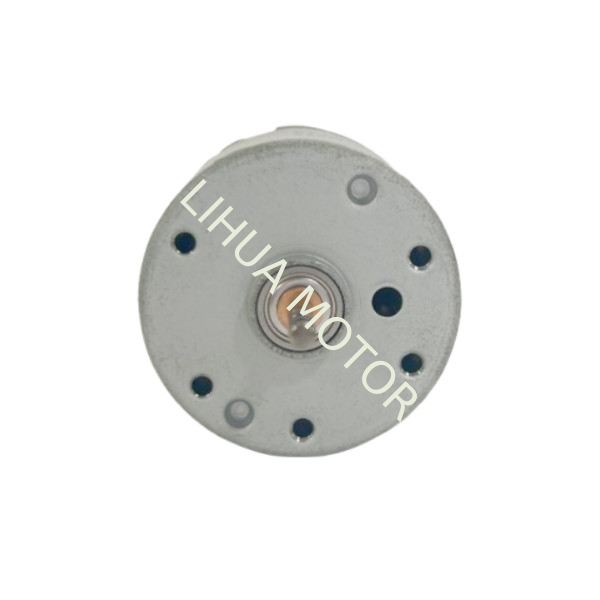

Φ33mm RK-3332 8700RPM 24V Brushed DC Motor High Torque For Window Sweeping
-
Highlight
24V Brushed DC Motor High Torque
,8700RPM High Torque Brushed DC Motor
-
Motor TypeRK-3332 Carbon Brush Motor
-
Rated Volt24.0V
-
Motor Diameter2.5mm
-
Motor Speed7200rpm-8800rpm
-
Motor Current0.16A Or Custom
-
ODM/ODMAccepted
-
Motor Length15.5±0.5mm Or Custom
-
Stall Torque700g.cm
-
Motor Weight90g
-
NameBrushed DC Electric Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001/Reach/RoHs/SGS/CE
-
Model NumberRK-3332SAGT-23255
-
Minimum Order Quantity1000PCS
-
PriceNegotiation
-
Packaging DetailsCarton
-
Delivery Time30-45Days
-
Payment TermsD/A,L/C,D/P,T/T,Western Union,MoneyGram
-
Supply Ability20000PCS/Day
Φ33mm RK-3332 8700RPM 24V Brushed DC Motor High Torque For Window Sweeping
Φ33mm RK-3332 8700RPM 24V Brushed DC Motor High Torque Motor For Window Sweeping
RK-3332 24v DC Motor Specifications / Motor Technical Parameter
Motor Rated Volt:24V
Operating Voltag Range:20v-24v
Rotation:CW /CCW
Operating Temperaure:-20℃ -+70℃
Storage Temperature Range:+30℃ -+80℃
Rated Load Speed:8100±810 r/min
Rated Load Current:550mA
No-laod Speed:160mA
Stall Torque:700g.cm
Starting Voltage:2.5V
Insulation Resistance:10 MΩ
Starting Current:4500mA max (12V)
Weight:89g
Mechanical Noise:60dB max
Maximum Axial Load:20Kgf MAX
This high-performance motor combines advanced materials and precision engineering to deliver reliable operation across various applications, offering exceptional power-to-weight ratio and operational flexibility.
RK3332 Micro Motors Electric Carbon Brushed Dimension/Drawing
Motor case diameter: 33±0.3 mm
Motor case length: 32.1±0.3 mm
Motor case shape: Round motor housing
Brush type: Long life time carbon brushed
Motor type: Single brush permanent magnet dc electric motor
Driveshaft shape: D, O, knurling, screw thread, Customization
Bearing type: bushing/ball bearing
Rotation:CW /CCW
Motor Body Size:33mm*32mm
Length motor aixs : L±0.5mm (L can custom)
3332 motor materials: Full precision dc motor
Construction: Permanent Magnet /Carbon Brushed PM DC Motor
Modern Electric Window Cleaner Drive Motor Technology Analysis
1. Comparison of Main Motor Types
| Motor Type | Key Advantages | Limitations | Typical Applications |
|---|---|---|---|
| Brushed DC Motor | High starting torque, low cost | Noisy (>65dB), short lifespan (~500 hours) | Entry-level home cleaners |
| AC Motor | High efficiency, stable | Large size, heavy weight | Industrial-grade equipment |
| Brushless DC Motor | High efficiency, quiet (<50dB), long lifespan (>2000 hours) | Higher cost | Mid/high-end smart robots |
2. Lihua Motor's Innovative Solution: RK-3332 High-Performance Motor
To address traditional DC motor pain points, our RK-3332 brushless motor delivers breakthrough performance:
1. Power & Noise Balance
-
97mNm high torque output (24V rated voltage) for heavy-duty cleaning heads
-
Noise ≤60dB (1m distance), 30% quieter than brushed motors
-
300+ hour lifespan (30min work/10min pause cycle)
2. Environmental Adaptability
-
Wide temperature range: -20℃~+70℃ for extreme climates
-
Moisture resistance: IP54 rating against cleaner corrosion
3. Smart Control Compatibility
-
PWM speed control for pressure sensor integration
-
Built-in overheating protection
3. Selection Guide
-
Home models: RK-3332 + planetary gearbox (50:1) for cost-performance balance
-
Commercial models: Dual RK-3332 parallel drive for large windows
-
Magnetic designs: Custom worm gearbox for auto-lock safety
4. Extended Technical Services
✔ Free load analysis: Torque calculations based on cleaner weight/window slope
✔ 3D-printed housing adaptation: For unconventional installations
✔ EMC optimization: Minimizes WiFi/Bluetooth interference
[Download RK-3332 Test Report] [Consult Climate Adaptation Solutions]
Note: All data based on standard testing (25±5℃, 40-70%RH). Real-world performance varies with glass surface friction.
