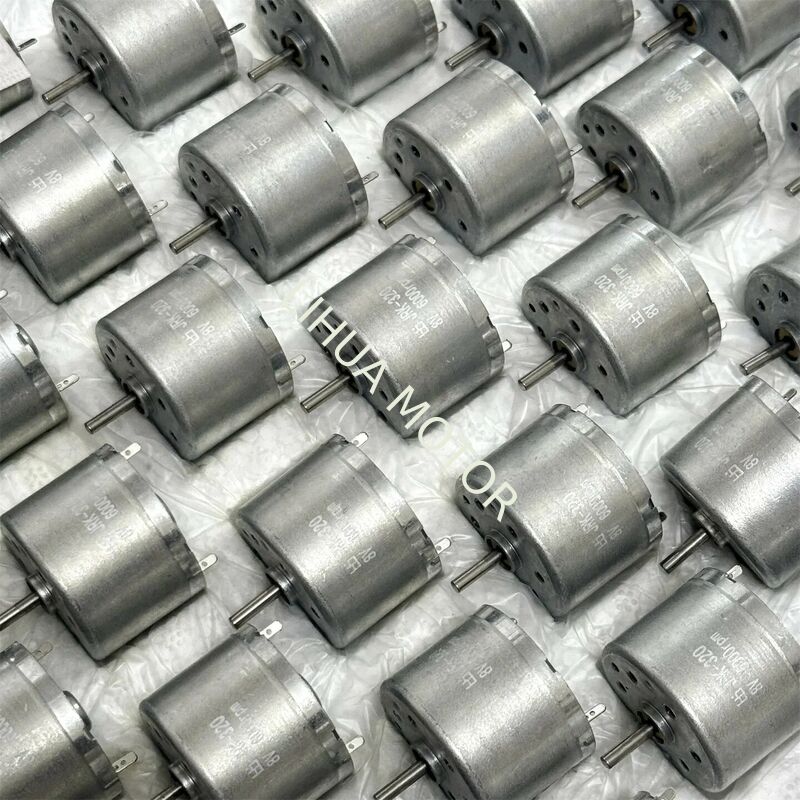

24mm 6V DC Micro Motor RK-320LSA For Household Appliance Automotive Pump
-
Motor TypeRK-320LSA
-
Shaft Diameter1.5mm
-
Motor Body Size24.4mm*20.1mm
-
Rated Voltage3V
-
Shaft TypeRound/D Shaft/Knurling/Screw Thread
-
Operating Temperature-20°C To 80°C
-
Noise Level＜45 DB
-
No-load Speed3000RPM/6000RPM/1200RPM/Or As You Request
-
ApplicationsVCD Engine Part,Electric Valve, Hand Charger And Mini Aerosol Dispenser Devices
-
Weight25g
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/ HCS Motors
-
CertificationISO9001/Reach/RoHs/SGS/CE
-
Model NumberRK-320LSA
-
Minimum Order Quantity3000pcs
-
PriceNegotiation
-
Packaging DetailsFoam Inner /Carbon Outer
-
Delivery Time30-45Days
-
Payment TermsT/T,L/C
-
Supply Ability12000pcs/Day
24mm 6V DC Micro Motor RK-320LSA For Household Appliance Automotive Pump
24mm 6V DC Micro Motor RK-320LSA For Household Appliance Automotive Pump
The RK-320LSA 24mm DC micro motor is available in precious metal brush (RF) or carbon brush (RK) configurations, designed for demanding applications including printers, copiers, CD players, and medical devices. This compact motor delivers high-speed performance with carbon brush durability, making it ideal for punch machines, printers, and various precision applications.
Key Features
- Compact dimensions: 24mm diameter × 21.0mm body, only 20g weight
- High-speed performance: 6843-6861 RPM
- Dual voltage options: 6V or 24V operation
- Carbon brush design for enhanced durability
- Standard φ2.0mm shaft with customizable length
- Mounting: 2-M2×0.4 on 11.5mm spacing
- High output: Up to 1.45W at maximum efficiency
- Counter-clockwise rotation
- OEM/ODM customization supported
Specifications
Mechanical Specifications
| Parameter | Value |
|---|---|
| Body Diameter | φ24.4 mm |
| Body Length | 21.0 mm |
| Shaft Diameter | φ2.0 mm |
| Shaft Length | L±0.5 (customizable) |
| Mounting Hole | 2-M2×0.4 |
| Mounting Spacing | 11.5 mm |
| Bolt Circle | φ11.5 mm |
| End Cap Diameter | φ15.0 mm |
| Body Height | 18.3 mm |
| Weight | 20 g (approx) |
| Rotation | CCW |
Electrical Specifications
| Model | Voltage Range | Nominal | No-Load Speed | No-Load Current | Max Eff. Speed | Max Eff. Current | Max Eff. Torque | Max Eff. Output | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|---|
| RK-320LSA-20178A | 4-8V | 6.0V | 6861 r/min | 0.058A | 5882 r/min | 0.348A | 25 g.cm | 1.45W | 179 g.cm | 2.092A |
| RK-320LSA-08755 | 22-26V | 24.0V | 6843 r/min | 0.018A | 1855 r/min | 0.085A | 24 g.cm | 1.26W | 138 g.cm | 0.396A |
