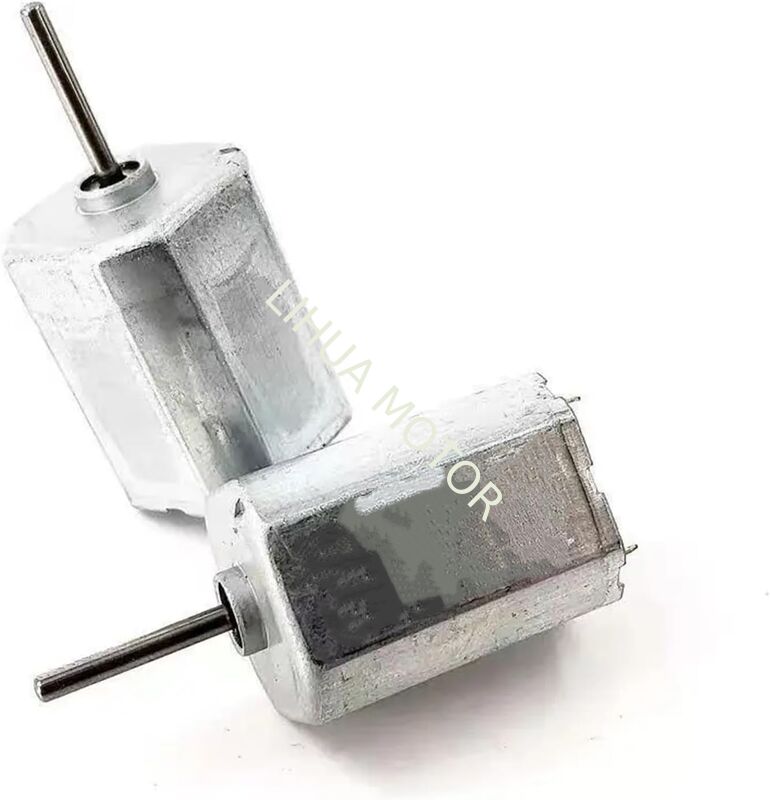

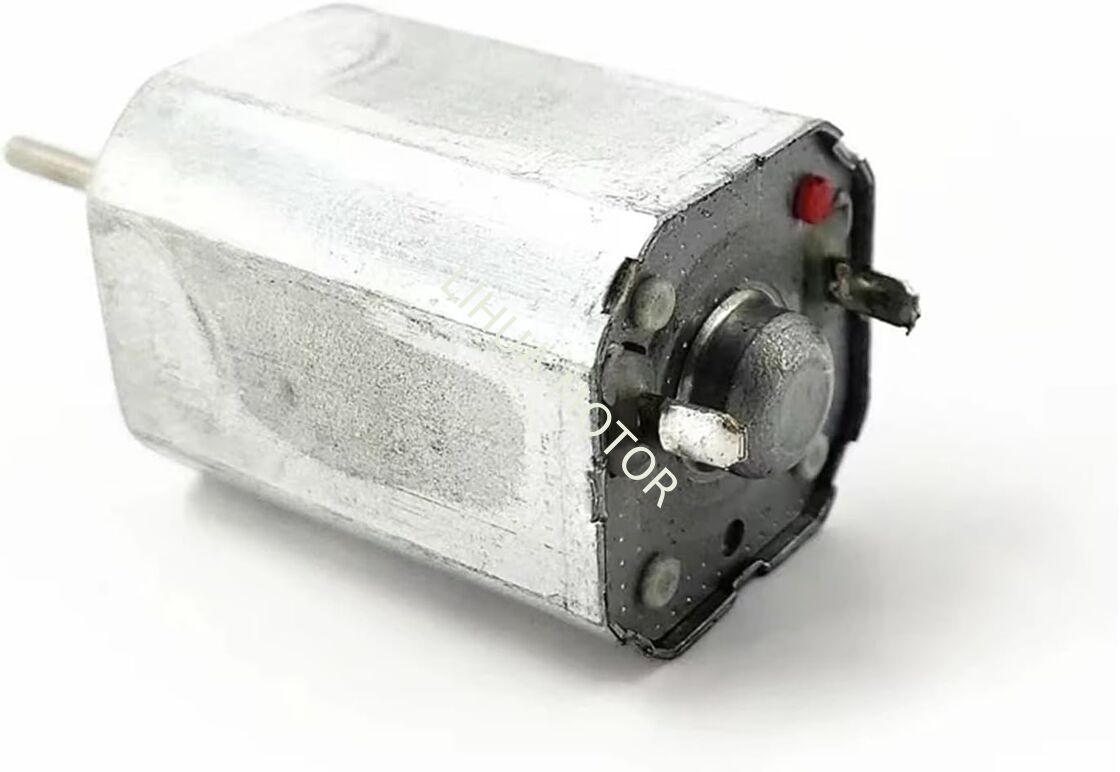

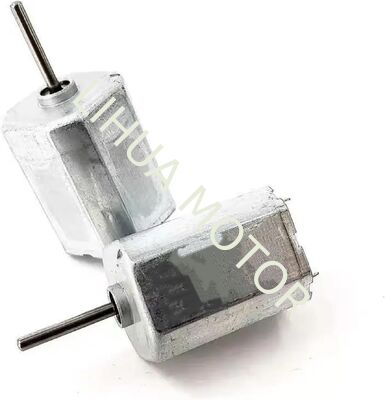

266 Motor SF-266SH-10340 Carbon Brushed Motor For Car HVAC Actuator

The SF-266 (266 Motor SF-266SH-10340) is a compact 12V brushed DC motor primarily designed for use in automotive HVAC systems, specifically as a drive unit for HVAC actuators (air flap actuators / air door actuators).

It is typically integrated into automotive air conditioning control systems and works with a gear reduction mechanism to precisely adjust the position of air distribution flaps (such as blend doors and mode doors), enabling accurate control of cabin temperature and airflow direction.

This motor is not designed for high-speed output. Instead, it is engineered for intermittent operation, low-speed stable performance, and long-cycle durability in automotive control environments.

The SF-266 adopts a standard brushed DC motor architecture, where current reversal is achieved through brushes and a commutator, enabling continuous rotor rotation.

In HVAC actuator systems, the motor is typically combined with a gear reduction assembly:

• The motor provides the primary rotational force
• The gear train reduces speed and increases torque
• The output shaft drives the air flap to achieve angular positioning

This configuration makes the motor highly suitable for short-stroke, frequent, and intermittent control applications.

The SF-266 motor is widely used in automotive HVAC actuator systems, including:

• HVAC blend door actuators
• Air distribution flap actuators
• Mode door control systems
• Automotive climate control systems

Its primary function is to precisely control flap position, enabling dynamic adjustment of cabin temperature and airflow direction.

In HVAC actuator design, the SF-266 series motor is typically selected for applications requiring:

• Limited installation space
• Cost-efficient drive solutions
• Intermittent operating cycles (non-continuous duty)
• Basic positioning accuracy rather than high-speed performance

In practical use, it is generally integrated with a gearbox, limit mechanism, and control module to form a complete actuator system.

The SF-266 / 266 Motor SF-266SH-10340 is a compact DC drive motor designed for automotive HVAC actuator systems. Its core value lies in its compact size, 12V system compatibility, and reliable performance under intermittent operating conditions.

It is not a high-speed power motor, but a purpose-built actuator drive unit optimized for automotive air conditioning flap control systems, playing a critical role in vehicle cabin comfort and climate regulation.
