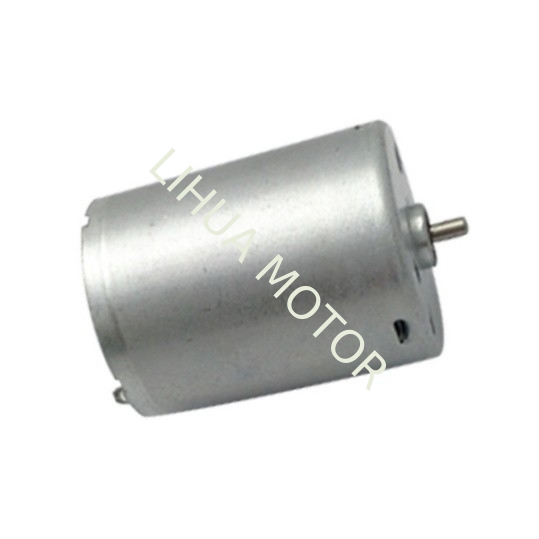

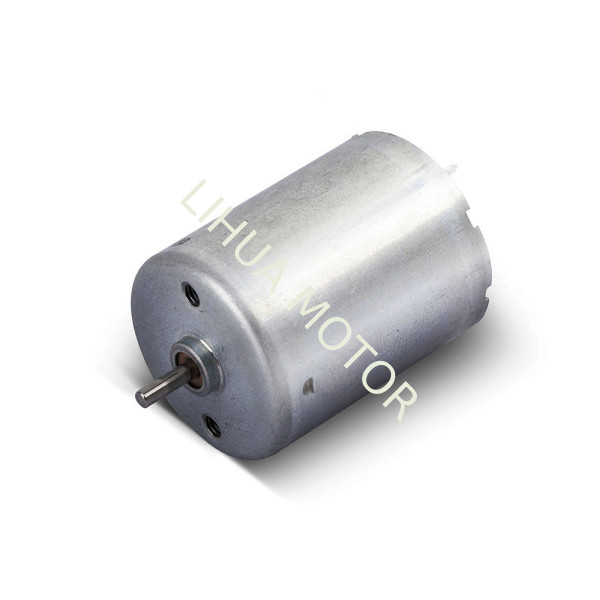

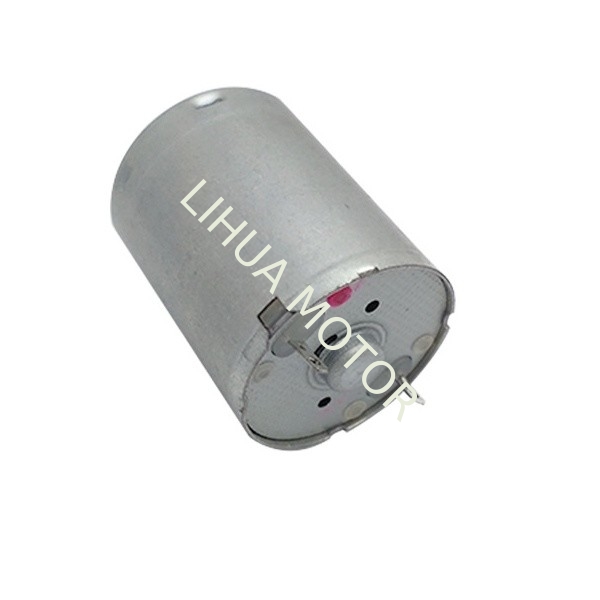

RF-370SA-10760 12 Volt Electric Motor DC Motor 2000rpm-2700rpm Low Speed DC Motor
-
Highlight
12 Volt Electric Motor DC Motor
,Electric Motor DC Motor 2000rpm
,2700rpm Low Speed DC Motor
-
Motor TypeRK-370SA-10760 Motor
-
DirectionCW/CCW
-
OEM/OEMAvailable
-
Shaft TypeSplined
-
Screw Hole Size3mm*0.5
-
Screw Hole Distance17mm±0.05
-
Motor Diameter24.4mm Max
-
Motor Length30.8±0.1mm(Without Shaft Length)
-
NameMini DC Motor
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationIATF16949/ISO9001/Reach/RoHs/SGS
-
Model NumberRK-370SA-10760
-
Document
-
Minimum Order Quantity2000PCS
-
PriceNegotiation
-
Packaging DetailsFoam Carton
-
Delivery Time35-45Days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union
-
Supply Ability10000PCS/Day
RF-370SA-10760 12 Volt Electric Motor DC Motor 2000rpm-2700rpm Low Speed DC Motor
RF-370SA-10760 12 Volt DC Motor Electric Motor DC Motor 2000rpm-2700rpm Low Speed
RK-370 Motor Technical Specifications
-
Premium Quality DC Permanent Magnet Motors
Our RF-370SA-10760 series represents industrial-grade brushed DC electric motors engineered for reliable performance in demanding applications. Available in 24 volt DC electric motor and 12V configurations, these direct current electric motors deliver optimized torque-speed characteristics with superior durability.
Key Specifications:
-
Model Range: RK-370SA-10760 (24V) / RK-370CA-10760 (12V)
-
Voltage Options: 9V/12V/24V DC (3-24V operational range)
-
Speed Range: 2,000-4,400 RPM (model dependent)
-
Compact Dimensions: Ø24.4mm × 30.8mm (L)
-
Shaft Configurations:
-
Standard: 2.0mm diameter × 5mm length
-
Custom: Knurled shafts available (Ø2.02-2.05mm)
-
-
Weight: 50g (lightweight yet robust construction)
-
12 Volt DC Motor Electric Motor DC Motor 370 Mini Motor Dimension
24mm DC Motor Electric Motor DC Motor 370 Mini Motor TN Curve
24mm 370 Mini Motor Technical Differentiation
1. 24 Volt DC Electric Motor Performance
-
RK-370SA-10760: 4,400 RPM @ ≤18mA (no-load)
-
RK-370SA-10760A: Precision knurled shaft variant (±0.02mm tolerance)
2. 12V DC Electric Engine Variants
-
RK-370SA-10760B: 2,200 RPM @ ≤15mA
-
RK-370CA-10760: 2,750 RPM @ ≤12mA (enhanced efficiency)
Core Technologies:
✔ Permanent Magnet Stator: Consistent torque output
✔ Precision Carbon Brushes: 500+ hour lifespan
✔ Class B Insulation: 85°C thermal tolerance
Performance Comparison
| Model | Voltage | No-Load RPM | Current Draw | Key Feature |
|---|---|---|---|---|
| RK-370SA-10760 | 24V | 4,400 | ≤18mA | Standard 24V |
| RK-370SA-10760A | 24V | 4,400±220 | ≤18mA | Knurled shaft |
| RK-370SA-10760B | 12V | 2,200 | ≤15mA | Low-current design |
| RK-370CA-10760 | 12V | 2,750 | ≤12mA | High-efficiency |
Lihua Motor /HCS Motor Customization Capabilities
As a specialist in DC permanent magnet motors, we offer:
-
Voltage-Specific Optimization: 3V-24V rewinding
-
Shaft Modifications: D-cut, flatted, or extended lengths
-
Bearing Upgrades: Oil-impregnated or ball bearing options
-
IP Rating Enhancements: Dust/waterproof sealing
Why Our Electric Motors?
-
20+ Years in micro motor manufacturing
-
1,200+ Custom Projects delivered globally
-
ISO 9001 & RoHS & Reach &CE &IATF16949 & ISO9001 certified production
24mm Motor Electric DC Industrial Applications
These direct current electric motors excel in:
Automation Systems
-
Conveyor belt drives
-
Packaging equipment feeders
Commercial Equipment
-
Vending machine mechanisms
-
ATM bill validator modules
Medical Devices
-
Surgical tool actuators
-
Dental equipment drives
Consumer Electronics
-
Professional camera gimbals
-
High-end audio turntables
Ordering & Support
MOQ: 2000 units (samples available)
Lead Time: 30 working days (standard)
Documentation:
-
Free 3D CAD files
-
EMI/EMC test reports
Our products are sold all over the world, you can rest assured.
