Mini dc Motor 3V 6600RPM RC-260 Hobby Motor With Gear Carbon Brush Type dc Motor

Mini dc Motor 3V 6600RPM RC-260 Hobby Motor With Gear Carbon Brush Type dc Motor

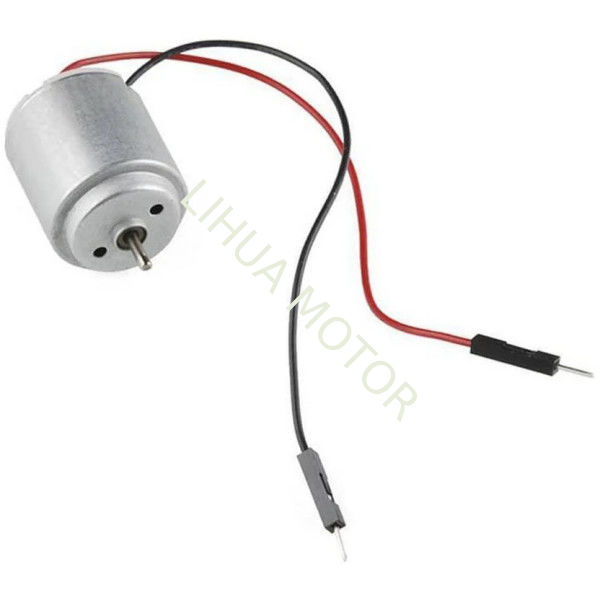

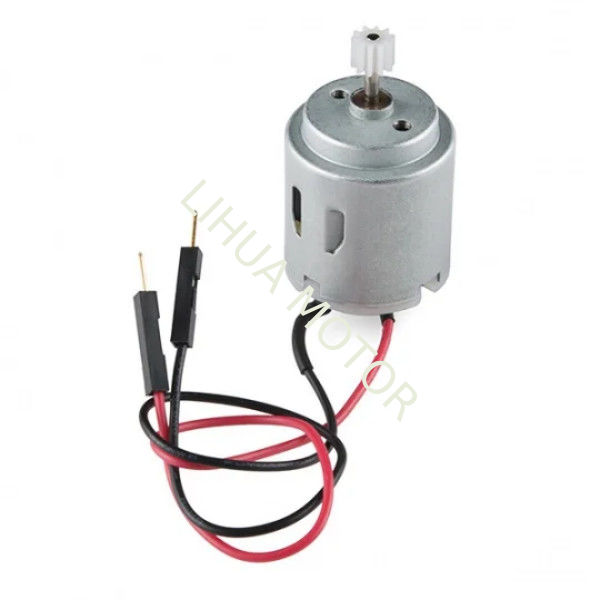

RC-260 Hobby Motor compact metal DC motor features a 6mm-diameter 10-tooth gearwheel integrated with its shaft, designed for low-resistance power transmission in DIY applications like miniature fans or simple mechanical projects, operating efficiently within a 1-3V DC range (tolerating up to 12V max) while delivering a no-load rotational speed of 6600±10% RPM at 1V/110mA with consistent clockwise shaft movement.And the 260 motor comes with BLS cables.

RC260 Mini Custom Motor Technical Specifications

Motor Type: RC-260 DC Motor with gear

Rated Voltage: 3.0VDC
Voltage : 1.0~ 3.0V DC
Rotation : clockwise from the motor shaft (CW)
Store Temperature range : -5°C~ +40°C, store humidity: 10%~90%  (suggest not store more than 1 year)
No load current : 110mA max
No load speed : 6600+10%rpm
No load start voltage : 1.0V max
Locked-rotor current : 0.8A

Insulation impodance : 210 MΩ (min)
Net weight : about 28g

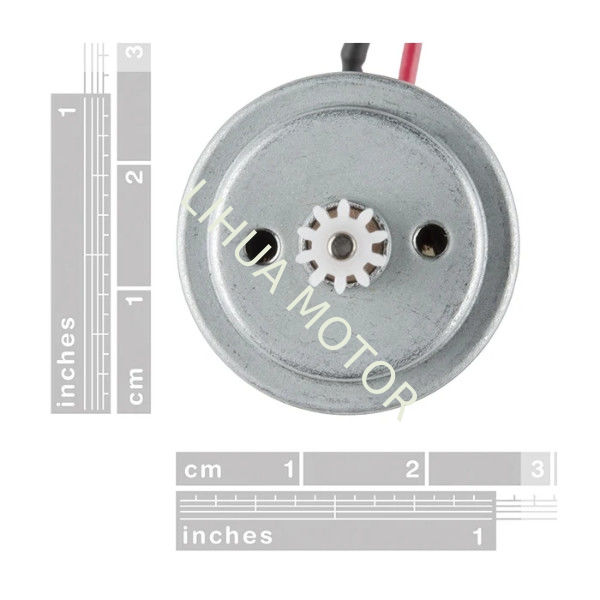

24mm RC-260SA Round Brushed DC Electric Motor Dimension

R260 Micro Motor Outline Information Notes:

• Shaft Diameter: 2.0mm.

• Shaft Length: 6mm.(Or can custom shaft length as you need)

• Motor Body Diameter: 24±0.2mm.

• Motor Body Length: 26.9mm.

• Mounting Hole Pitch: About 11.5mm.

• Mounting Hole Diameter: 2.3mm

Custom Service
1.Motor Direction of rotation can be design (CCW/CW)

2.Out shaft Length (L) can custom

3.Length / Materials of motor cables can be customized

4.Voltage ,Current, speed,torque ,power can custom

5.Gearwheel size can be customized

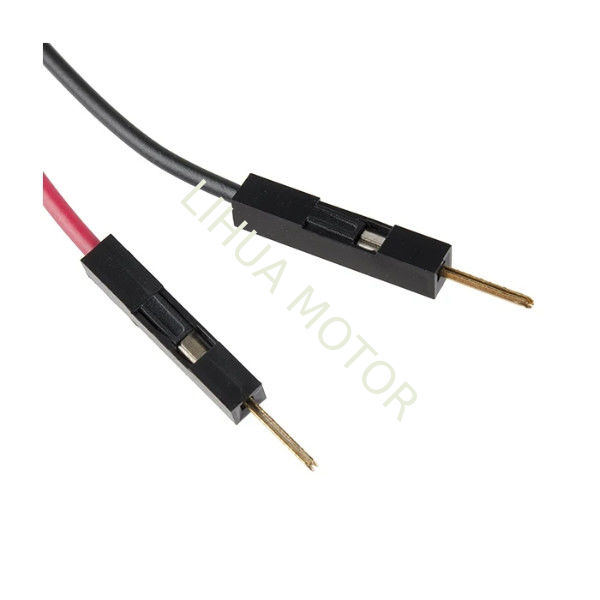

6.Cable length and BLS cables can custom

7.Above RC-260 motor sheet is just reference,model name also can be change as your need.

8.Support  custom motor arrording to drawing you provided

Custom 24mm RC260 High Speed Small DC motor Datasheet

• Rated Voltage: 1.0–24V (Can be custom)
• RC-260SA Motor Size: 26.9×24.4mm(L*D)
• Motor Leads/Wires Length: Can be design as your need
• Brush Series:Long-life carbon brushed motor

As a trusted supplier of small dc gear motor solutions, Lihua Motor manufactures high-quality mini dc motor with gearbox assemblies for industrial and consumer applications. Our small worm gear motor series delivers reliable torque output with customizable speed and voltage options to meet OEM requirements.
