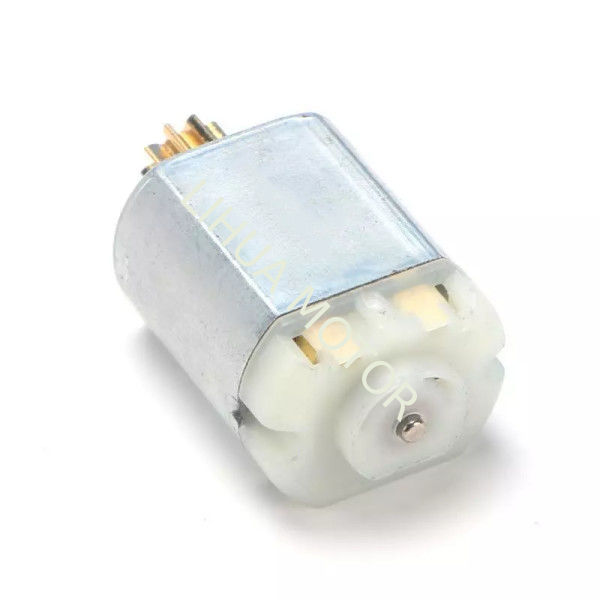

FC-280 Central Door Lock Actuator Motor With Metal Gear Mini DC Electric Motors

FC-280 Central Door Lock Actuator Motor With Metal Gear Mini DC Electric Motors

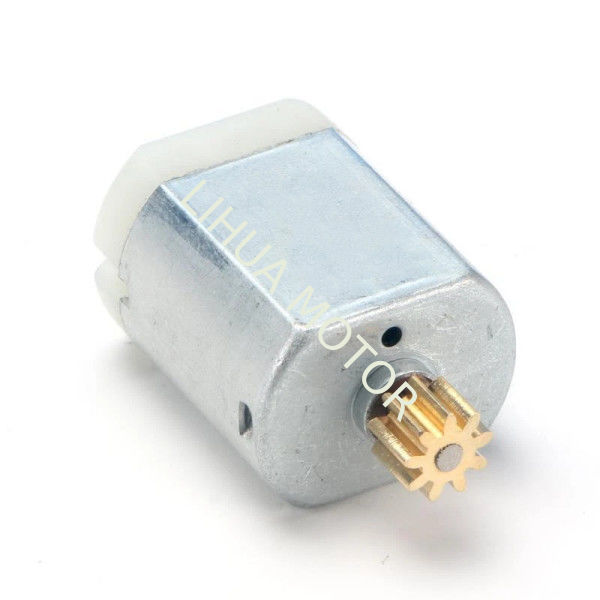

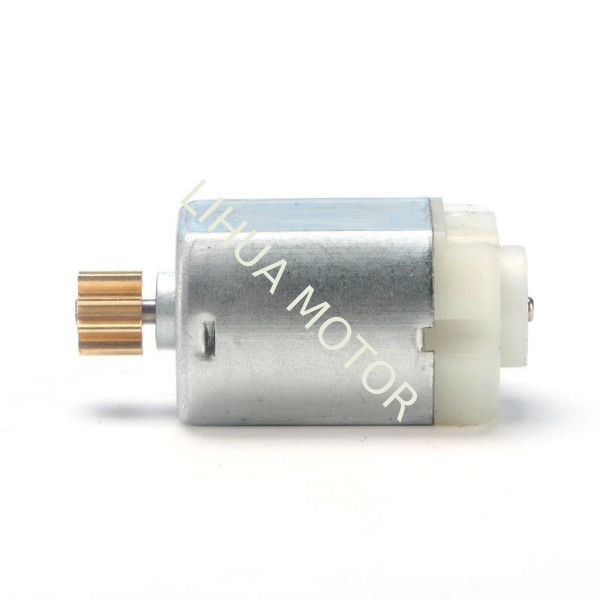

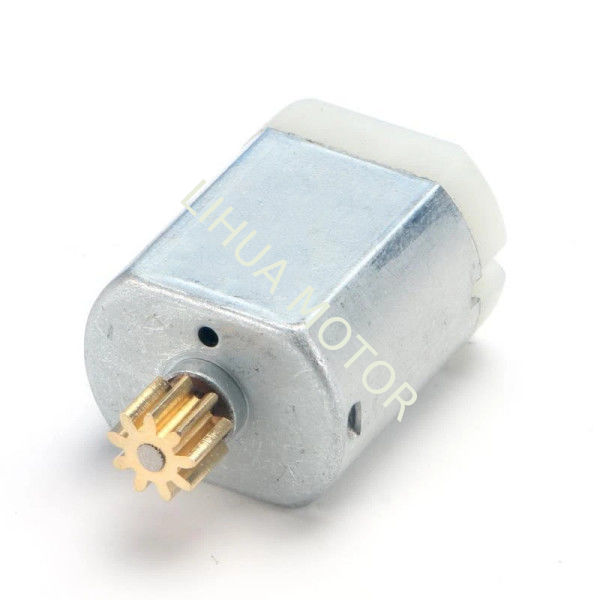

The 12V 24V 280 Mini Motor with 9 teeth metal gear is a compact and versatile DC motor designed for precision applications, particularly in  car door locks and rearview mirror systems. With its metal gear design, this motor delivers high torque, smooth operation, and reliable performance, making it ideal for space-constrained projects.And FC-280 motors are always combined with actuator used in central car door system.

RC-280 Metal Gear Technical Specifications

• Model: FC-280SC-09650

• Motor size: 24mm*18.mm

• Motor Height: 30.5mm.




• Output Shaft Diameter: 2mm.




• Output Shaft Length: 6.8mm (excluding step height)

• Copper gear diameter: 7mm

• Copper gear thickness: 5mm

• Copper gear teeth: 9 Teeth

• Weight: 46g

• Suitable voltage: DC 12V-24V

• No-load speed: 2600RPM-5300RPM




12V 24V  280 Mini Motor With Metal Gear Dimension

Notes:

The motor has a 1mm-2mm difference in some special dimensions, which are normal tolerances. According to the customer's demand, we can control the size more precisely, but even the same motor in the same batch will have a certain tolerance. Please consult our customer service for more information before placing an order.
