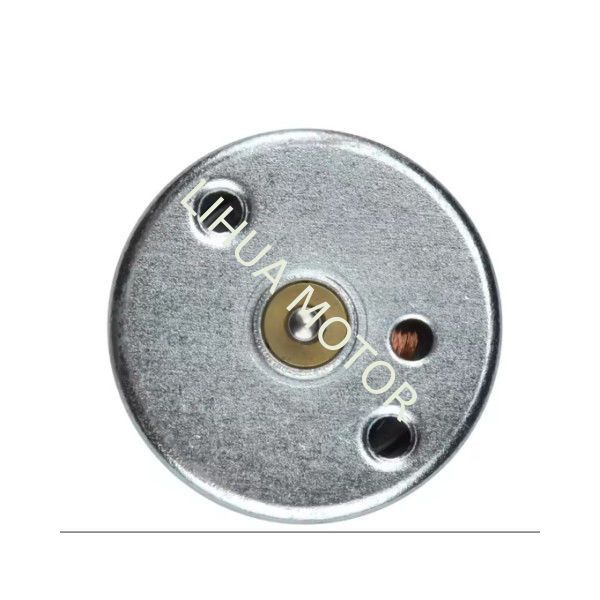

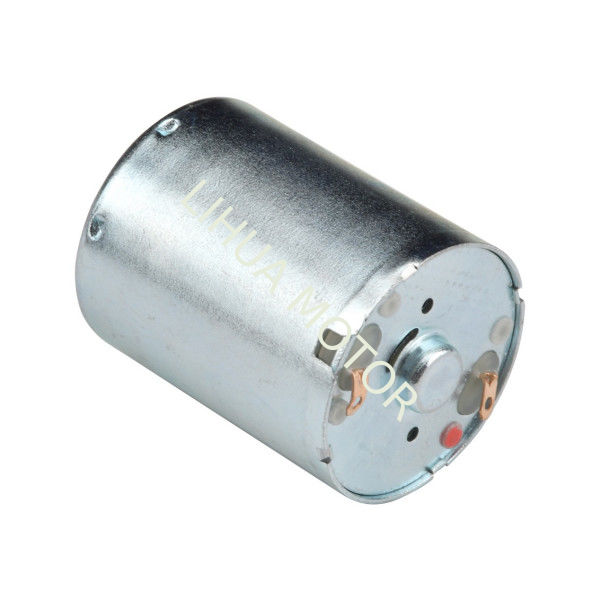

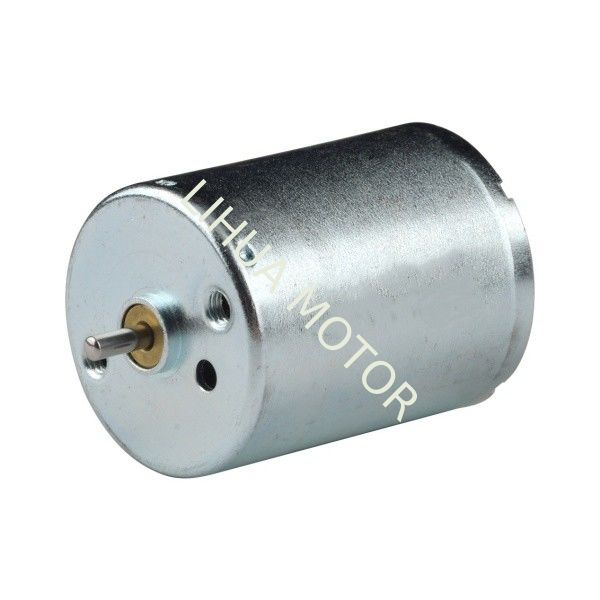

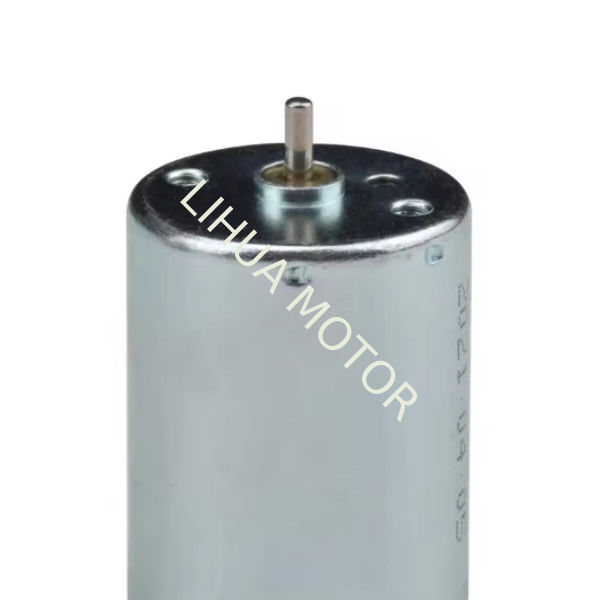

Customized 12V 24.4mm RF-370CB-11670 Motor for Air Conditioning Damper Actuator
-
Motor TypeRF-370CB-11670
-
Rated Volt12V
-
No-load Speed3000rpm±300r/min
-
No Load Current20mA Max
-
Stall Torque110 G-cm (min)
-
Motor Shaft Diameter2mm
-
Shaft Length14.7±0.5mm (L)
-
Motor Size30mm*24.4mm (L*Dia)
-
ApplicationsAuto Car Water Valves/Auto Air-Condition Actuator
-
Motor CustomAccepted
-
Place of OriginDongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationReach/RoHs/IATF16949/ISO9001
-
Model NumberRF-370CB-11670
-
Document
-
Minimum Order Quantity2000PCS
-
Packaging DetailsCarton
-
Delivery Time35-45Day
-
Payment TermsL/C,D/A,D/P,T/T
-
Supply Ability20000PCS/Day
Customized 12V 24.4mm RF-370CB-11670 Motor for Air Conditioning Damper Actuator
Customized 12V 24.4mm RF-370CB-11670 Motor for Air Conditioning Damper Actuator
RF-370CB-11670 12V DC Motor Techincal Parameters:
-
Model: RF-370CB-11670 Motor
-
Motor type: DC Metal Brush Motor
-
Output Shaft Diameter: 2mm
-
Output Shaft Length:14.7±0.5mm (L) Or Custom
-
Motor Body Diameter: 24.4±0.1mm
-
Motor Body Length: 30.8±0.1mm
-
Voltage Range: DC 12V-24V
- Rated Voltage:12V
-
Front Steps Diameter:6.4±0.05mm
-
Front Step Height: 1.5±0.1 mm
-
Diagonal Installation Pitch: 17±0.05mm
-
Mounting Hole Size: 3mm
-
Mounting Holes: 2 Holes
- No-load Speed :3000±150r/min
-
No load Current:20mA
-
Starting Torque/stall torque:110g.cm
-
Test data:
Voltage:12V No-load current≤15mA Speed:3000RPM
Voltage:24V No-load current≤15mA Speed:5000RPM
KINDLY NOTE:ALL MOTOR SPEDIFICATIONS CAN BE CUSTOMIZED BY YOUR NEED!
Air Conditioning Damper Actuator Motor RF-370CB-11670 12V DC Motor Dimension / Size :
.
Basic Specification for RF-370 Motor
-
Output Shaft Diameter: 2mm ±0.002mm
-
Output Shaft Length:14.7±0.5mm (L) Or Can Custom
-
Motor Body Diameter: 24.4±0.1mm
-
Motor Body Length(Without shaft length ): 30.8±0.1mm
-
Front Steps Diameter:6.4±0.05mm
-
Front Step Height: 1.5±0.1 mm
-
Diagonal Installation Pitch: 17±0.05mm
-
Mounting Hole Size: 3mm*0.5
-
Mounting Holes: 2 Holes
- Terminal length and angle can be customized: angle with 90° or 85°or customized
Connecters(Motor Teminal ) types Customized Display
According to customer's various requirements, Lihua Motor/HCS Motors customized and designed the different motor terminal types.
More motor terminals or types waiting for drawing and needs.
|
|
|
| RF-370-11670 With Solid Terminal | RF-370-11670 can connected cables Terminal | RF-370-11670 With Solid Terminal |
Notes:
1. Usable machine screw length 2. 0max. from motor mounting surfacce.
2.Allowable torque for screwing of tapped hole:5. 0kgf-cm max.
3.No remarkable scraches or dents on the surface.
4. Tolerances not otherwise specified decimal:士0. 3mm.
Cases Show For RF-370CB-11670 Motors
Application Scenario
Lihua’s RF-370CB-11670 micro motor, leveraging its high-precision control, low power consumption, and compact design, is specifically developed for automotive HVAC air condition damper actuators. Compatible with mainstream electric air door architectures, this motor enables precise adjustment of air door blade angles to achieve airflow mode switching (face/foot/defrost), zoned temperature control, and fresh/recirculated air functions, enhancing vehicle intelligence and cabin comfort.
Technical Advantages
-
Harsh Environment Adaptation: Validated through -40℃ to 125℃ thermal cycling tests and IP67 protection certification, ensuring stable operation in extreme conditions;
-
Energy Efficiency Optimization: No-load current ≤80mA, load efficiency improved by 18%, meeting automotive low-power requirements;
-
Integrated Solution: Compatible with PWM/LIN communication protocols, enabling seamless integration with actuator control modules and reducing development costs.
Supply Chain Collaboration Achievements
Lihua has established strategic partnerships with multiple global top-tier automotive HVAC system suppliers. As a core driving unit, the RF-370CB-11670 motor has been mass-adopted in HVAC actuator modules for mainstream vehicle models in China. In 2024, Lihua delivered over 3.7 million automotive-grade motors, with this model accounting for more than 40% of total shipments. Its applications indirectly support popular vehicle series from brands such as Geely, Changan, and GAC.
Market Validation
-
Terminal vehicle testing shows a 27% reduction in HVAC air door system failure rates compared to previous generations, with energy efficiency optimized by 12%;
-
Lihua’s production line automation rate has reached 92%, achieving a 99.3% annual order fulfillment rate to meet rapid delivery demands;
-
Modules equipped with this motor have accumulated over 5 million kilometers of road testing with zero critical motor-related failures.
|
|
