41mm brushless DC motor for water pump
,24V BLDC4123 electric motor
,brushless DC motor with warranty
-
Model Type412 BLDC
-
Motor CategoryBLDC Motor
-
Operational Temperature-20°C To +80°C
-
Stator Slots6 Slots
-
Custom MadAccept Custom-Made
-
PricingCompetitive Factory
-
Rated Volt24V
-
Place of OriginGongguan,China
-
Brand NameLihua Motor/HCS Motors
-
CertificationISO9001,CE,RoHs,Reach,CE
-
Model Number4123 BLDC
-
Minimum Order Quantity500PCS
-
Packaging DetailsFoam Box/Plastic Box
-
Delivery Time30-45days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union,MoneyGram
-
Supply Ability50000pcs/day

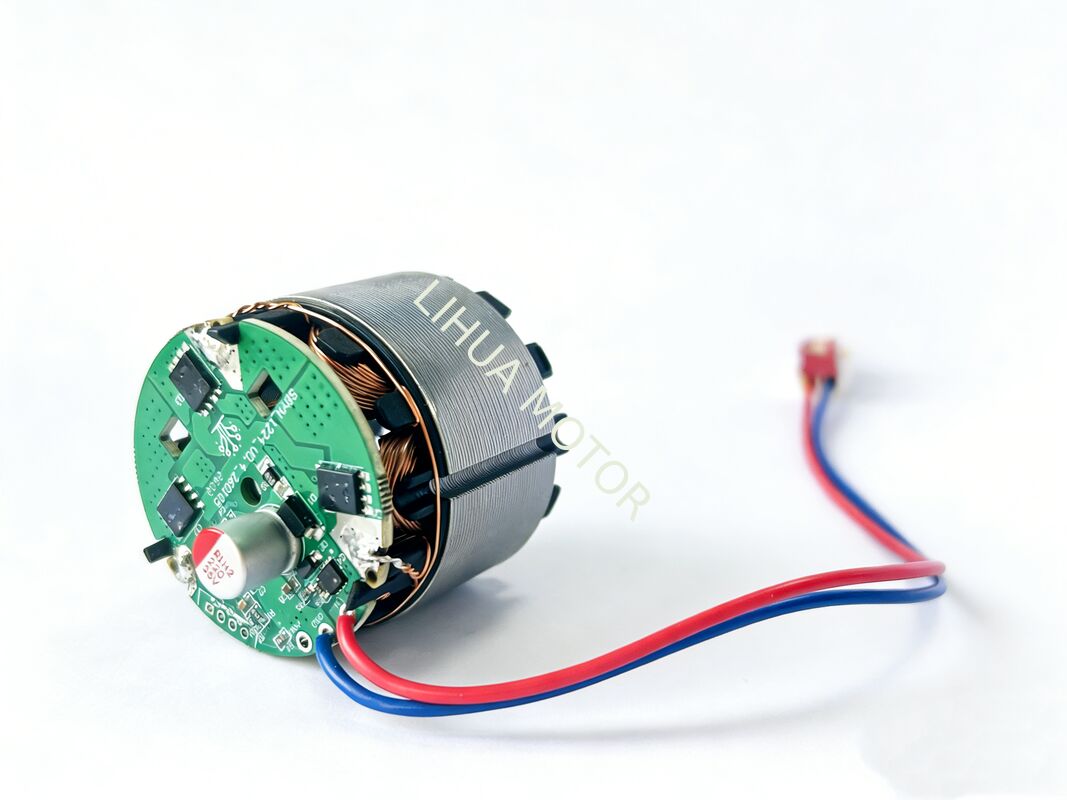

41mm 24V BLDC4123 Brushless DC Motor For Water Pump
41mm 24V BLDC4123 Brushless DC Motor With Drive Board For Water Pump
| - Model Number: 4123 Brushless DC Motor
| - Stator Size : Φ 41 mm ( Can Customized )
| - Rated Voltage: DC 24V (Can Customized )
| - Stator resistance value 1.08–1.12 Ω (at 23–26°C) (Can Customized )
| - Polar difference △≤0.01Ω
| - Stator inductance value:980 ± 30 pH (Can Customized )
| -Stator Slots:6 slots (Can Customized )
| - Commutation: Brushless-PWM drive
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation (CW/CCW) (Can Customized )
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hours
|- Customization Options:Volt,Speed,Torque,Resistance Value,Slots,PWM Brushless drive board

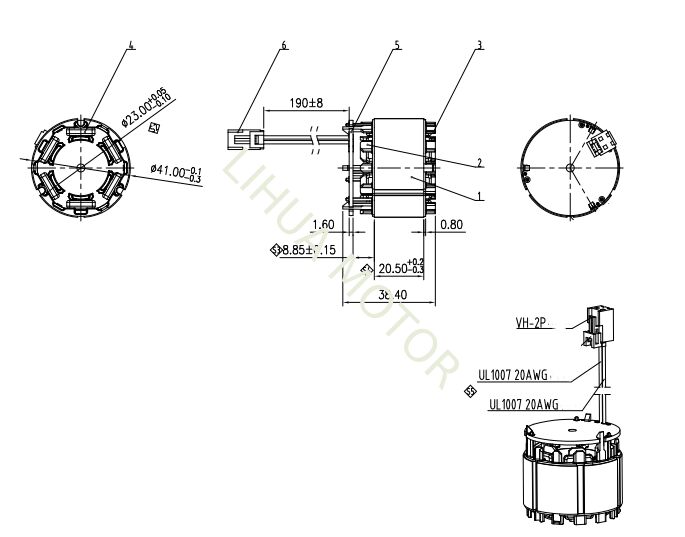

Brushless DC Electric Motor 6 Slots 41 Parameter Datasheet Dimension &2D Drawing
