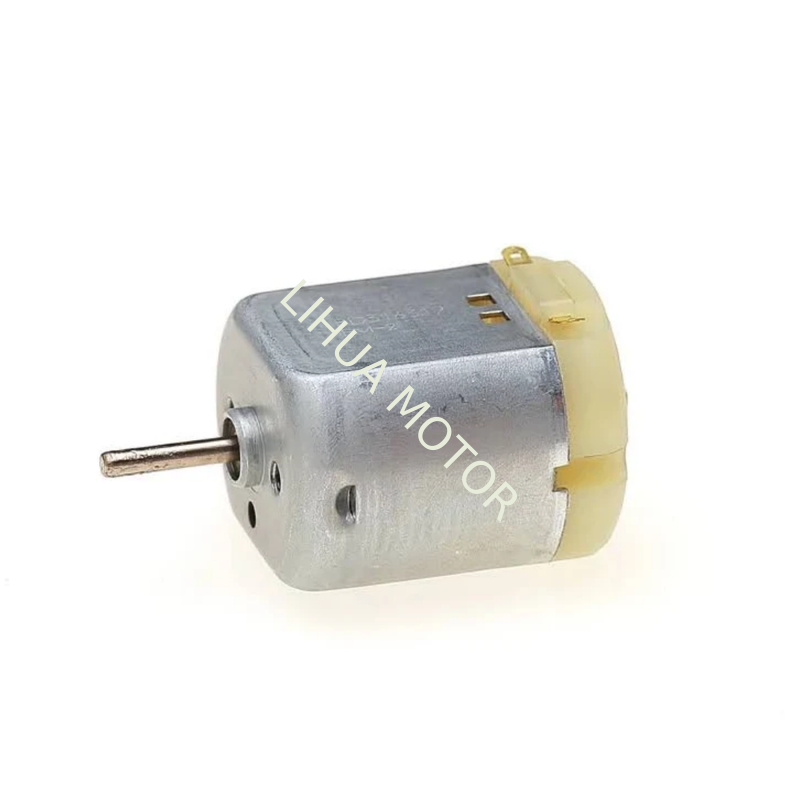

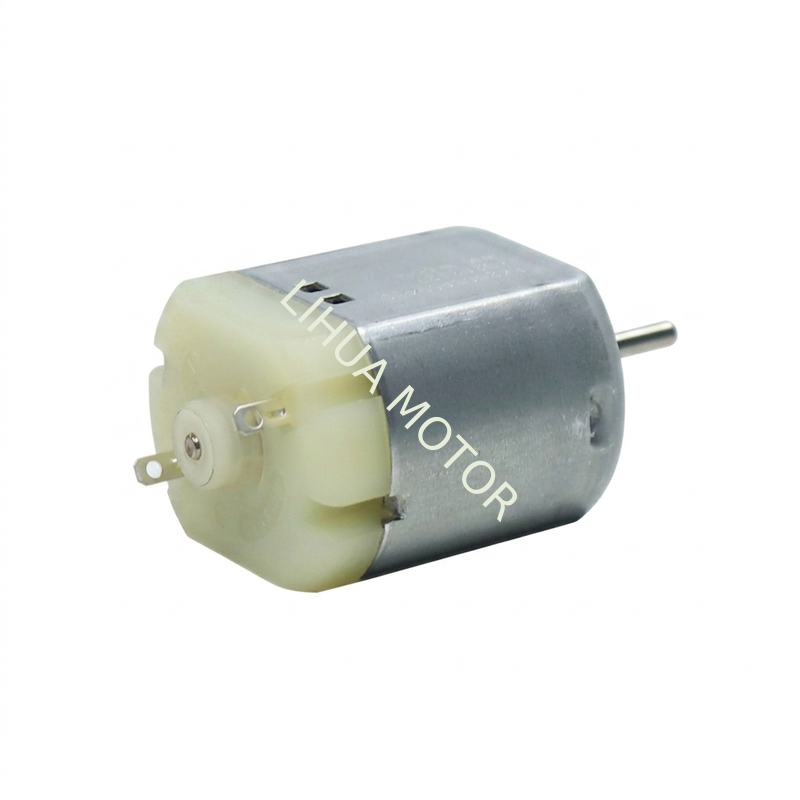

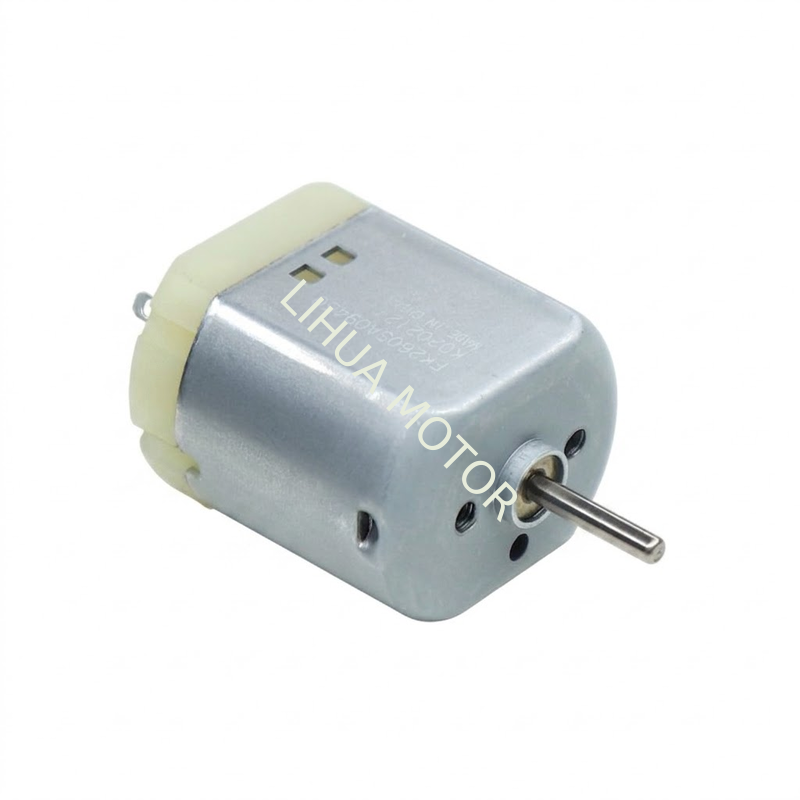

24mm Diameter FC-260 Carbon Brush DC Motor with High Speed 20000 RPM and Custom Voltage 3V-28V for Industrial Applications

The FC-260 is a 24mm diameter carbon brush DC motor series offering multiple voltage and speed configurations to meet diverse application requirements. With a compact 26.9mm body length, this motor delivers high-speed performance ranging from 14,000 to 20,000 RPM, making it ideal for applications requiring rapid rotation. The carbon brush design ensures durability for continuous operation, while multiple winding options (2670/10300/12250) allow selection of the optimal balance between speed, torque, and power consumption. Operating voltage ranges from 3V to 28V, with standard configurations at 4.5V, 12V, and 24V. Maximum output power reaches 5.99W with stall torque up to 210 g.cm.

• 24mm standard diameter with 26.9mm compact body length
• Carbon brush design for continuous duty applications
• Multiple speed options: 14000/17300/20000 RPM
• Wide voltage range: 3V-28V (customizable)
• High output power up to 5.99W
• High stall torque up to 210 g.cm
• Standard φ2mm shaft diameter
• Mounting holes: 2-φ2.3mm at 11.5mm spacing
• Custom specifications available upon request

• Industrial equipment
• Automation systems
• Power tools
• Office equipment
• Medical devices
• Automotive accessories
• Consumer electronics
• High-speed rotary applications

• FC-260 Motor
• 24mm DC Motor
• Carbon Brush Motor
• 14000 RPM Motor
• 17300 RPM Motor
• 20000 RPM Motor
• High Speed DC Motor
• 3V Motor
• 6V Motor
• 12V Motor
• 24V Motor
• Industrial Motor
• Custom Voltage Motor
• High Torque Motor
• Small DC Motor
• 24mm Diameter Motor

Q1: Can I customize voltage, speed, and torque specifications?

A: Yes, as a manufacturer, we offer full customization services for voltage (1.5V-28V range), speed, current, power, and torque. Please provide your specific requirements for a tailored solution.

Q2: What is the difference between FC-260 and FC-280?

A: Both are carbon brush motors with 24mm diameter. FC-260 has a shorter body (26.9mm) and higher speed (up to 20000 RPM). FC-280 has a longer body (30.5mm) with medium speed (4500-5300 RPM) and higher torque, ideal for continuous duty.

Q3: What is the difference between FC and FK series?

A: FC series uses carbon brushes for continuous operation and durability. FK series uses precious metal brushes for low noise, minimal sparking, and sensitive electronic applications.
