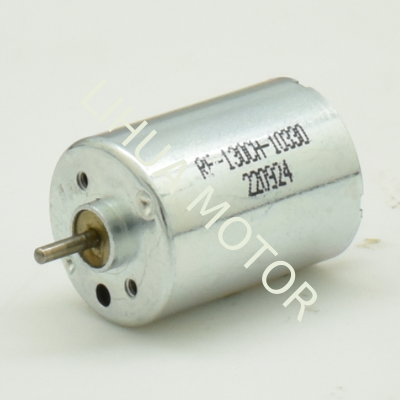

17.7mm Carbon Brush DC Motor RF-130 Series Medium Torque Reliable Operation - Factory Direct OEM/ODM

Products - Small 6V DC Motor

Highlight

17.7mm carbon brush DC motor
,
RF-130 series medium torque motor
,
6V DC motor with warranty
Motor Type

RF-130CH/RK-130SH
Motor Body Size

17.7mm*22.8mm
Motor Shaft Diameter

1.5mm
Motor Shape

Round Shaft/ D Shaft
OEM/OEM Service

Accepted
Output

0.1-4.5w
Place of Origin

Dongguan,China
Brand Name

Lihua Motor/ HCS Motor
Certification

ISO9001/Reach/ RoHs/ IATF16949
Model Number

RF-130
Document

21-RF-130-Model.pdf
Minimum Order Quantity

3000PCS
Price

Negotiation
Packaging Details

Carton
Delivery Time

35-45Days
Payment Terms

L/C,T/T
Supply Ability

12000pcs/Day

17.7mm Carbon Brush DC Motor RF-130 Series Medium Torque Reliable Operation - Factory Direct OEM/ODM

Name: 17.7mm Carbon Brush DC Motor RF-130 Series Medium Torque Reliable Operation - Factory Direct OEM/ODM
Brand: Guang Dong Lihua Mechatronics Co.,Ltd
SKU: RF-130
Price: 14.00 USD
Availability: InStock

button button

Get Price Contact Now

18mm Carbon Brush DC Motor RF-130 Series Medium Torque Reliable Operation - Factory Direct OEM/ODM

Technical Parameters

Mechanical Specifications

Body Diameter: φ17.7 mm

Body Length: 22.8 mm

Shaft Diameter: φ2.0 mm

Shaft Length: L±0.5 (customizable)

Mounting Hole Spacing: 10.2 mm / 13.2 mm / 15.8 mm

Mounting: M*0.4

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
	Range	Rated	R/min	A	m.Nm	R/min	A	W	g.cm	A
RF-130CH-12250	1-6V	6.0V	7800	0.023	0.603	6512	0.11	0.42	35.7	0.531
RF-130SH-14230	1-6V	5.0V	5600	0.025	1.07	4767	0.135	0.45	69.7	0.729
RF-130SH-18105	1-6V	5.0V	12100	0.098	1.54	10086	0.478	1.51	92.2	2.33
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm

17.7mm Carbon Brush DC Motor RF-130 Series Medium Torque Reliable Operation - Factory Direct OEM/ODM 0

Key Features

17.7mm diameter with 22.8mm body length
Carbon brush design for durability and continuous duty
Versatile speed options: 5600/7800/12100 RPM
Low voltage operation: 1V-6V (5V/6V standard)
Ultra-low current consumption (0.008A-0.025A)
High energy efficiency
Enhanced stall torque up to 92.2 g.cm
Standard φ2.0mm shaft diameter
Multiple mounting hole positions (10.2/13.2/15.8mm spacing)
Custom specifications available for OEM projects

Applications

Home appliances
Office automation
Automotive accessories
Medical devices
Consumer electronics
Industrial controls
Battery-powered equipment
Continuous-duty applications
